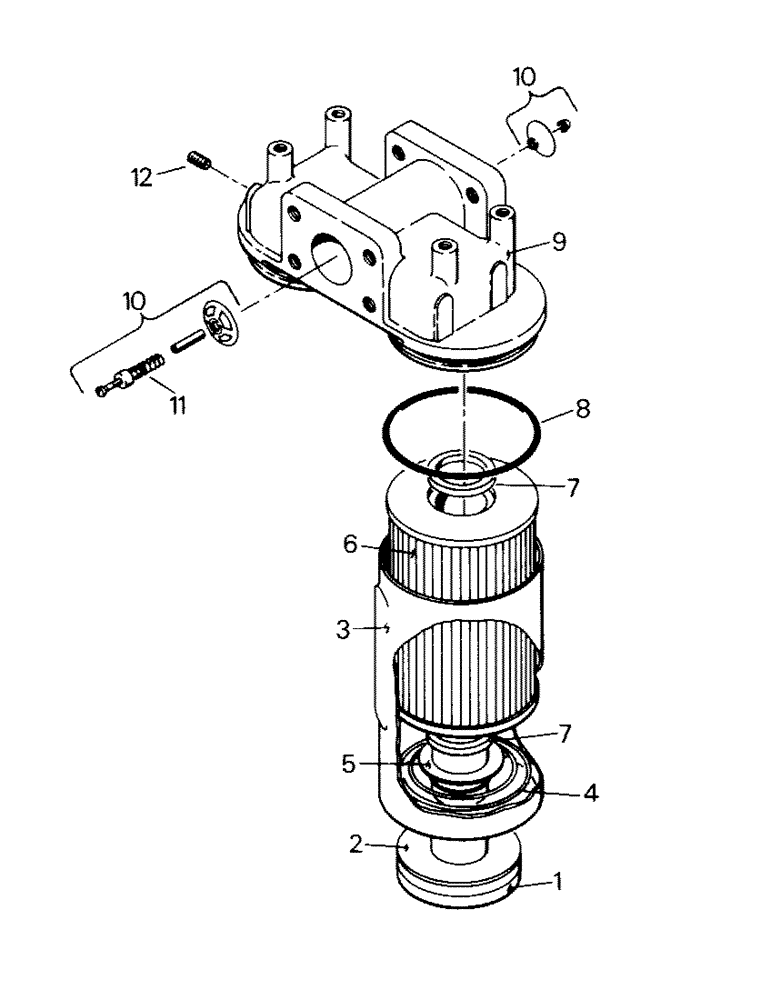

Запчасти Case IH STEIGER (08-14) - OIL FILTER ASSEMBLY (07) - HYDRAULICS

50-1389T91

FILTER

Oil Filter Assy, consists of Ref. 1-12

1шт.

1

1-6200

POST

Center Post

2шт.

2

18-96

GASKET

Center Post Gasket

2шт.

3

18-95

HOUSING

Filter Housing

2шт.

4

18-94

SPRING

Conical Spring

2шт.

5

18-93

WASHER

Backup Washer

2шт.

6

50-1911T91

HYDRAULIC OIL FILTER

Filter Element kit consists of Refs. 2, 7 & 8)

2шт.

7

18-92

SEAL

Filter Element Seal

4шт.

8

18-91

O-RING

Housing Seal

2шт.

9

NSS

NOT SOLD SEPARAT

Filter Head

1шт.

10

50-1876T91

BY-PASS VALVE

By-Pass Assy Kit consists of Ref. 11)

1шт.

11

50-1877T1

SPRING

1шт.

12

31-38

PLUG

Pipe Plug, 1/8 NPT

2шт.

These pipe plugs (Ref. 12) are included with the filter assembly but are not required for these models. See Fig. 2-18

1шт.
