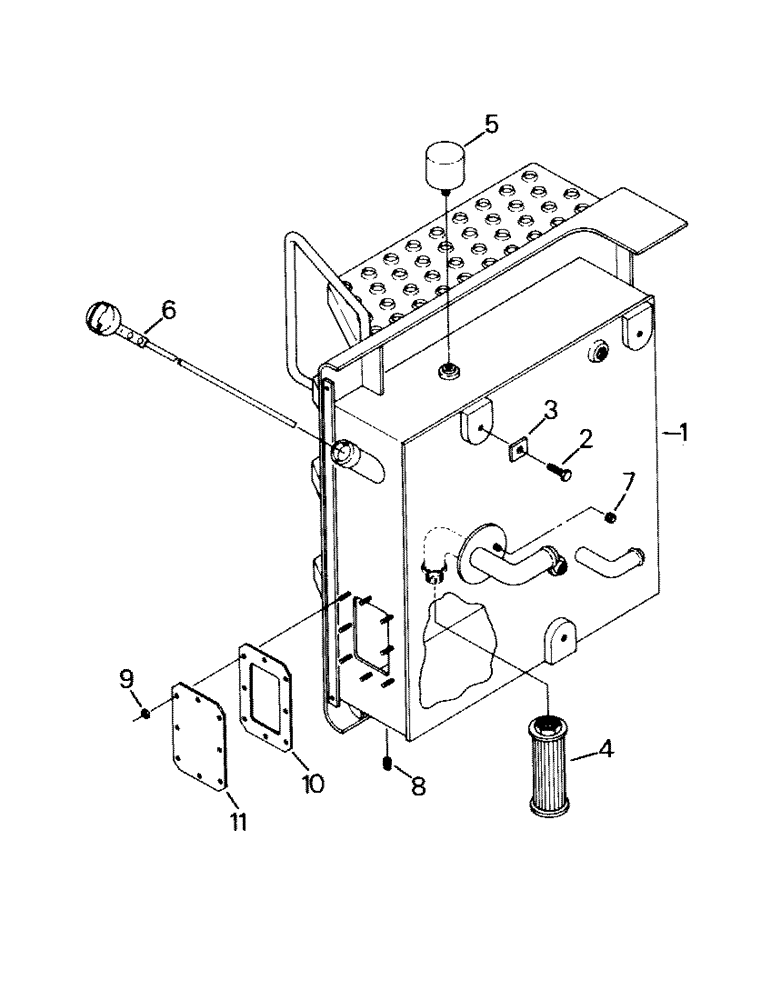

Запчасти Case IH STEIGER (08-10) - HYDRAULIC RESERVOIR & MOUNTING (07) - HYDRAULICS

1

50-1897T2

Hydraulic Reservoir

1шт.

2

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

Capscrew, 1/2 UNC x 1-1/2 G-5

3шт.

3

70-4268T1

Rectangular Washer

3шт.

4

50-1509T1

FILTER

Suction Screen

1шт.

50-2029T1

FILTER SCREEN

Suction Screen (interchangeable with P/N 50-1509T1)

1шт.

5

18-503

FILTER

Press. Filter Valve

1шт.

18-1633

BREATHER

Element

1шт.

6

47-3580

DIPSTICK

1шт.

7

9403371

CAP,37 Degree, 9/16"-18

Nut, 9/16-18 JIC 37 Deg.

1шт.

8

31-35

PLUG

Pipe Plug, 1/2 NPT

1шт.

9

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC G-B

8шт.

10

2-1914

GASKET

1шт.

11

1-4058

PLATE

Cover Plate

1шт.
