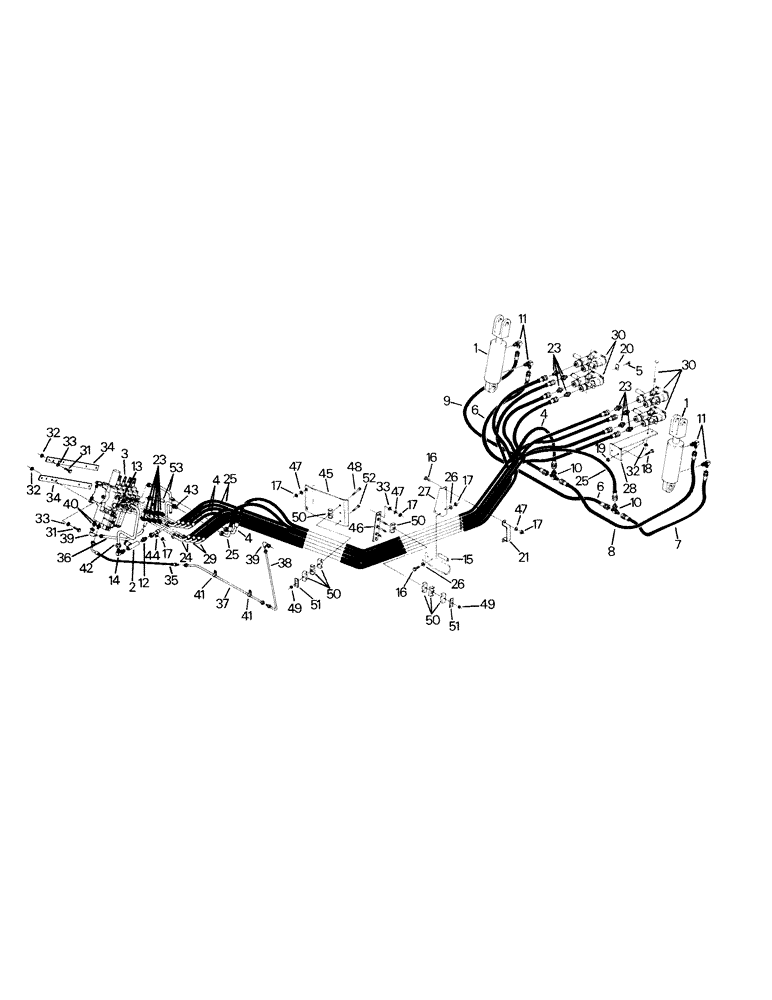

Запчасти Case IH STEIGER (08-08) - HYDRAULIC SYSTEM, REAR FRAME - WITH 3-PT HITCH (07) - HYDRAULICS

1

Hydraulic Cylinder Assy (see Fig.10-3)

2шт.

2

50-1419T1

VALVE, CONTROL

Flow Control Valve

1шт.

3

Hydraulic Valve Assy (see Fig. 8-19)

1шт.

4

31-1768

HOSE ASSY.

Hose (Qty 2 with 3-Spool Valve)

3шт.

5

19-434

BOLT,Hex, 1/4" - 20 x 0.375", Gr 5

Capscrew, 1/4 UNC x 3/8 G-5 (Qty 3 with 3-Spool Valve)

4шт.

6

31-1959

HOSE

1шт.

7

31-1795

HOSE

1шт.

8

31-1958

HOSE

1шт.

9

31-1957

HOSE

1шт.

10

31-1800

TEE,7/8"-14, 37 Degree, Blkhd

7/8-14 JIC 37 Deg. Male x 7/8-14 JIC 37 Deg. Male x 7/8-14 JIC 37deg. Male

2шт.

11

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

(8), 3/4-16 O-Ring Boss x 3/4-16 JIC 37 Deg. Male

4шт.

12

18-623

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

Fitting (12) 1-1/16 O-Ring Boss x 7/8-14 JIC 37 Deg. Male

1шт.

13

9410230

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, Pipe

Fitting (10), 7/8-14 O-Ring Boss x 7/8-14 JIC 37 Deg. Male

1шт.

14

31-454

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

(12), 1-1/16-12 O-Ring Boss x 7/8-14 JIC 37 Deg. Male

1шт.

15

50-2034T1

GROMMET

1шт.

16

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew, 3/8 UNC x 1-1/4 G-5

4шт.

17

19-78

SPECIAL NUT,3/8"-16, G5

3/8 INC G-B

9шт.

18

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

Capscrew, 1/2 UNC x 1-1/2 G-5

4шт.

19

19-81

NUT,1/2"-13, G5

1/2 UNC G-B

4шт.

20

50-2778T1

PLATE

Tab (#1)

1шт.

50-2779T1

PLATE

Tab (#2)

1шт.

50-2780T1

PLATE

Tab (#3)

1шт.

50-2781T1

PARTITION

Tab (#4)

1шт.

21

50-1308T1

BRACKET

1шт.

22

50-2307T1

TUBE

Cable Tie (not shown)

3шт.

23

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Fitting (10), 7/8-14 O-Ring, Boss x 7/8-14 JIC 37 Deg. Male (Qty 12 with 3-Spool)

16шт.

24

31-2257

HOSE

2шт.

25

31-2256

HOSE,15.88mm ID x 3505.2mm L, SAE 100R2

3шт.

26

19-224

WASHER,3/8", SAE

3/8

4шт.

27

50-1310T2

BRACE

1шт.

28

70-2483T1

MOUNTING PARTS

Coupler Mount (Left)

1шт.

70-2479T1

MOUNTING PARTS

Coupler Mount (Right)

1шт.

29

31-1767

HOSE ASSY.

Hose

2шт.

30

Coupler Assy (see Fig. 8-18)

2шт.

31

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

Capscrew, 3/8 UNC x 1-1/2 G-5

8шт.

32

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC G-B

12шт.

33

19-107

WASHER

3/8

10шт.

34

50-2973T1

PLATE

Mount Plate

2шт.

35

31-1955

HOSE ASSY.

Hose

1шт.

36

50-2004T1

TUBE ASSY.

Tube (4-Spool Valve)

1шт.

50-2052T1

TUBE

(3-Spool Valve)

1шт.

37

50-1551T2

TUBE ASSY.

Tube

1шт.

38

50-1549T2

TUBE

1шт.

39

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

9/16-18 JIC 37 Deg. Female x 9/16-18 JIC 37 Deg. Male

2шт.

40

31-1751

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Fitting (4), 7/16-18 O-Ring Boss x 9/16-18 JIC 37 Deg. Male

2шт.

41

22-1109

CLAMP

2шт.

42

50-1701T2

TUBE

(4-Spool Valve)

1шт.

50-2041T1

TUBE ASSY.

Tube (3-Spool Valve)

1шт.

43

50-1702T2

TUBE

1шт.

44

32-310

CLAMP

1шт.

45

70-4923T1

PLATE

1шт.

46

50-2989T1

BRACKET

1шт.

47

19-117

LOCK WASHER,3/8"

3/8"

6шт.

48

19-726

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 5

Capscrew, 5/16 UNC x 3-3/4 G-5

2шт.

49

19-77

NUT,5/16"-18, G5

5/16 UNC G-B (Qty 4 with 3-Spool Valve)

6шт.

50

50-2534T1

CLAMP

Half Clamp (Qty 16 with 3-Spool Valve)

20шт.

51

50-2533T1

PLATE

Cover Plate (Qty 4 with 3-Spool Valve)

6шт.

52

19-10

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 5

Capscrew, 5/16 UNC x 2-1/4 G-5 (4 Spool Valve only)

1шт.

53

Existing Parts (see Fig. 8-2)

1шт.
