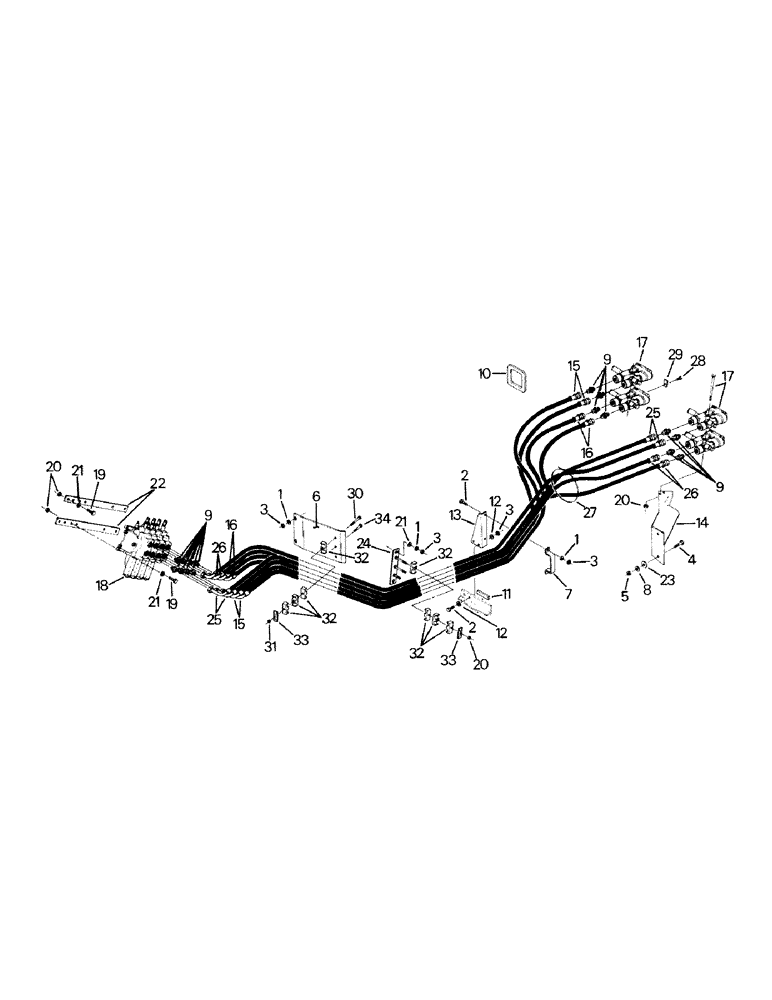

Запчасти Case IH STEIGER (08-06) - HYDRAULIC SYSTEM, REAR FRAME - WITHOUT 3-PT HITCH (07) - HYDRAULICS

1

19-117

LOCK WASHER,3/8"

3/8"

6шт.

2

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew, 3/8 UNC x 1-1/4 G-5

4шт.

3

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

8шт.

4

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

Capscrew, 1/2 UNC x 2-1/4 G-5

4шт.

5

19-81

NUT,1/2"-13, G5

1/2 UNC G-B

4шт.

6

70-4923T1

PLATE

1шт.

7

50-1308T1

BRACKET

1шт.

8

19-109

WASHER,1/2"

1/2

4шт.

9

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Fitting (10), 7/8-14 O-Ring Boss x 7/8-14 JIC 37 Deg. Male (Qty 12 with 3-Spool Valve)

16шт.

10

2-7088T1

GASKET

Grommet

2шт.

11

50-2034T1

GROMMET

1шт.

12

19-224

WASHER,3/8", SAE

3/8

4шт.

13

50-1310T2

BRACE

1шт.

14

70-3039T1

MOUNTING PARTS

Coupler Mount (Left)

1шт.

70-3040T1

MOUNTING PARTS

Coupler Mount (Right)

1шт.

15

31-1767

HOSE ASSY.

Hose (Qty 1 with 3-Spool Valve)

2шт.

16

31-1768

HOSE ASSY.

Hose (Qty 1 with 3-Spool Valve)

2шт.

17

Coupler Assy (see figure 8-18)

2шт.

18

Hydraulic Valve Assy (see figure 8-18)

1шт.

19

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

Capscrew, 3/8 UNC x 1-1/2 G-5

8шт.

20

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC G-B

12шт.

21

19-107

WASHER

3/8

10шт.

22

50-2973T1

PLATE

Mount Plate

2шт.

23

19-961

WASHER,17/32" x 1 1/2" x 1/8"

1/2 x 1-3/4 x 1/8 Thk

4шт.

24

50-2989T1

BRACKET

1шт.

25

31-2257

HOSE

2шт.

26

31-2256

HOSE,15.88mm ID x 3505.2mm L, SAE 100R2

2шт.

27

50-2037T1

STRAP

Cable Tie

3шт.

28

19-434

BOLT,Hex, 1/4" - 20 x 0.375", Gr 5

Capscrew, 1/4 UNC x 3/8 G-5 (Qty 3 with 3-Spool Valve)

4шт.

29

50-2778T1

PLATE

Tab (#1)

1шт.

50-2779T1

PLATE

Tab (#2)

1шт.

50-2780T1

PLATE

Tab (#3)

1шт.

50-2781T1

PARTITION

Tab (#4)

1шт.

30

19-726

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 5

Capscrew, 5/16 UNC x 3-3/4 G-5 (Qty 1 with 3-Spool Valve)

2шт.

31

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

4шт.

32

50-2534T1

CLAMP

Half Clamp (Qty 14 with 3-Spool Valve)

16шт.

33

50-2533T1

PLATE

Cover Plate

4шт.

34

19-10

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 5

Capscrew, 5/16 UNC x 2-1/4 G-5 (3-Spool Valve only)

1шт.
