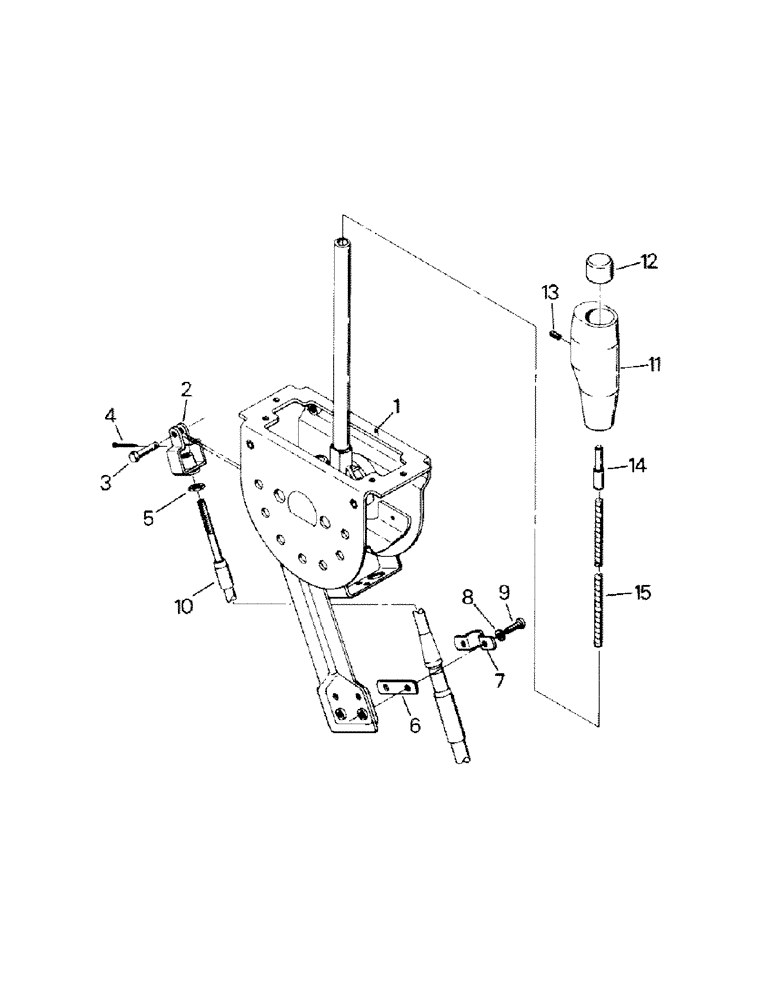

Запчасти Case IH STEIGER (08-05) - HYDRAULIC SYSTEM, STEERING CONTROLS (07) - HYDRAULICS

1

Steering Control Valve Assy (see Fig. 8-11)

1шт.

2

31-361

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

Fitting (12), 1-1/16-12 O-Ring boss x 3/4-16 JIC 37 Deg. Male

2шт.

3

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew, 3/8 UNC x 1 G-5

4шт.

4

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew, 3/8 UNC x 1-1/4 G-5

3шт.

5

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

3шт.

6

Steering Cylinder Assy (see Fig. 8-15)

2шт.

7

31-1072

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

(8), 3/4-16 O-Ring Boss x 3/4-16 JIC 37 Deg. Male x 3/4-16 JIC 37 Deg. Male

2шт.

8

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

(8), 3/4-16 O-Ring Boss x 3/4-16 JIC 37 Deg. Male

2шт.

9

50-1086T1

PIN

4шт.

10

2-3223T1

SPACER

8шт.

11

19-5619

RING, SNAP

Snap Ring

4шт.

12

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

4шт.

13

31-1276

HOSE

2шт.

14

32-184

HOSE

2шт.

15

60-4230T1

STEERING COLUMN

1шт.

16

50-2987T1

BRACKET

1шт.
