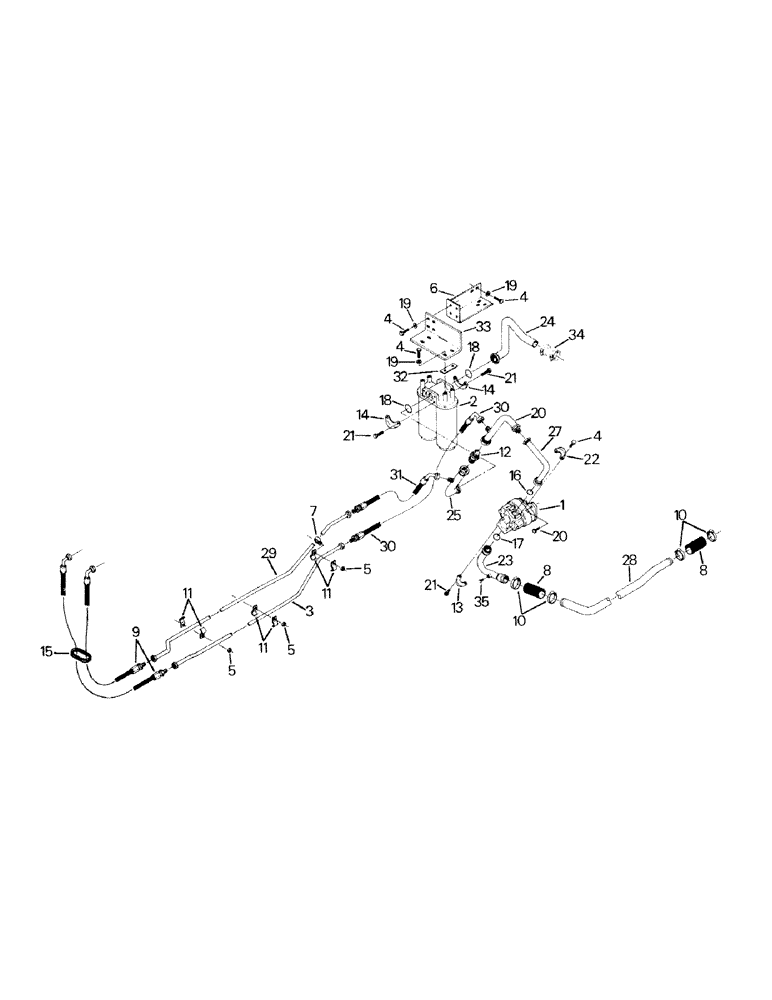

Запчасти Case IH STEIGER (08-04) - HYDRAULIC SYSTEM, OIL COOLER, CHARGE PUMP & FILTER (07) - HYDRAULICS

1

Charge Pump Assy (see Fig. 8-15)

1шт.

2

Oil Filter Assy (see Fig. 8-14)

1шт.

3

50-1385T1

TUBE

1шт.

4

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew, 3/8 UNC x 1 G-5

17шт.

5

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

5шт.

6

50-2993T1

BRACKET

1шт.

7

31-1776

MOUNTING CLIP

Clamp

1шт.

8

31-1779

HOSE,2.00" ID x 6.00"

2шт.

9

31-2723

HOSE ASSY.

Hose

2шт.

10

31-1283

MOUNTING CLIP

Clamp

4шт.

11

2-4088T1

CLAMP

10шт.

12

31-1777

VALVE

Check Valve

1шт.

13

31-1911

FLANGE

Split Flange, 1-1/2

2шт.

14

31-1220

CLAMP

Split Flange, 2

4шт.

15

31-1786

GROMMET

1шт.

16

31-1097

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

17

31-1328

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

18

31-1219

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2шт.

19

19-107

WASHER

3/8

13шт.

20

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

Capscrew, 3/8 UNC x 1-1/4 G-8

2шт.

21

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

Capscrew, 1/2 UNC x 1-1/4 G-5

12шт.

22

1-3526

COUPLING FLANGE

Split Flange, 1

2шт.

23

50-2929T1

TUBE

1шт.

24

50-2931T1

TUBE

1шт.

25

50-2932T1

TUBE

1шт.

26

50-2933T1

TUBE

1шт.

27

50-2934T1

TUBE

1шт.

28

50-2937T1

TUBE

1шт.

29

50-2940T1

TUBE

1шт.

30

31-2722

HOSE ASSY.

Hose

1шт.

31

31-2721

HOSE ASSY.

Hose

1шт.

32

50-2943T1

Bar

2шт.

33

50-2944T1

ANCHOR

Filter Mount

1шт.

34

Tube Joint Assy (see Fig. 8-23)

1шт.

35

1-6353

PLUG

(with O-Ring) (4) 7/16-20 O-Ring Boss

1шт.
