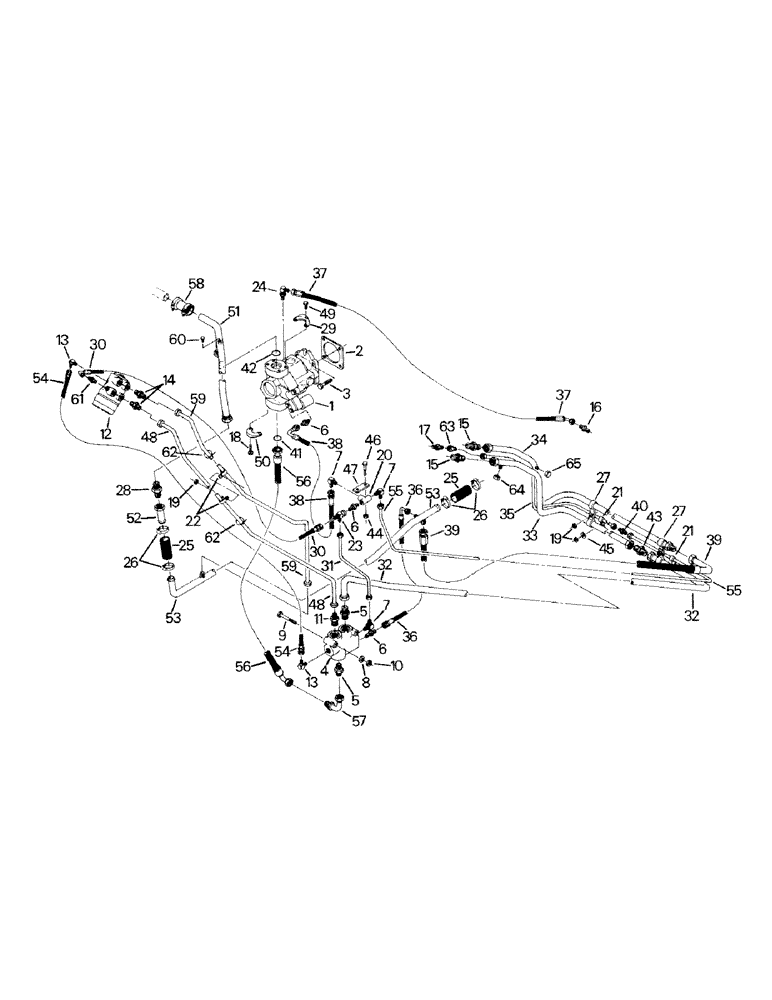

Запчасти Case IH STEIGER (08-02) - HYDRAULIC SYSTEM, CONTROL VALVE & PISTON PUMP (07) - HYDRAULICS

1

Piston Pump Assy (see Fig. 8-12)

1шт.

2

50-1388T1

GASKET

1шт.

3

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

Capscrew, 1/2 UNC x 1-1/2 G-8

4шт.

4

Priority Valve Assy (see Fig. 8-17)

1шт.

5

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Fitting (16), 1-5/16-12 O-Ring Boss x 1-5/16-12 JIC 37 Deg. Male

2шт.

6

31-1751

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Fitting (4), 7/16-20 O-Ring Boss x 9/16-18 JIC 37 Deg. Male

3шт.

7

31-1753

ELBOW,90 Degree, 9/16"-18, 37 Degree x 7/16"-20, O-Ring

(4), 7/16-20 O-Ring Boss x 9/16-18 JIC 37 Deg. Male

3шт.

8

19-700

WASHER,5/16"

5/16

2шт.

9

19-725

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

Capscrew, 5/16 UNC x 3-1/4 G-5

2шт.

10

19-508

LOCK NUT

Lock Nut, 5/16 UNC G-B

2шт.

11

31-610

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Fitting (16), 1-5/16-12 O-Ring Boss x 1-1/16-12 JIC 37 Deg. Male

1шт.

12

Steering Control Valve Assy (see figure 8-10)

1шт.

13

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

(4), 7/16-20 O-Ring Boss x 7/16-20 JIC 37 Deg. Male

2шт.

14

18-783

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

Fitting (12), 1-1/16-12 O-Ring Boss x 1-1/16-12 JIC 37 Deg. Male

2шт.

15

31-464

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

Fitting (12), 1-1/16-12 O-Ring boss x 1-5/16-12 JIC 37 Deg. Male

2шт.

16

31-382

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

Fitting, 1 NPT Male x 1-5/16-12 JIC 37 Deg. Male

1шт.

17

1-3211

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

Fitting (6), 9/16-18 O-Ring Boss x 9/16-18 JIC 37 Deg. Male

1шт.

18

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew, 3/8 UNC x 1 G-5

4шт.

19

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

5шт.

20

31-1778

VALVE

Shuttle Valve

1шт.

21

22-1109

CLAMP

2шт.

22

31-1776

MOUNTING CLIP

Clamp

2шт.

23

31-1757

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

9/16-18 JIC 37deg. Female x 9/16-18 JIC 37 Deg. Male x 9/16-18 JIC 37 Deg. Male

1шт.

24

31-479

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

(16), 1-5/16-12 O-Ring Boss x 1-5/16-12 JIC 37 Deg. Male

1шт.

25

1-4571

HOSE

2шт.

26

31-1283

MOUNTING CLIP

Clamp

4шт.

27

2-4070T1

LEVER

Clamp

8шт.

28

31-1777

VALVE

Check Valve

1шт.

29

31-1220

CLAMP

Split Flange, 2

2шт.

30

31-2744

HOSE

1шт.

31

50-1379T2

TUBE

1шт.

32

50-1381T1

TUBE

1шт.

33

50-1382T1

TUBE

1шт.

34

50-1965T1

TUBE

1шт.

35

50-3001T1

TUBE

1шт.

36

31-1994

HOSE ASSY.

Hose

1шт.

37

31-2724

HOSE ASSY.

Hose

1шт.

38

31-1764

HOSE ASSY.

Hose

1шт.

39

31-1874

HOSE ASSY.

Hose

1шт.

40

31-1788

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Fitting, 9/16-18 JIC 37 Deg. Male x 9/16-18 JIC 37 Deg. Male

1шт.

41

31-1097

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

42

31-1219

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

43

31-565

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

Fitting, 1-5/16-12 JIC 37 Deg. Male x 1-5/16-12 JIC 37 Deg. Male

1шт.

44

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

2шт.

45

19-107

WASHER

3/8

2шт.

46

19-719

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Capscrew, 1/4 UNC x 2 G-5

2шт.

47

50-1572T1

Mount

1шт.

48

50-2983T1

TUBE

1шт.

49

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

Capscrew, 1/2 UNC x 1-1/4 G-5

4шт.

50

1-3526

COUPLING FLANGE

Split Flange, 1

2шт.

51

50-2930T1

TUBE

1шт.

52

50-2935T1

TUBE

1шт.

53

50-2936T1

TUBE ASSY.

Tube

1шт.

54

31-2745

HOSE ASSY.

Hose

1шт.

55

50-2939T1

TUBE

1шт.

56

31-2720

HOSE ASSY.

Hose

1шт.

57

31-1787

ADAPTER,90 Degree, 37 Degree Fl, 1 5/16"-12 Male x 1 5/16"-12 Fem

Elbow, 1-5/16-12 JIC 37 Deg. Female x 1-5/16-12 JIC 37 Deg. Male

1шт.

58

Tube Joint Assy (see figure 8-22)

1шт.

59

50-2984T1

TUBE

1шт.

60

1-6353

PLUG

(with O-Ring) (4), 7/16-20 O-Ring Boss

1шт.

61

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

Fitting (4) 7/16-20 O-Ring boss x 7/16-20 JIC 37 Deg. Male

1шт.

62

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

8шт.

63

31-2685

FITTING

Orificed Adapter

1шт.

64

9403371

CAP,37 Degree, 9/16"-18

Nut, 9/16-18 JIC 37 Deg.

1шт.

65

9403373

CAP,37 Degree, 7/8"-14

Nut, 7/8-14 JIC 37 Deg.

1шт.
