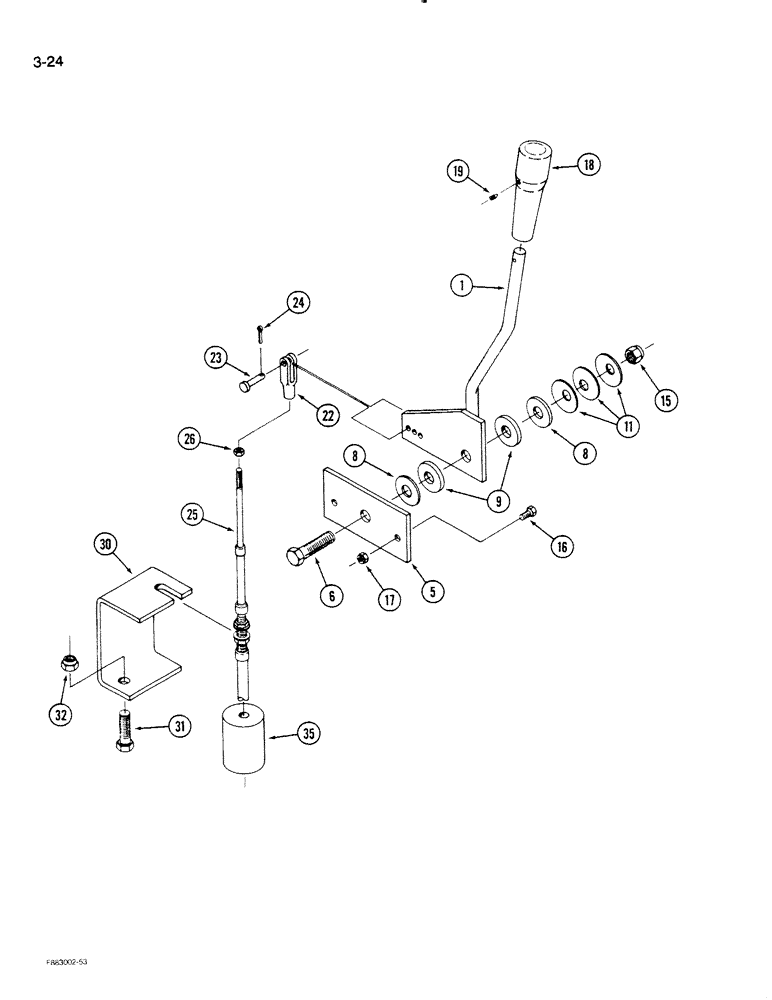

Запчасти Case IH STEIGER (3-024) - THROTTLE CONTROLS, ROPS (03) - FUEL SYSTEM

1

60-5850T1

LEVER ASSY.

LEVER - throttle control

1шт.

5

60-5851T1

LARGE PLATE

PLATE - mounting, throttle control

1шт.

6

19-269

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

1шт.

8

19-109

WASHER,1/2"

- flat, 1/2 x 1-3/8 x 7/64 inch

2шт.

9

54-294

THRUST WASHER

- flat, 1/2 x 1-3/8 x 1/8 inch

2шт.

11

19-5648

SPRING WASHER

- spring, conical

3шт.

15

19-653

LOCK NUT

- hex, lock, 1/2 inch NC

1шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

19-1081

LOCK NUT

- hex, lock, 1/4 inch NC

2шт.

18

60-2050T3

BALL KNOB

KNOB - control lever

1шт.

19

19-5798

SET SCREW

SCREW - set, No. 8 NC x 5/8 inch

1шт.

22

117824

YOKE

- clevis, No. 10 NF

1шт.

23

19-874

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 x 1/2 inch

1шт.

24

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

25

60-5759T1

CABLE

- throttle, Includes Ref: 26

1шт.

26

19-308

NUT,#10 - 32

- hex, No. 10 NF

1шт.

30

60-5848T1

BRACKET

- cable mounting

1шт.

31

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

1шт.

32

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC

1шт.

35

60-3705T1

FOAM

- seal, floorboards

1шт.
