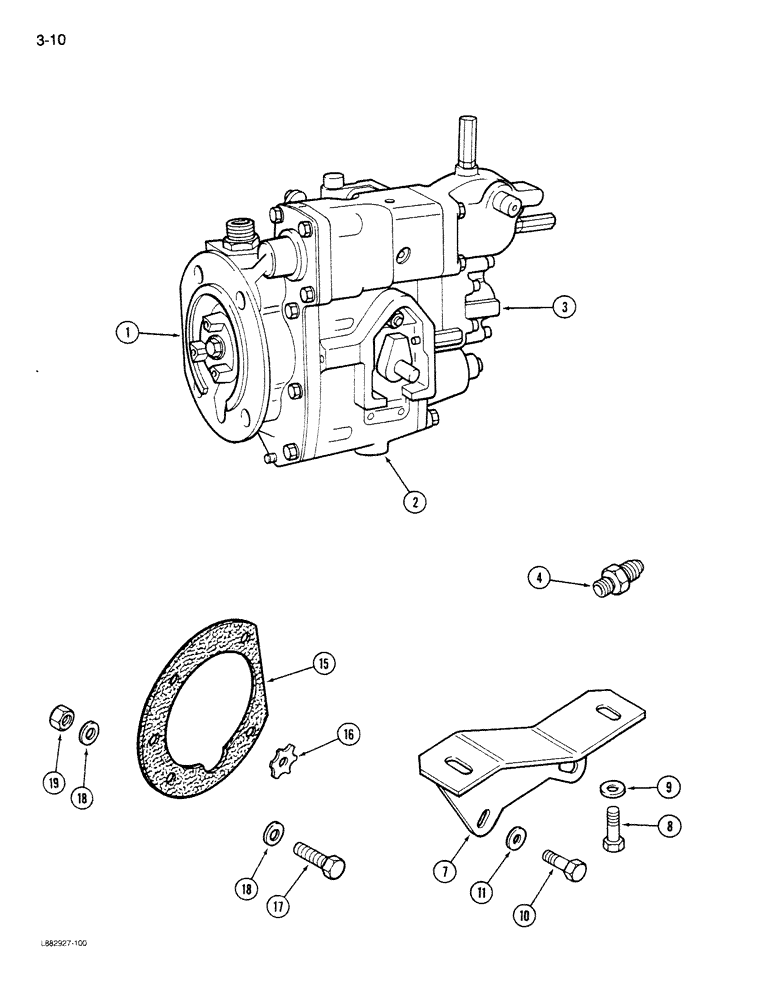

Запчасти Case IH STEIGER (3-010) - FUEL INJECTION PUMP, L-10 ENGINE (03) - FUEL SYSTEM

1

A71011

SCREW

PUMP ASSEMBLY, fuel injection, Includes Ref: 2, 3

1шт.

This part must be ordered from J.I. Case.

1шт.

2

REF

INSTRUCTION

HOUSING - pump, fuel injection (See Figure: 3-12)

1шт.

3

REF

INSTRUCTION

GEAR - pump, fuel injection (See Figure: 3-14)

1шт.

4

203850

SHIM

- fuel supply

1шт.

7

3040977

BRACE

- fuel pump

1шт.

8

3335044

CAP

BOLT - hex, M10 x 1.50 x 25 mm

2шт.

9

3003163

WASHER

- flat, 10 mm

2шт.

10

S167A

SCREW

BOLT - hex, 1/4 x 7/8 inch

2шт.

11

3821657

WASHER

- flat, 1/4 inch

2шт.

15

3048341

GASKET

- fuel pump

1шт.

16

3046200

SPIDER ASSY.

SPIDER - jaw coupling

1шт.

17

3025852

HOSE

BOLT - hex, M10 x 1.50 x 45 mm

4шт.

18

3009330

WASHER

- flat, 10 mm

8шт.

19

3044360

NUT

- hex, 10 mm

4шт.
