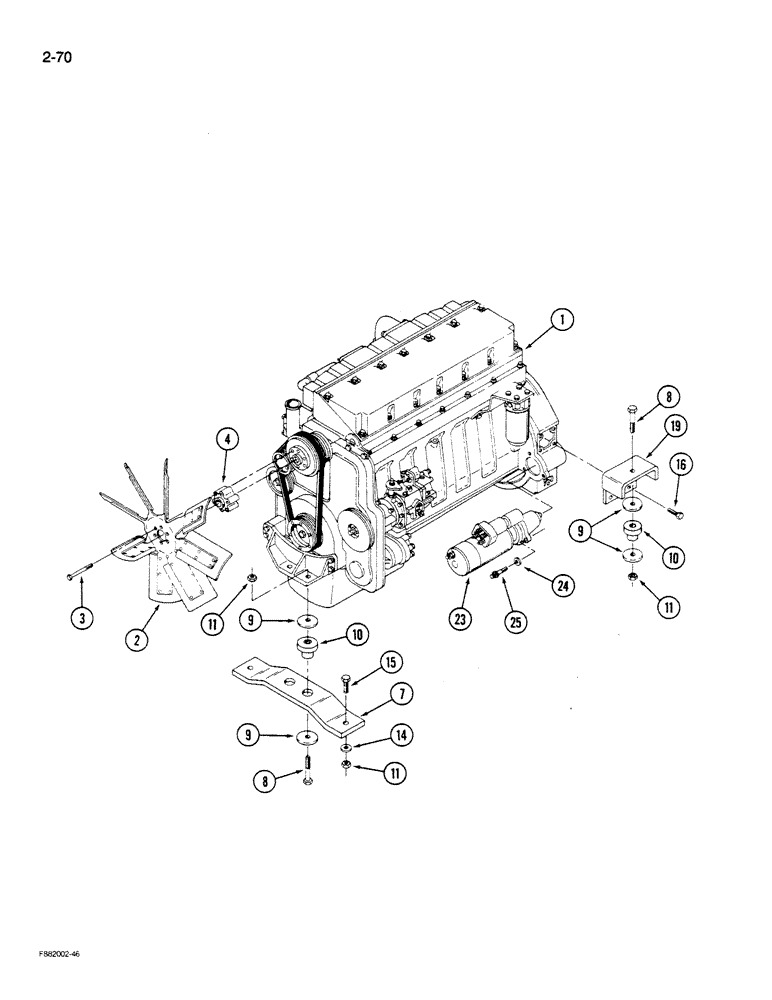

Запчасти Case IH STEIGER (2-070) - ENGINE MOUNTING, L-10 ENGINE (02) - ENGINE

1

90-6681T1

ENGINE ASSEMBLY - LT 10A, 235 horsepower

1шт.

1

90-6403T1

ENGINE ASSEMBLY

- LTA 10A, 280 horsepower

1шт.

2

90-5975T1

FAN

- engine, 235 horsepower

1шт.

2

90-4672T1

FAN

- engine, 280 horsepower

1шт.

3

19-1119

BOLT,3/8" - 16 x 3 1/2", Gr 8

- hex, 3/8 NC x 3-1/2 inch, Grade 8

6шт.

4

90-5850T1

SPACER

- fan

1шт.

7

90-6399T1

MOUNTING PARTS

MOUNT - engine, front

1шт.

8

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

4шт.

9

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

- flat, 3/4 x 3-3/4 x 3/16 inch

8шт.

10

47-4172

SHOCK ABSORBER

MOUNT - isolator, rubber

4шт.

11

19-85

LOCK NUT

- hex, lock, 3/4 inch NC

6шт.

14

19-112

WASHER,3/4"

- flat, 3/4 x 2 x 9/64 inch

2шт.

15

19-67

SCREW,Hex, 3/4"-10 x 2 1/4", G5

BOLT - hex, 3/4 NC x 2-1/4 inch

2шт.

16

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

- hex, 5/8 NC x 1-1/2 inch, Grade 8

8шт.

19

70-4737T1

MOUNTING PARTS

MOUNT - engine, right side

1шт.

19

70-4736T1

MOUNTING PARTS

MOUNT - engine, left side

1шт.

23

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figures: 4-36 through 4-42)

1шт.

24

19-912

WASHER

- flat, 5/8 x 1-3/16 x 3/16 inch

3шт.

25

19-907

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

BOLT - 12 point, 5/8 NC x 2 inch, Grade 8

3шт.
