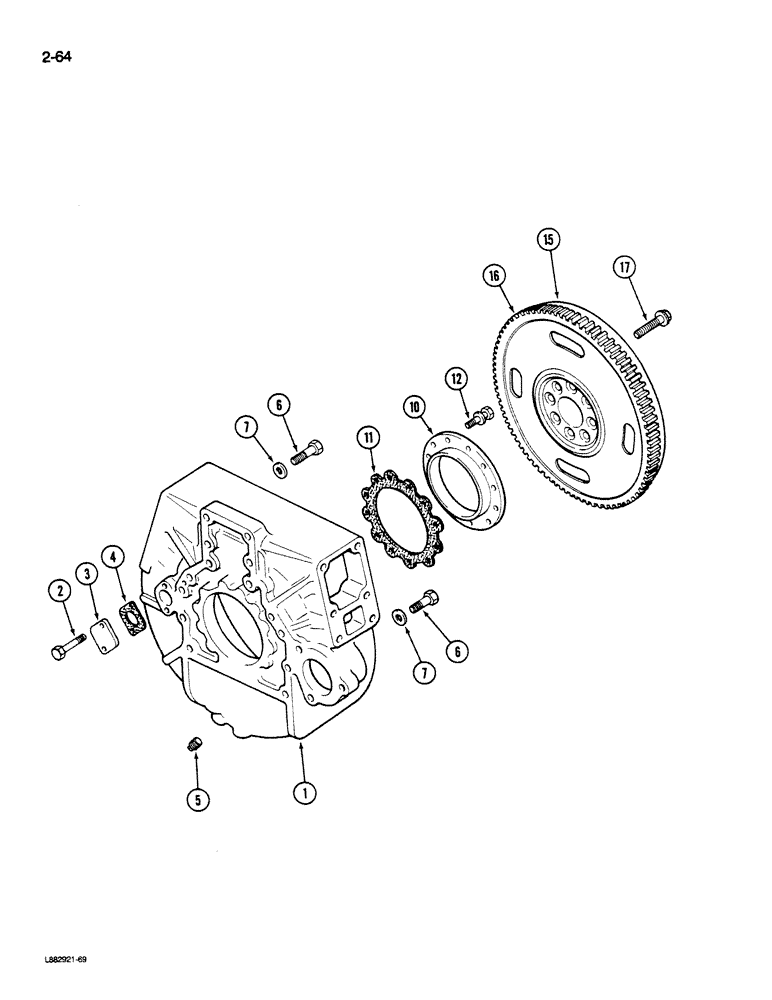

Запчасти Case IH STEIGER (2-064) - FLYWHEEL AND HOUSING, L-10 ENGINE (02) - ENGINE

1

3036244

HOUSING

- flywheel

1шт.

2

3025802

CAP

BOLT - hex, M8 x 1.25 x 20 mm

2шт.

3

3026135

COVER

PLATE - cover, flywheel housing

1шт.

4

3026134

GASKET

- cover plate

1шт.

5

3042004

PLUG

- threaded

1шт.

6

3022148

CAP

BOLT - hex, M16 x 2.0 x 55 mm

12шт.

7

127316

WASHER

- flat, 16 mm

12шт.

3801628

KIT

SEAL KIT - oil, Includes Ref: 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

11

3600469

GASKET

- oil seal carrier

1шт.

12

3821783

CAP,Hex, M8 x 1.25 x 20mm, W/ Wshr

BOLT - hex with washer, M8 x 1.25 x 20 mm

12шт.

3032685

PLATE ASSY.

FLYWHEEL ASSEMBLY - engine, Includes Ref: 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

FLYWHEEL - engine

1шт.

16

4797

GEAR, RING

GEAR - ring, flywheel

1шт.

17

3821676

CAP,Hex, M14 x 1.5 x 35mm

BOLT - hex, M14 x 1.50 x 35 mm

8шт.
