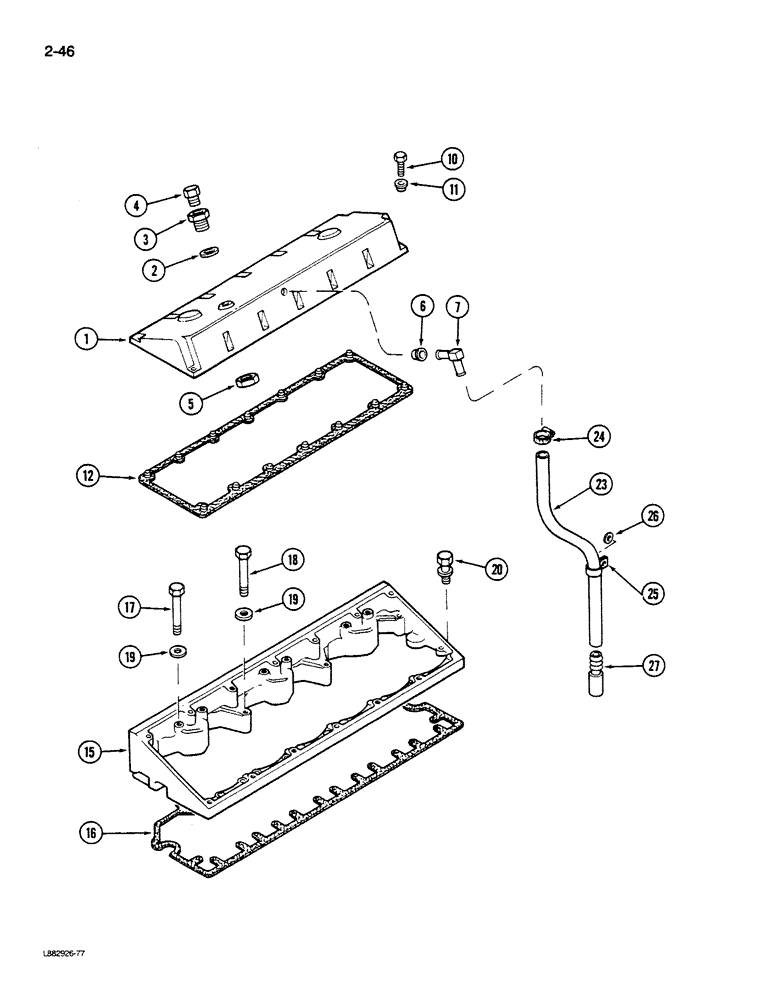

Запчасти Case IH STEIGER (2-046) - CYLINDER HEAD COVER, L-10 ENGINE (02) - ENGINE

1

3818924

COVER

ASSEMBLY - cylinder head, Includes Ref: 2-7

1шт.

2

3035228

SPARE PART

SEAL - cover

1шт.

3

3818150

PLATE

ADAPTER - plain

1шт.

4

3040995

PLUG

ASSEMBLY - cover

1шт.

NSS

NOT SOLD SEPARAT

PLUG - threaded

1шт.

3042401

SEAL

- plug

1шт.

5

3818151

NUT

- hex

1шт.

6

3042401

SEAL

- plug

1шт.

7

3047134

TUBE

- breather

1шт.

10

3335042

CAP

BOLT - hex

14шт.

11

3034856

ISOLATOR

- noise

14шт.

12

3034855

GASKET

- cover

1шт.

15

3037628

ROD

- rocker lever

1шт.

16

3039114

GASKET

- housing, rocker lever

1шт.

17

3018074

CAP

BOLT - hex, M10 x 1.50 x 125 mm

6шт.

18

3009317

CAP

BOLT - hex, M10 x 1.50 x 100 mm

4шт.

19

3009330

WASHER

- flat, 10 mm

10шт.

20

3821846

CAP,Hex, M10 x 1.5 x 30mm

BOLT - hex, M10 x 1.50 x 35 mm

14шт.

23

NLS

NO LONGER SERVICED

- plain

1шт.

24

210753

CLIP

CLAMP - hose

1шт.

25

107460

CLIP

CLAMP - hose mounting

1шт.

26

3009330

WASHER

- flat, 10 mm

1шт.

27

3819475

TUBE

- breather

1шт.
