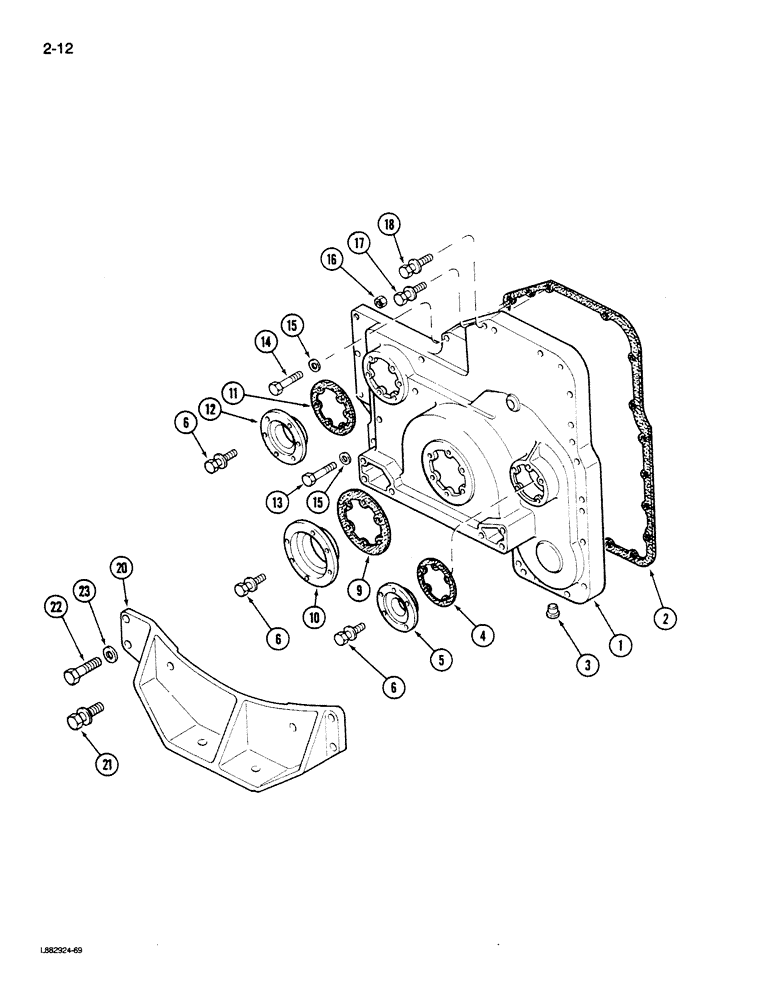

Запчасти Case IH STEIGER (2-012) - FRONT GEAR COVER, L-10 ENGINE (02) - ENGINE

1

3818946

COVER

- front gear

1шт.

2

3037349

GASKET

- gear cover

1шт.

3

3037536

PLUG

ASSEMBLY - threaded

1шт.

4

3600471

GASKET

- carrier

1шт.

5

3801625

KIT

SEAL KIT - carrier

1шт.

6

3821783

CAP,Hex, M8 x 1.25 x 20mm, W/ Wshr

BOLT - hex with washer, M8 x 1.25 x 20 mm

17шт.

9

3600467

GASKET

- carrier

1шт.

10

3801627

KIT

SEAL KIT - carrier

1шт.

11

3600468

GASKET

- carrier

1шт.

12

3801624

SEAL KIT

- carrier

1шт.

13

3017500

SCREW

BOLT - hex, M10 x 1.50 x 80 mm

1шт.

14

3018027

CAP

BOLT - hex, M10 x 1.50 x 50 mm

4шт.

15

3009330

WASHER

- flat, 10 mm

5шт.

16

3044360

NUT

- hex, 10 mm

3шт.

17

3821846

CAP,Hex, M10 x 1.5 x 30mm

BOLT - hex, M10 x 1.50 x 30 mm

1шт.

18

3821847

CAP,Hex, M10 x 1.5 x 60mm, W/ Wshr

BOLT - hex with washer, M10 x 1.50 x 60 mm

12шт.

20

3600772

SUPPORT

- engine, front

1шт.

21

3821846

CAP,Hex, M10 x 1.5 x 30mm

BOLT - hex, M10 x 1.50 x 30 mm, front engine support

2шт.

22

3020093

CAP

BOLT - hex, M10 x 1.50 x 170 mm, front engine support

4шт.

23

3009330

WASHER

- flat, 10 mm, front engine support

4шт.
