(6-100) - WHEELS, HUB BOLTED DUALS

Запчасти Case IH STEIGER (6-100) - WHEELS, HUB BOLTED DUALS (06) - POWER TRAIN

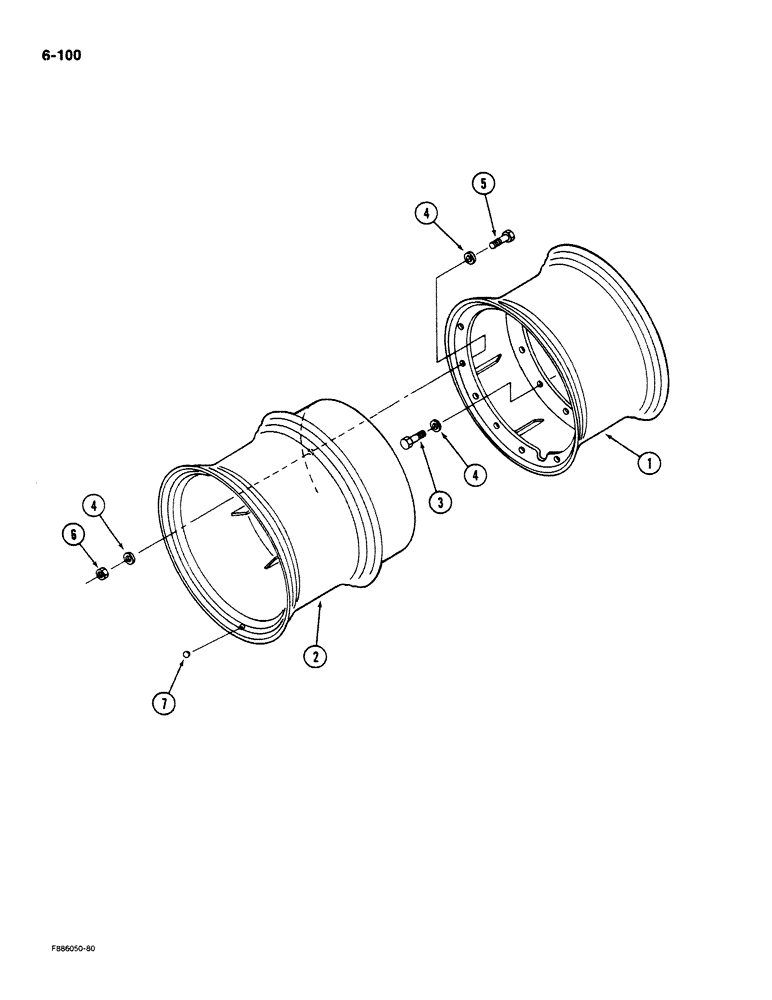

Схема запчастей Case IH STEIGER - (6-100) - WHEELS, HUB BOLTED DUALS (06) - POWER TRAIN
4
3
5
1
2
6
4
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

30-1295T1

RIM

WHEEL - inner, 20.8 x 38, 18 inch width

4шт.

1

30-1189T1

RIM

WHEEL - inner, 23.1 x 34, 20 inch width

4шт.

1

30-1056T2

RIM

WHEEL - inner, 23.1 x 34 inch, 20 inch width, with reinforced bead

4шт.

1

30-1190T1

RIM

WHEEL - inner, 24.5 x 32, 21 inch width

4шт.

1

2-2102T2

RIM

WHEEL - inner, 24.5 x 32 inch, 21 inch width, with reinforced bead

4шт.

1

30-1223T1

RIM

WHEEL - inner, 24.5 x 32, 24 inch width

4шт.

1

30-1221T1

RIM

WHEEL - inner, 24.5 x 32 inch, 24 inch width, with reinforced bead

4шт.

1

30-1337T1

RIM

WHEEL - inner, 20.8 x 42, 18 inch width

4шт.

2

30-1291T1

RIM

WHEEL - dual, 20.8 x 38, 18 width, 8 inch dual spacing

4шт.

2

30-1191T1

RIM

WHEEL - dual, 23.1 x 34, 20 width, 8 inch dual spacing

4шт.

2

30-1051T1

RIM

WHEEL - dual, 23.1 x 34, 20 width, 8 inch dual spacing, with reinforced bead

4шт.

2

30-1192T1

RIM

WHEEL - dual, 24.5 x 32, 21 width, 8 inch dual spacing

4шт.

2

30-1193T1

RIM

WHEEL - dual, 24.5 x 32, 21 width, 4 inch dual spacing

4шт.

2

30-1032T1

RIM

WHEEL - dual, 24.5 x 32, 21 width, 8 inch dual spacing, with reinforced bead

4шт.

2

2-2434T2

RIM

WHEEL - dual, 24.5 x 32, 21 width, 4 inch dual spacing, with reinforced bead

4шт.

2

30-1217T1

RIM

WHEEL - dual, 24.5 x 32, 24 width, 8 inch dual spacing

4шт.

2

30-1222T1

RIM

WHEEL - dual, 24.5 x 32, 24 width, 4 inch dual spacing

4шт.

2

30-1215T1

RIM

WHEEL - dual, 24.5 x 32, 24 width, 8 inch dual spacing, with reinforced bead

4шт.

2

30-1216T1

RIM

WHEEL - dual, 24.5 x 32, 24 width, 4 inch dual spacing, with reinforced bead

4шт.

2

30-1338T1

RIM

WHEEL - dual, 20.8 x 42, 18 width, 8 inch dual spacing

4шт.

3

26053R1

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

40шт.

4

19-2975

WASHER

- flat, hardened

136шт.

5

25738R1

BOLT,Hex, 7/8" - 9 x 3", Gr 8

- hex, 7/8 NC x 3 inch, Grade 8

48шт.

6

19-457

NUT,7/8"-9, G5

- hex, 7/8 inch NC

48шт.

7

22-521

PLUG

- hole

8шт.
