Запчасти Case IH STEIGER (6-098) - WHEELS, MOUNTED ON INNER AND OUTER HUBS, K592 BAR AXLE (06) - POWER TRAIN

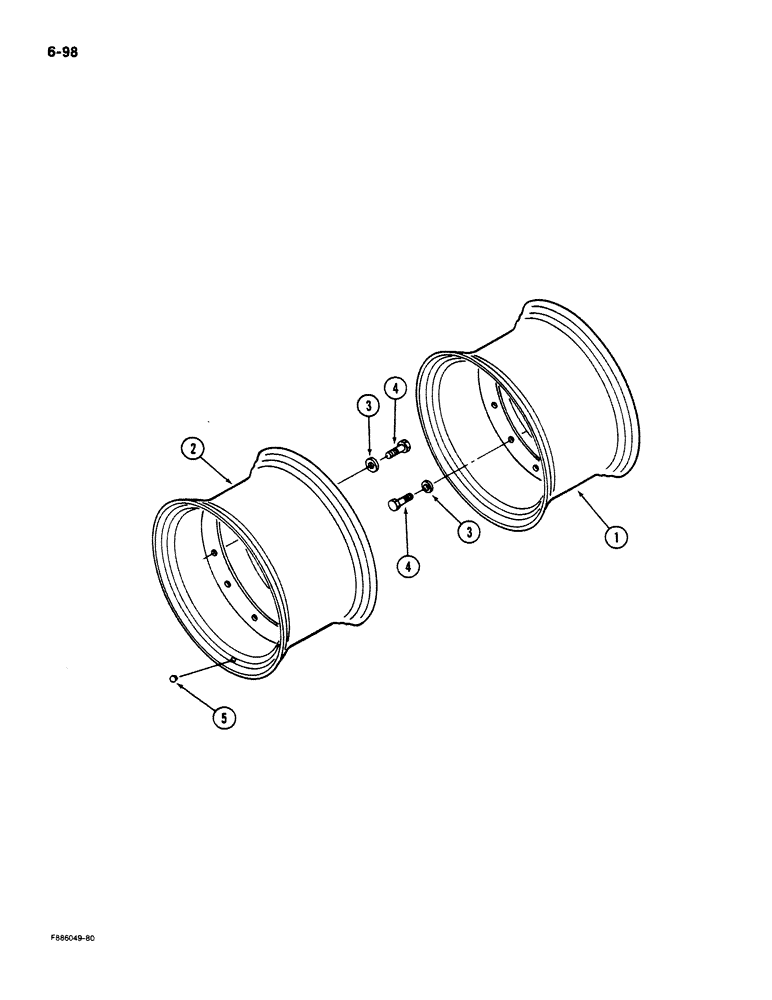

Схема запчастей Case IH STEIGER - (6-098) - WHEELS, MOUNTED ON INNER AND OUTER HUBS, K592 BAR AXLE (06) - POWER TRAIN
1
5
2
4
3
3
4

Артикул

Название

Примечание

Количество

1

30-1110T1

RIM

WHEEL - inner, 18.4 x 38 inch, 16 inch width

4шт.

1

30-1112T1

RIM

WHEEL - inner, 18.4 x 38 inch, 18 inch width

4шт.

1

30-1358T1

RIM

WHEEL - inner, 18.4 x 42 inch, 16 inch width

4шт.

1

30-1112T1

RIM

WHEEL - inner, 20.8 x 38 inch, 18 inch width

4шт.

1

30-1313T1

RIM

WHEEL - inner, 20.8 x 42 inch, 18 inch width

4шт.

1

30-1124T1

RIM

WHEEL - inner, 23.1 x 34 inch, 20 inch width

4шт.

1

20-293

RIM

WHEEL - inner, 24.5 x 32 inch, 21 inch width

4шт.

1

30-1161T1

RIM

WHEEL - inner, 24.5 x 32 inch, 24 inch width

4шт.

2

30-1110T1

RIM

WHEEL - dual, 18.4 x 38 inch, 16 inch width

4шт.

2

30-1112T1

RIM

WHEEL - dual, 18.4 x 38 inch, 18 inch width

4шт.

2

30-1358T1

RIM

WHEEL - dual, 18.4 x 42 inch, 16 inch width

4шт.

2

30-1112T1

RIM

WHEEL - dual, 20.8 x 38 inch, 18 inch width

4шт.

2

30-1313T1

RIM

WHEEL - dual, 20.8 x 42 inch, 18 inch width

4шт.

2

30-1124T1

RIM

WHEEL - dual, 23.1 x 34 inch, 20 inch width

4шт.

2

20-293

RIM

WHEEL - dual, 24.5 x 32 inch, 21 inch width

4шт.

2

30-1161T1

RIM

WHEEL - dual, 24.5 x 32 inch, 24 inch width

4шт.

3

19-2975

WASHER

- flat, hardened

80шт.

4

26053R1

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

80шт.

5

22-521

PLUG

- hole

8шт.

Выбрано товаров: 19
