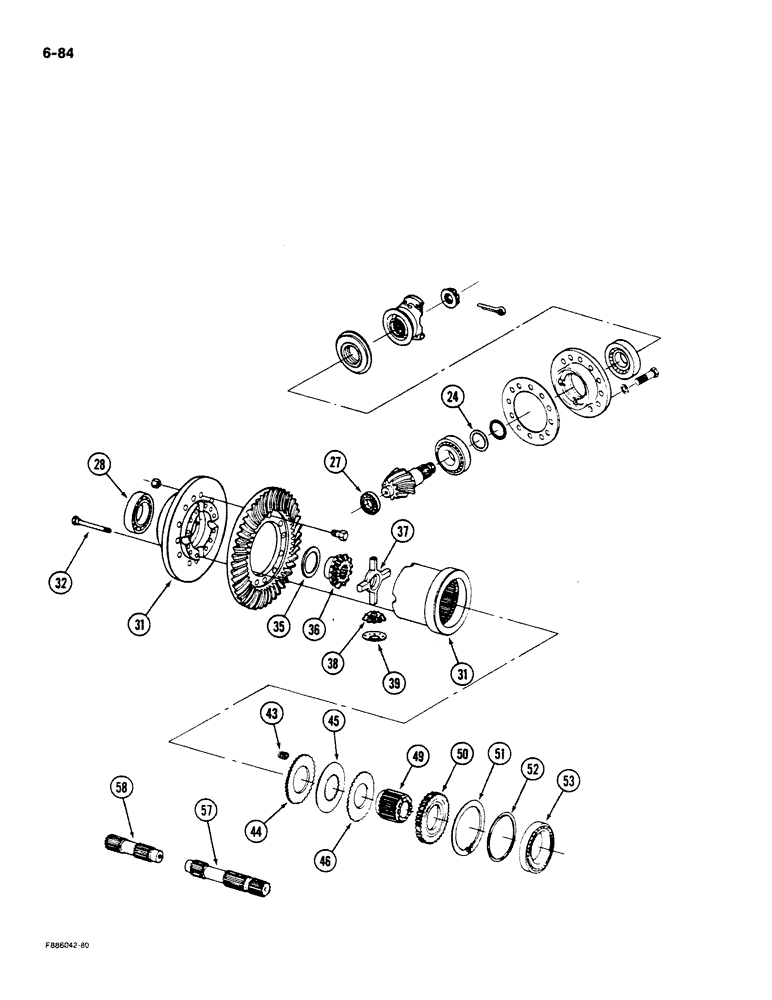

Запчасти Case IH STEIGER (6-084) - AXLE ASSEMBLY, DIFFERENTIAL, K592 BAR AXLE (06) - POWER TRAIN

90-6975T91

AXLE, FRONT

AXLE ASSEMBLY - front, without differential lock, Includes Ref: 24-58

1шт.

90-6976T91

AXLE, REAR

AXLE ASSEMBLY - rear, without differential lock, Includes Ref: 24-58

1шт.

90-6977T91

CENTER AXLE

AXLE ASSEMBLY - front, with differential lock, Includes Ref: 24-58

1шт.

90-6978T91

AXLE

ASSEMBLY - rear, with differential lock, Includes Ref: 24-58

1шт.

24

33-1202T1

SPACER

- bearing, 6.90 mm

1шт.

24

33-1203T1

SPACER

- bearing, 7.00 mm

1шт.

24

33-1204T1

SPACER

- bearing, 7.02 mm

1шт.

24

33-1205T1

SPACER

- bearing, 7.04 mm

1шт.

24

33-1206T1

SPACER

- bearing, 7.06 mm

1шт.

24

33-1207T1

SPACER

- bearing, 7.08 mm

1шт.

24

33-1208T1

SPACER

- bearing, 7.10 mm

1шт.

24

33-1209T1

SPACER

- bearing, 7.20 mm

1шт.

24

33-1210T1

SPACER

- bearing, 7.32 mm

1шт.

24

33-1211T1

SPACER

- bearing, 7.44 mm

1шт.

24

33-1212T1

SPACER

- bearing, 7.56 mm

1шт.

24

33-1213T1

SPACER

- bearing, 7.68 mm

1шт.

24

33-1214T1

SPACER

- bearing, 7.80 mm

1шт.

24

33-1215T1

SPACER

- bearing, 7.92 mm

1шт.

27

33-1219T1

ROLLER BEARING,35 mm ID x 80 mm OD x 21 mm

- roller

1шт.

28

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

BEARING - roller

1шт.

33-1222T91

BOX

CASE ASSEMBLY - differential halves, 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

CASE - differential halves (See note)

1шт.

32

33-1221T1

CAPSCREW,Hex, M14 x 1.5 x 140mm, Cl 10.9

BOLT - hex, M14 x 1.5 x 140 mm, Grade 10.9

12шт.

35

33-1225T1

SPACER

- gear wear

2шт.

36

33-1226T1

GEAR

- side

2шт.

37

33-1227T1

DIFF. SPIDER

SPIDER - pinion gear

1шт.

38

33-1228T1

GEAR

- pinion

4шт.

39

33-1229T1

SPACER

- coned, gear wear

4шт.

43

33-1230T1

SPRING

- compression (With differential lock)

17шт.

44

33-1231T1

DISC

DISK - thrust (With differential lock)

1шт.

45

33-1232T1

CLUTCH DISC

DISK - inner (With differential lock)

15шт.

46

33-1233T1

DISC

DISK - outer (With differential lock)

14шт.

49

33-1234T1

HUB

- splined (With differential lock)

1шт.

50

33-1235T1

LARGE PLATE

PLATE - backing (With differential lock)

1шт.

51

1-6727

RING, SNAP

RING - snap

1шт.

52

33-1238T1

SHAFT

WASHER - bearing spacer

1шт.

53

33-1237T1

TAPERED BEARING

- taper roller

1шт.

57

33-1238T1

SHAFT

- axle, long inner

1шт.

58

33-1239T1

SHAFT

- axle, short inner

1шт.
