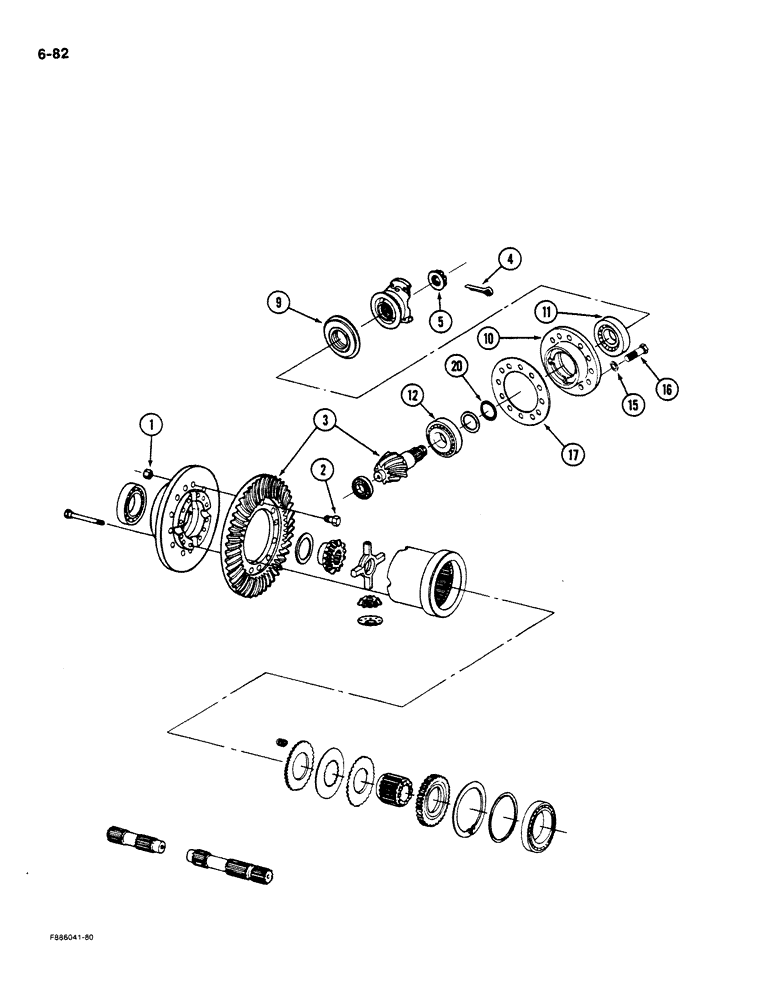

Запчасти Case IH STEIGER (6-082) - AXLE ASSEMBLY, DIFFERENTIAL, K592 BAR AXLE (06) - POWER TRAIN

90-6975T91

AXLE, FRONT

AXLE ASSEMBLY - front, without differential lock, Includes Ref: 1-20

1шт.

90-6976T91

AXLE, REAR

AXLE ASSEMBLY - rear, without differential lock, Includes Ref: 1-20

1шт.

90-6977T91

CENTER AXLE

AXLE ASSEMBLY - front, with differential lock, Includes Ref: 1-20

1шт.

90-6978T91

AXLE

ASSEMBLY - rear, with differential lock, Includes Ref: 1-20

1шт.

33-1218T91

GEAR-SET

GEAR SET - ring and pinion, front, Includes Ref: 1-5

1шт.

33-1217T91

RING

GEAR SET - ring and pinion, rear, Includes Ref: 1-5

1шт.

1

33-1220T1

NUT

- hex, M18 x 1.5, Grade 10.9

12шт.

2

33-1224T1

CAPSCREW,Hex

BOLT - hex

12шт.

3

NSS

NOT SOLD SEPARAT

GEAR SET

1шт.

4

16-1590

COTTER PIN,M6.3 x 63

PIN - cotter, M6 x 63 mm

1шт.

5

16-1589

NUT

NUT - slotted flange, M24 x 1.5

1шт.

9

33-1178T1

OIL SEAL

- input yoke

1шт.

10

33-1183T91

CAGE ASSY.

HOUSING ASSEMBLY - bearing, Includes Ref: 11, 12

1шт.

11

33-1179T1

TAPERED BEARING

BEARING - taper roller

1шт.

12

33-1216T1

TAPERED BEARING

BEARING - taper roller

1шт.

15

33-1182T1

LOCK WASHER

- lock, M14

12шт.

16

33-1181T1

SCREW

BOLT - hex, M14 x 1.5 x 55 mm, Grade 10.9, front axle

12шт.

16

33-1180T1

SCREW

BOLT - hex, M14 x 1.5 x 35 mm, Grade 10.9, rear axle

12шт.

17

33-1184T1

SHIM

- bearing housing, 0.10 mm

1шт.

17

33-1185T1

SHIM

- bearing housing, 0.15 mm

1шт.

17

33-1186T1

SHIM

- bearing housing, 0.25 mm

1шт.

17

33-1187T1

SHIM

- bearing housing, 0.70 mm

1шт.

20

33-1188T1

SPACER

- bearing, 6.90 mm

1шт.

20

33-1189T1

SPACER

- bearing, 7.00 mm

1шт.

20

33-1190T1

SPACER

- bearing, 7.02 mm

1шт.

20

33-1191T1

SPACER

- bearing, 7.04 mm

1шт.

20

33-1192T1

SPACER

- bearing, 7.06 mm

1шт.

20

33-1193T1

SPACER

- bearing, 7.08 mm

1шт.

20

33-1194T1

SPACER

- bearing, 7.10 mm

1шт.

20

33-1195T1

SPACER

- bearing, 7.20 mm

1шт.

20

33-1196T1

SPACER

- bearing, 7.32 mm

1шт.

20

33-1197T1

SPACER

- bearing, 7.44 mm

1шт.

20

33-1198T1

SPACER

- bearing, 7.56 mm

1шт.

20

33-1199T1

SPACER

- bearing, 7.68 mm

1шт.

20

33-1200T1

SPACER

- bearing, 7.80 mm

1шт.

20

33-1201T1

SPACER

- bearing, 7.92 mm

1шт.
