Запчасти Case IH STEIGER (6-080) - AXLE ASSEMBLY, DIFFERENTIAL AND CARRIER, K598.60/70 SERIES (06) - POWER TRAIN

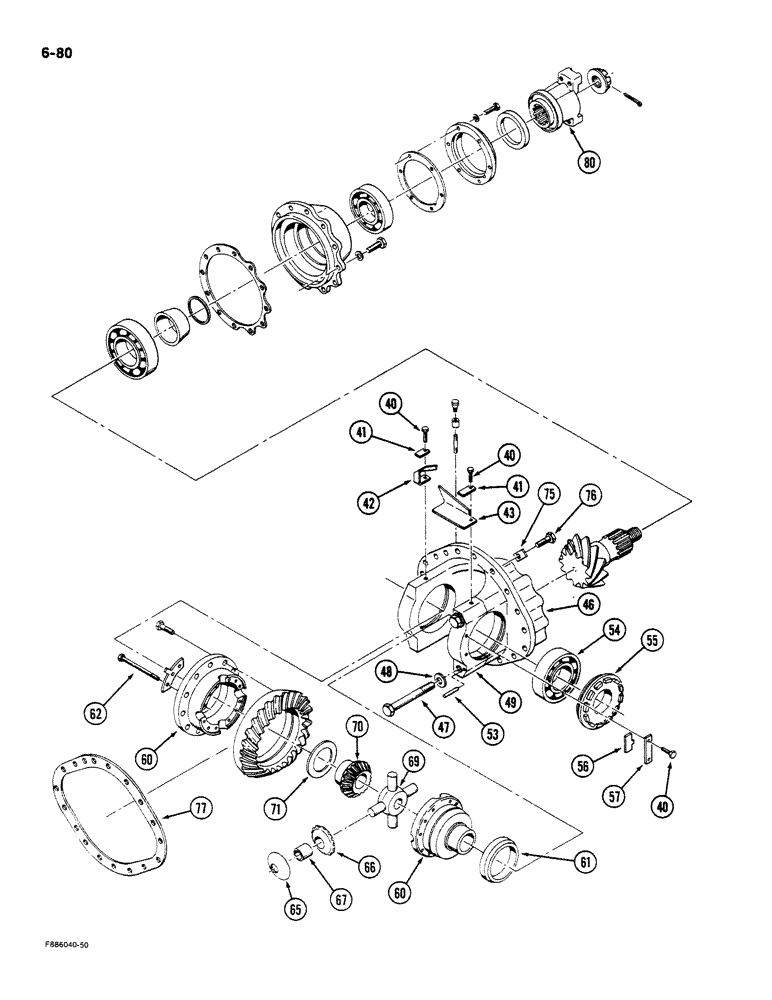

Схема запчастей Case IH STEIGER - (6-080) - AXLE ASSEMBLY, DIFFERENTIAL AND CARRIER, K598.60/70 SERIES (06) - POWER TRAIN
76
61
40
67
49
53
75
70
43
47
60
60
46
65
77
55
41
40
62
69
42
48
41
54
57
71
56
66
40
80

Артикул

Название

Примечание

Количество

90-6556T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, Includes Ref: 40-76

1шт.

90-6557T91

AXLE HOUSING

AXLE ASSEMBLY - rear, Includes Ref: 40-76

1шт.

90-4487T91

DIFFERENTIAL

ASSEMBLY - front, Includes Ref: 40-71

1шт.

90-4486T91

DIFFERENTIAL

ASSEMBLY - rear, Includes Ref: 40-71

1шт.

40

16-1186

CAPSCREW,Hex, M8 x 15mm, Cl 10.9

BOLT - hex, M8 x 15 mm, Grade 10.9

8шт.

41

90-4492T1

LARGE PLATE

TAB - locking

2шт.

42

90-4491T1

LARGE PLATE

PLATE - oil baffle, front axle

1шт.

42

90-4490T1

LARGE PLATE

PLATE - oil baffle, rear axle

1шт.

43

90-4494T1

LARGE PLATE

PLATE - oil baffle, front axle

1шт.

43

904493T1

PLATE - oil baffle, rear axle

1шт.

46

90-4488T91

HOUSING

ASSEMBLY - differential carrier, Includes Ref: 47-49

1шт.

47

16-1528

BOLT,Hex, M24 x 2 x 117mm, Cl 10.9

BOLT - hex

2шт.

48

90-4489T1

WASHER

- flat

2шт.

49

NSS

NOT SOLD SEPARAT

CAP - bearing retainer

1шт.

53

90-4485T1

DOWEL

PIN - dowel, M10 x 25 mm

1шт.

54

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

BEARING - tapper roller

2шт.

55

16-1522

SLOTTED NUT

NUT - bearing retainer

2шт.

56

16-1525

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

56

16-1526

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

56

16-1527

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

57

16-1524

LARGE PLATE

PLATE - locking

2шт.

16-1547

DIFFERENTIAL

ASSEMBLY - axle, Includes Ref: 60-71

1шт.

16-1548

CAGE ASSY.

CASE ASSEMBLY - differential halves, Includes Ref: 60-62

1шт.

60

NSS

NOT SOLD SEPARAT

CASE - differential

1шт.

61

16-1564

BAFFLE

Oil

1шт.

62

16-1543

SCREW,Hex, M12 x 1.5 x 90mm, Gr 10.9

BOLT - hex, M12 x 1.5 x 90 mm Grade 10.9

12шт.

65

16-1563

WASHER

- cone, wear

4шт.

66

16-1561

PINION

GEAR - pinion, Includes Ref: 67

4шт.

67

16-1562

BUSHING

Gear

4шт.

69

16-1560

DIFF. SPIDER

SPIDER - pinion gear

1шт.

70

16-1559

PINION

GEAR - side

2шт.

71

16-1551

SPACER

- gear, 4.6 mm

2шт.

71

16-1552

SPACER

- gear, 4.7 mm

2шт.

71

16-1553

SPACER

- gear, 4.8 mm

2шт.

71

16-1554

SPACER

- gear, 4.9 mm

2шт.

71

16-1555

SPACER

- gear, 5.0 mm

2шт.

71

16-1556

SPACER

- gear, 5.1 mm

2шт.

71

16-1557

SPACER

- gear, 5.2 mm

2шт.

71

16-1558

SPACER

- gear, 5.3 mm

2шт.

75

16-1520

WASHER

- lock

12шт.

75

16-1521

WASHER

PLATE - locking

6шт.

76

16-1519

BOLT,Hex, M12 x 1.75 x 38mm, Gr 10.9

BOLT- hex, M12 x 38 mm, Grade 10.9

18шт.

77

16-1531

GASKET

- differential (Order 1-1055, RTV sealant)

1шт.

80

90-6431T1

YOKE

- flanged, brake mount, front

1шт.

80

1-6858

YOKE

- rear

1шт.

Выбрано товаров: 45
