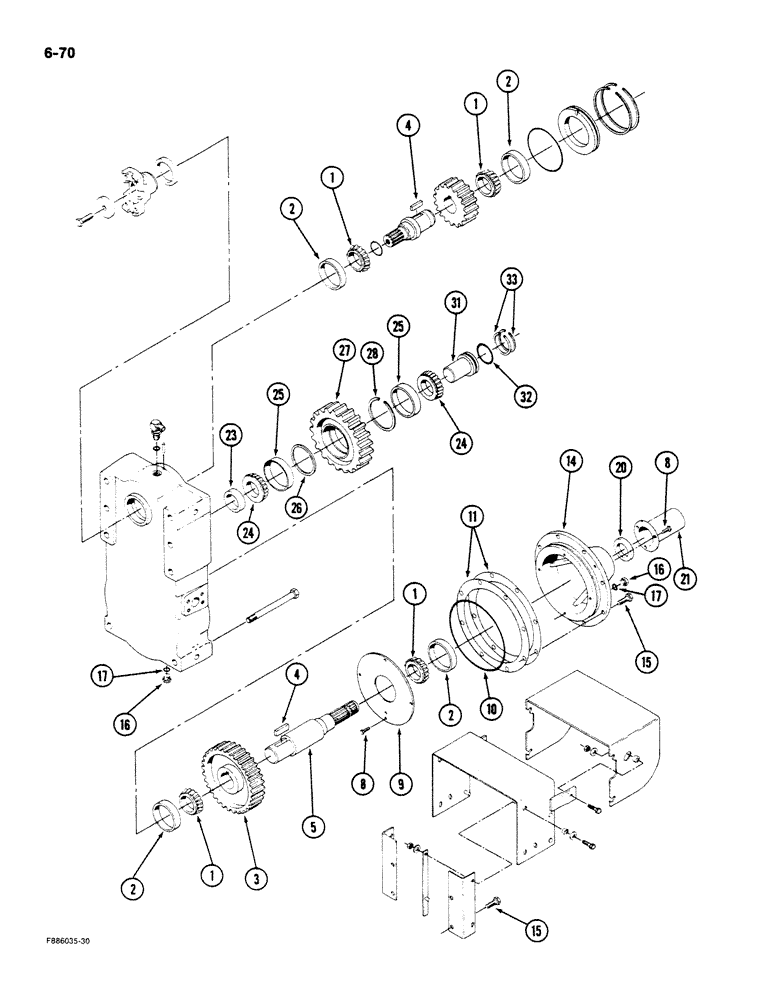

Запчасти Case IH STEIGER (6-070) - PTO TRANSFER CASE ASSEMBLY (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-4434T92
CASE ASSY.
CASE ASSEMBLY - transfer, PTO, Includes Ref: 1-33
1шт.
1
16-1652T1
BEARING, ROLLER,2.25" ID x 0.864"
CONE - bearing
4шт.
2
90-1996T1
BEARING, CUP,3.8125" OD x 0.8268"
CUP - bearing
4шт.
3
90-4402T1
PINION
GEAR - output, 54 tooth
1шт.
4
90-1173T1
BUCKET TOOTH KEY
KEY - shaft
2шт.
5
90-4401T1
SHAFT
- output
1шт.
8
19-876
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
- hex, 5/16 NC x 1/2 inch
7шт.
9
90-4409T2
DEFLECTOR
BAFFLE - oil
1шт.
10
1-2270
O-RING,9.234" ID x 9.512" OD x 0.139"
O-RING - end cap, 9-1/4 x 9-1/2 inch
1шт.
11
90-4410T1
SHIM
- end cap, 0.005 inch
1шт.
11
90-4411T1
SHIM
- end cap, 0.007 inch
1шт.
11
90-4412T1
SHIM
- end cap, 0.020 inch
1шт.
14
90-4420T2
CAP
- end, PTO output
1шт.
15
19-45
BOLT,1/2" - 13 x 1 1/2", Gr 5
- hex, 1/2 NC x 1-1/2 inch
8шт.
16
31-336
PLUG
- o-ring boss, 3/4 inch thread, Includes Ref: 17
2шт.
17
31-1335
O-RING,8-1, 90 Duro, .644" ID x .087" Thk
- plug, 41/64 x 5/64 inch
2шт.
20
90-1995T1
SEAL
SEAL - output shaft
1шт.
21
90-1926T1
COVER
- output shaft
1шт.
23
90-4425T1
BUSHING
- spacer, center shaft
1шт.
24
90-3580T1
BEARING, ROLLER,50.8mm ID x 24.61mm W
CONE - bearing
2шт.
25
90-3581T1
BEARING CUP,96.86mm OD x 19.45mm W
CUP - bearing
2шт.
26
96-3577T1
SPACER - gear, center shaft
1шт.
27
90-4403T1
PINION
GEAR - center, 49 tooth
1шт.
28
19-6058
RING, SNAP
RING - snap
1шт.
31
90-4418T1
PIN
- center shaft
1шт.
32
90-4424T1
O-RING,2.359" ID x 2.637" OD x 0.139"
- seal, 2-3/8 x 2-5/8 inch
1шт.
33
90-5750T1
RING, SNAP
RING - snap, 0.065 inch
1шт.
33
90-5749T1
RING, SNAP
RING - snap, 0.069 inch
1шт.
33
90-5748T1
RING, SNAP
RING - snap, 0.073 inch
1шт.
33
90-5747T1
RING, SNAP
RING - snap, 0.077 inch
1шт.
33
90-5746T1
RING, SNAP
RING - snap, 0.081 inch
1шт.
33
90-5745T1
RING, SNAP
RING - snap, 0.085 inch
1шт.
33
90-5744T1
RING, SNAP
RING - snap, 0.089 inch
1шт.
33
90-5743T1
RING, SNAP
RING - snap, 0.093 inch
1шт.
Выбрано товаров: 34
