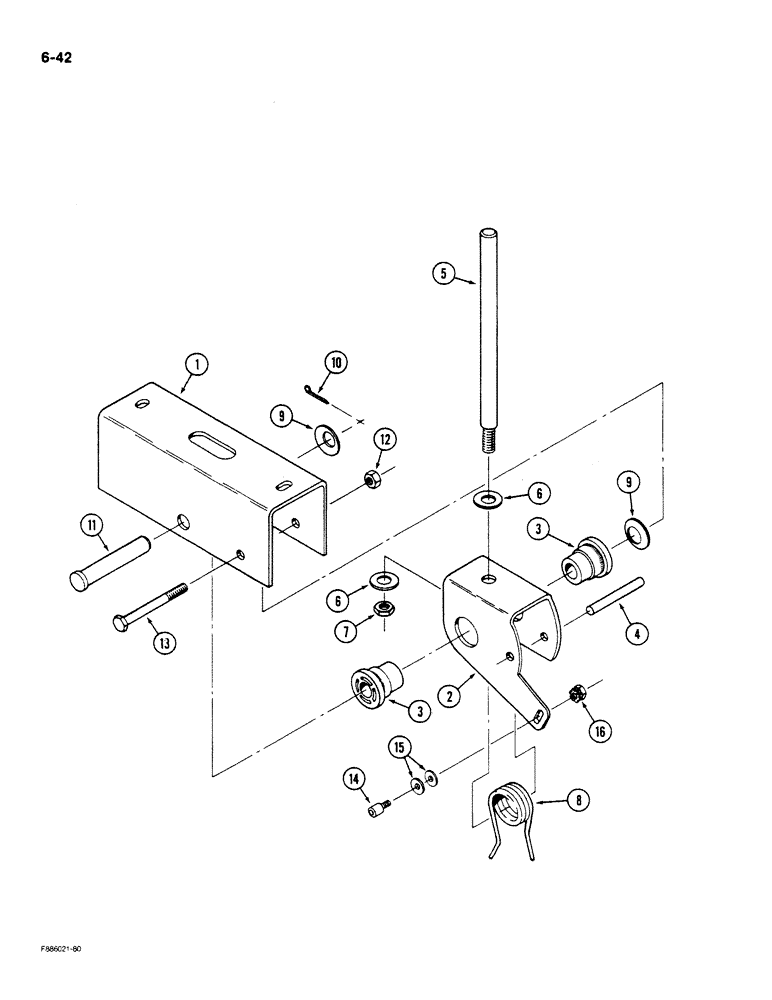

Запчасти Case IH STEIGER (6-042) - TRANSMISSION SHIFT CONTROLS, PULSER CONTROL, P.I.N. JCB 0002116 AND AFTER (06) - POWER TRAIN

60-6061T91

CONTROL

- pulser, upshift or downshift, Includes Ref: 1-16

1шт.

1

60-5889T1

BRACKET

- control mounting

1шт.

2

60-5890T1

FORK

YOKE - pivot, shift control

1шт.

3

60-5884T1

BUSHING

- flanged pivot, nylon

2шт.

4

60-5892T1

PIN

- spring tension

1шт.

5

60-5885T1

ROD

- shift control

1шт.

6

19-224

WASHER,3/8", SAE

- flat, 3/8 x 1 x 1/16 inch

2шт.

7

19-295

NUT,Jam, 3/8" - 16, Gr 5

- jam, 3/8 inch NC

1шт.

8

70-4486T2

SPRING

- neutral return

1шт.

9

19-6034

SPRING WASHER

- spring, 1/2 x 1 x 1/64 inch

2шт.

10

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

1шт.

11

19-6165

PIN

- clevis, 1/2 x 2-1/4 inch

1шт.

12

19-1081

LOCK NUT

- lock, 1/4 inch NC

1шт.

13

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- hex, 1/4 NC x 2-1/2 inch

1шт.

14

20-1316T1

ACTUATOR

- pulser

1шт.

15

446143

WASHER

- flat, No.8

2шт.

16

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps, No. 8 NC

1шт.
