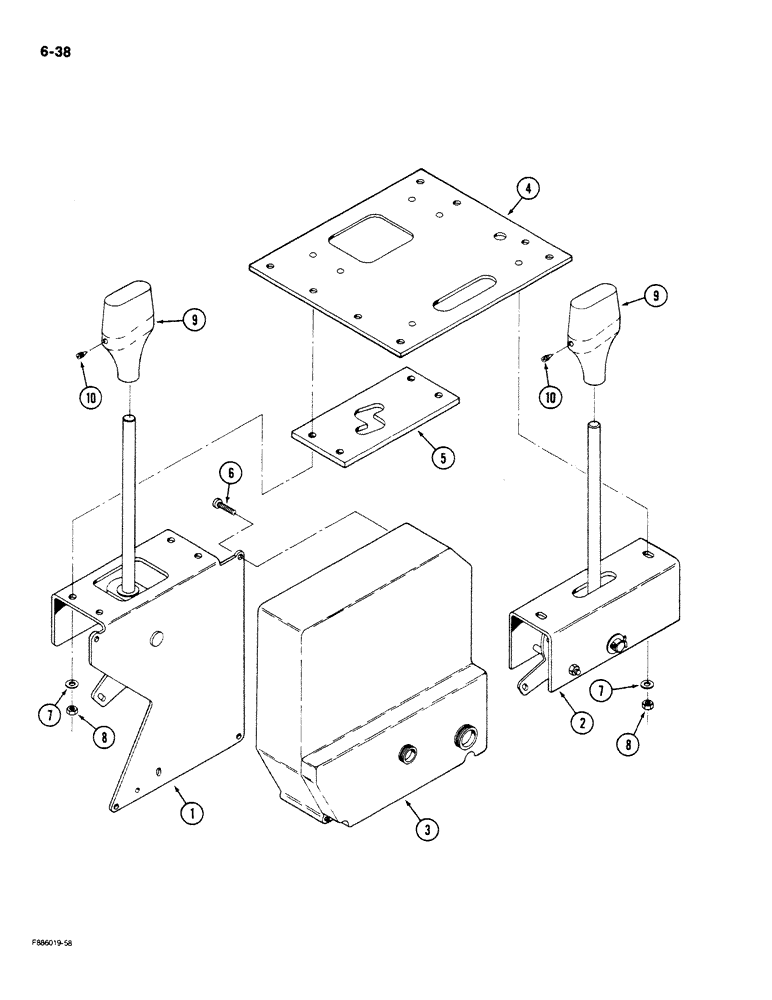

Запчасти Case IH STEIGER (6-038) - TRANSMISSION SHIFT CONTROLS, P.I.N. JCB0002116 AND AFTER (06) - POWER TRAIN

1

REF

INSTRUCTION

CONTROL ASSEMBLY - mode (See Figure: 6-40)

1шт.

2

REF

INSTRUCTION

CONTROL ASSEMBLY - pulser (See Figure: 6-42)

1шт.

3

60-6133T1

BOX

CONTROLLER - transmission, electronic

1шт.

60-6570T1R

REMAN ELECT CONTROL

STEIGER COUGAR,STEIGER BEARCAT,Both P.I.N. JCB0002116 AND AFTER (1/86-11/86), Reman for New P/N 60-6133T1

1шт.

60-6570T1C

CORE-ELECTRONIC CONT

Return Number

1шт.

4

60-6139T1

BRACKET

PLATE - adapter, control mounting

1шт.

5

60-6140T1

LARGE PLATE

PLATE - wear, mode

1шт.

6

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, pan head, No. 10 x 3/4 inch

4шт.

7

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

14шт.

8

280129

NUT,1/4"-20

NUT- lock, 1/4 inch NC

14шт.

9

60-6036T1

KNOB

KNOB - shift handles

2шт.

10

19-5798

SET SCREW

SCREW - set, No. 8 NC

2шт.
