Запчасти Case IH STEIGER (6-034) - TRANSMISSION SHIFT CONTROLS, MODE CONTROL, PRIOR TO P.I.N. JCB0002116 (06) - POWER TRAIN

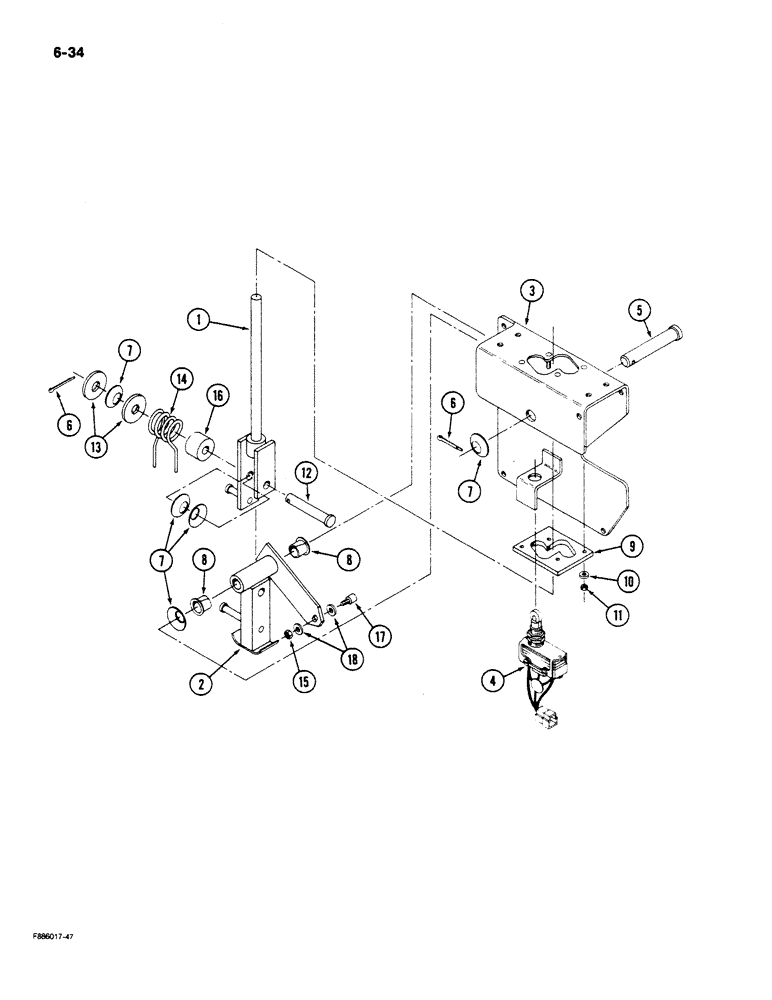

Схема запчастей Case IH STEIGER - (6-034) - TRANSMISSION SHIFT CONTROLS, MODE CONTROL, PRIOR TO P.I.N. JCB0002116 (06) - POWER TRAIN
9
2
8
7
16
1
17
10
5
8
7
6
12
14
6
13
3
4
18
15
7
11

Артикул

Название

Примечание

Количество

60-4446T93

LEVER

CONTROL - mode, forward or reverse, Includes Ref: 1-18

1шт.

1

60-4517T3

LEVER

- mode

1шт.

2

60-4518T2

PIVOT

- mode lever

1шт.

3

60-4519T3

FRAME

- mode control mounting

1шт.

4

20-2050T2

IGNITION SWITCH

SWITCH - neutral

1шт.

5

19-6158

CLEVIS PIN,1/2" x 2 3/4"

PIN - clevis, 1/2 x 2-3/4 inch

1шт.

6

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

2шт.

7

19-6034

SPRING WASHER

- spring, 1/2 x 1 x 1/64 inch thick

5шт.

8

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING - flanged

2шт.

9

60-4521T1

PLATE

- wear

1шт.

10

19-708

WASHER,#6

- flat, No. 6 x 3/8 x 1/16 inch thick

4шт.

11

19-5564

LOCK NUT,#6-32, GB

NUT - lock, No. 6 NC

4шт.

12

19-6159

CLEVIS

PIN - clevis, 3/8 x 2-1/4 inch

1шт.

13

19-6192

WASHER - flat, 3/8 x 1-1/4 x 7/64 inch

2шт.

14

70-4486T2

SPRING

- neutral return

1шт.

15

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps, No. 8 NC

1шт.

16

60-4511T2

SPACER

- spring

1шт.

17

20-1316T1

ACTUATOR

- mode

1шт.

18

446143

WASHER

- flat, No.8

2шт.

Выбрано товаров: 19
