Запчасти Case IH STEIGER (6-032) - TRANSMISSION SHIFT CONTROLS, PRIOR TO P.I.N. JCB0002116 (06) - POWER TRAIN

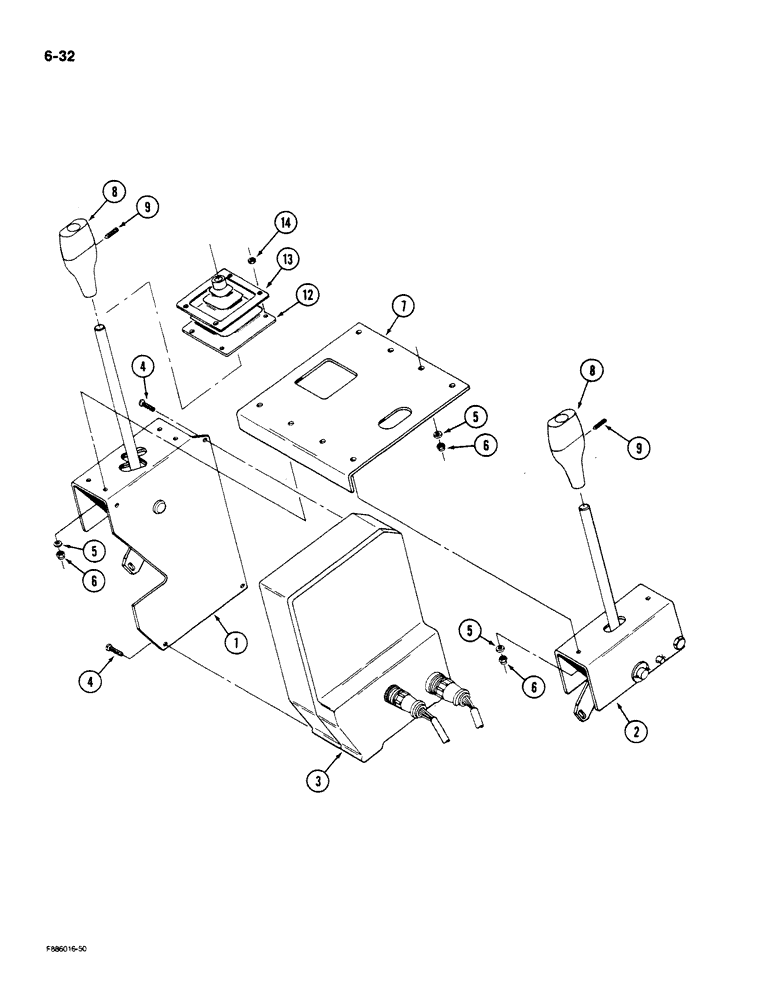

Схема запчастей Case IH STEIGER - (6-032) - TRANSMISSION SHIFT CONTROLS, PRIOR TO P.I.N. JCB0002116 (06) - POWER TRAIN
4
4
3
12
8
5
1
7
8
5
6
5
6
13
6
9
9
14
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL ASSEMBLY - mode (See Figure: 6-34)

1шт.

2

REF

INSTRUCTION

CONTROL ASSEMBLY - pulser (See Figure: 6-36)

1шт.

3

60-6133T1

BOX

CONTROLLER - transmission, electronic, cab (See note), Start Serial: 17900705

1шт.

60-6570T1R

REMAN ELECT CONTROL

STEIGER COUGAR,STEIGER BEARCAT,Both PRIOR TO P.I.N. JCB0002116 (1/86-11/86), Reman for New P/N 60-6133T1

1шт.

60-6570T1C

CORE-ELECTRONIC CONT

Return Number

1шт.

60-6132T1

BOX

CONTROLLER - transmission, electronic, ROPS and cab (For all tractors built with ROPS, See note), Serial Range: -17900705

1шт.

4

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, pan head, No. 10 x 3/4 inch

4шт.

5

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

14шт.

6

19-1081

LOCK NUT

- lock, 1/4 inch NC

14шт.

7

60-5058T1

SUPPORT

BRACKET - adapter, control mounting

1шт.

8

60-6036T1

KNOB

KNOB - shift handle

2шт.

9

19-5926

SET SCREW

SCREW - set, No. 8 NC x 3/8 inch

2шт.

12

60-5847T1

BOOT

- bellows (ROPS only)

2шт.

13

60-5846T1

RETAINER

- boot (ROPS only)

2шт.

14

19-5564

LOCK NUT,#6-32, GB

NUT - lock, No. 6 NC (ROPS only)

8шт.
