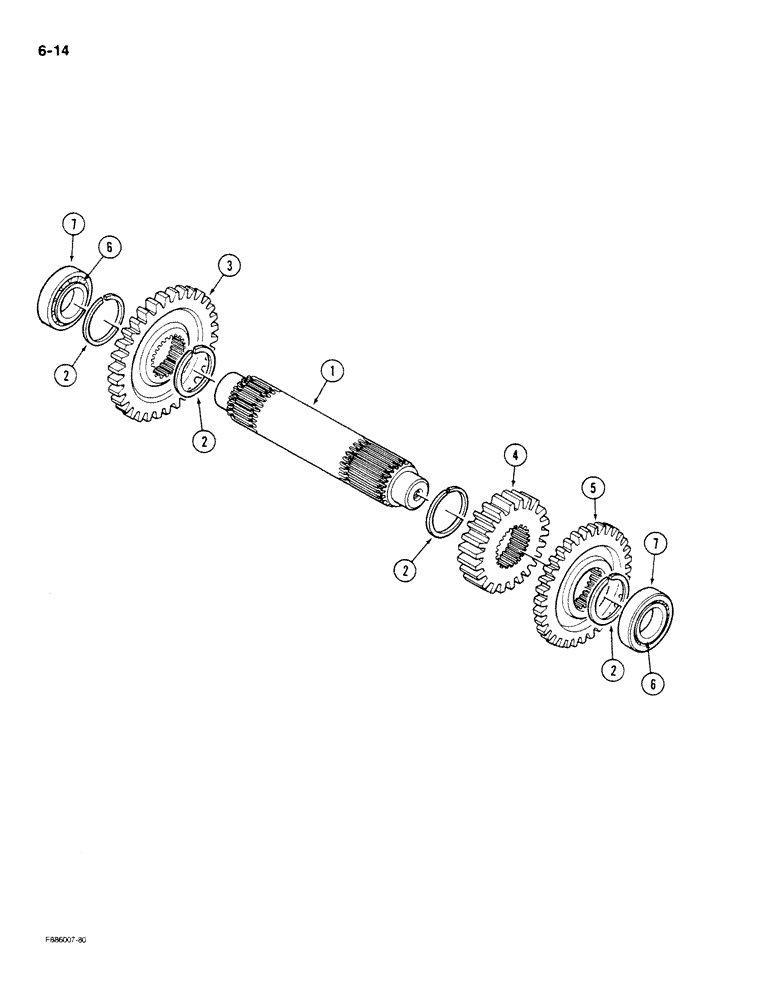

Запчасти Case IH STEIGER (6-014) - TRANSMISSION, COMPOUND SHAFT (06) - POWER TRAIN

90-6256T91

TRANSMISSION

ASSEMBLY (Continued from Figure: 6-12), Includes Ref: 1-7

1шт.

1

33-1436T1

SHAFT

- compound

1шт.

2

33-1416T1

RING, SNAP

RING - retaining

4шт.

3

33-1415T1

PINION

GEAR - compound shaft (32 Teeth)

1шт.

4

33-1434T1

PINION

GEAR - drive (22 Teeth)

1шт.

5

33-1435T1

PINION

GEAR - driven (29 Teeth)

1шт.

6

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE ASSEMBLY - bearing

2шт.

7

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.
