35-1610T91
KIT

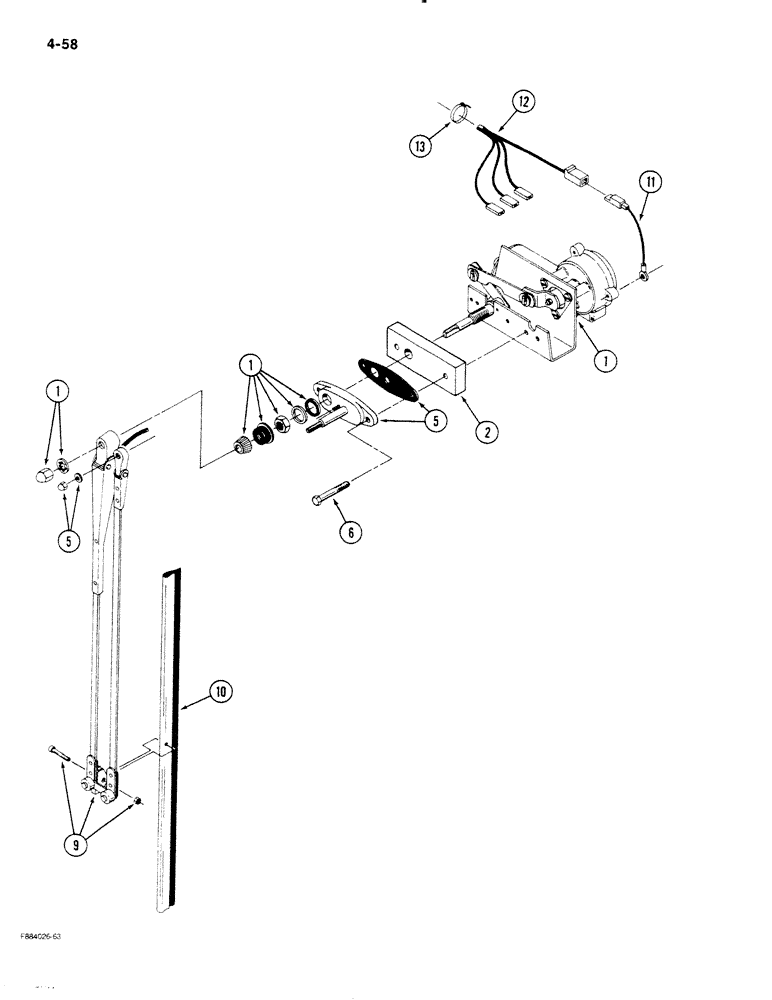

WIPER KIT - rear window (Machinery Item), Includes Ref: 1-13
1шт.
1
REF
INSTRUCTION
DRIVE ASSEMBLY - wiper, rear window (See Figure: 4-70)
1шт.
2
60-4981T1
SPACER
- wiper mounting
1шт.
5
54-311
PIVOT ASSY.
PIVOT KIT - wiper blade
1шт.
6
19-1048
BOLT - hex, 1/4 NF x 1-1/2 inch Hex, 1/4"-28 x 1 1/2", G5
2шт.
9
54-313
ARM
- wiper, 20 inch
1шт.
10
54-312
HALF BLADE
BLADE - wiper, 22 inch
1шт.
11
20-1452T1
ELECTRICAL WIRE
WIRE - ground lead
1шт.
12
20-2028T1
HARNESS
- rear wiper
1шт.
13
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP - nylon
1шт.
