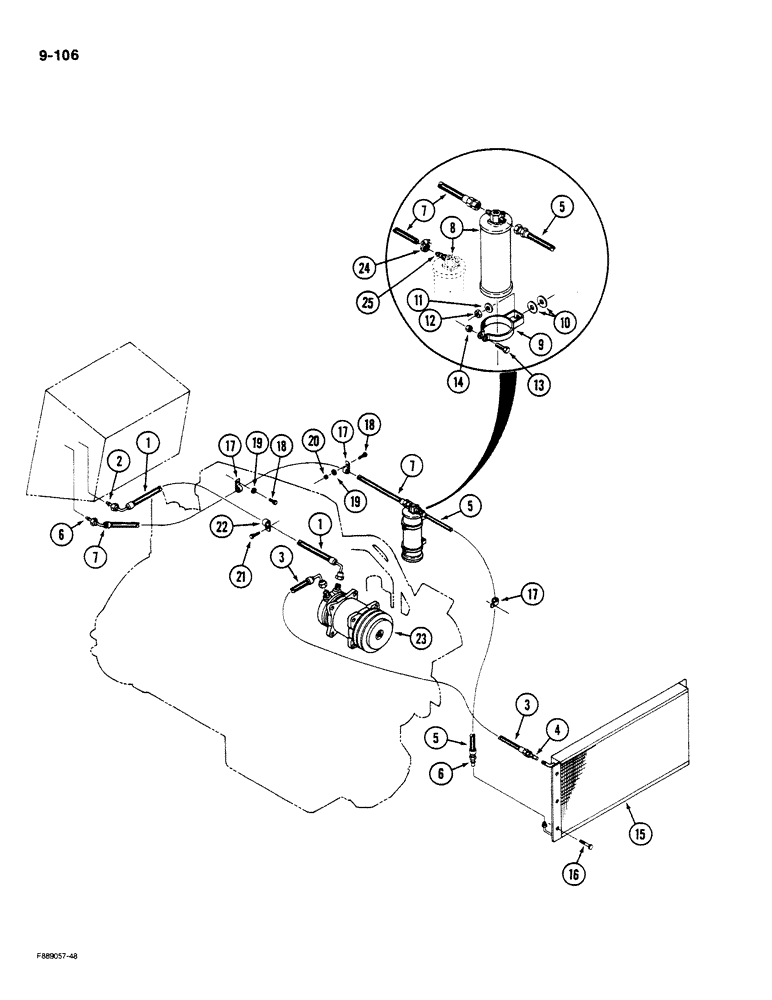

Запчасти Case IH STEIGER (9-106) - AIR CONDITIONING, CONDENSER, RECEIVER-DRIER AND PLUMBING, 3306 ENGINE (09) - CHASSIS/ATTACHMENTS

1

31-2732

HOSE

ASSEMBLY - suction

1шт.

2

31-1809

O-RING

- 9/16 x 11/16 inch

1шт.

3

31-2750

HOSE

ASSEMBLY - discharge 17900270 to

1шт.

3

31-2501

HOSE,10.41mm ID x 1549.4mm L

ASSEMBLY - discharge, Serial Range: -17900270

1шт.

4

31-1808

O-RING

O-RING - 7/16 x 9/16 inch

1шт.

5

31-2500

HOSE

ASSEMBLY -, Serial Range: condenser-receiver-drier

1шт.

6

31-1807

O-RING

O-RING - 5/16 x 7/16 inch

2шт.

7

31-2754

HOSE ASSY.

HOSE ASSEMBLY - receiver-drier to thermal expansion valve 17900270 to

1шт.

7

31-2503

HOSE

ASSEMBLY - receiver-drier to thermal expansion valve, Serial Range: -17900270

1шт.

8

60-5818T1

SUPPORT

RECEIVER-DRIER - air conditioning 17900270 to

1шт.

8

1-7778T1

AIR CONDITIONER

RECEIVER-DRIER - air conditioning, Includes Ref: 25, Serial Range: -17900270

1шт.

9

1-8563

CLAMP BRACKET

BRACKET - mounting, receiver-drier

2шт.

10

19-700

WASHER,5/16"

- flat, 5/16 inch

4шт.

11

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

12

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC

2шт.

13

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

14

280129

NUT,1/4"-20

NUT - lock, 1/4 inch NC

2шт.

15

60-4335T2

CONDENSER

ASSEMBLY - air conditioning

1шт.

16

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

6шт.

17

31-1776

MOUNTING CLIP

CLAMP - hose

3шт.

18

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

2шт.

19

19-224

WASHER,3/8", SAE

- flat, 3/8 inch

2шт.

20

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 inch NC

2шт.

21

32-161

COLLAR CLAMP

CLAMP - hose

1шт.

22

19-288

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- hex, 5/16 NC x 5/8 inch

1шт.

23

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure: 9-112)

1шт.

24

25-285T1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP - hose, 1/2 to 7/8 inch, Serial Range: -17900270

1шт.

25

31-2795

ADAPTER

CONNECTOR - straight, 5/8 thread x 5/16 inch, Serial Range: -17900270

1шт.
