Запчасти Case IH STEIGER (9-100) - AIR CONDITIONER AND HEATER, CONTROLS AND AIR PLENUM, CAB (09) - CHASSIS/ATTACHMENTS

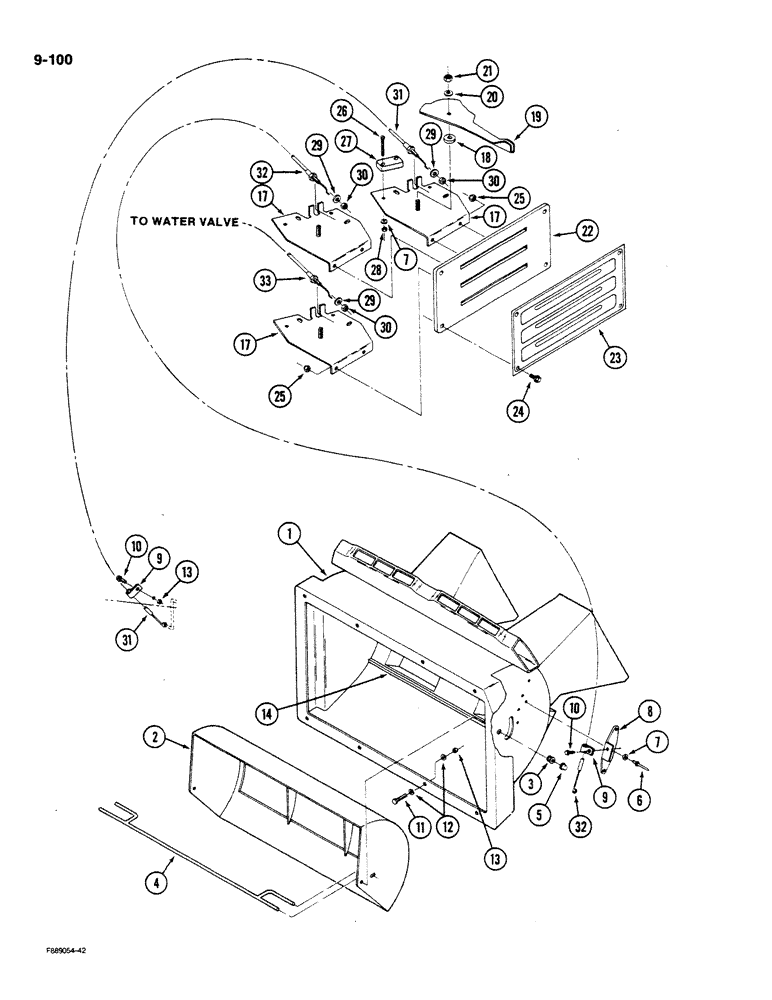

Схема запчастей Case IH STEIGER - (9-100) - AIR CONDITIONER AND HEATER, CONTROLS AND AIR PLENUM, CAB (09) - CHASSIS/ATTACHMENTS
22
17
28
30
12
29
30
26
5
14
13
10
6
9
10
1
31
13
27
8
4
2
18
23
11
21
24
32
17
33
25
3
7
7
9
31
25
20
19
29
17
29
32

Артикул

Название

Примечание

Количество

1

60-4917T1

DEFLECTOR

PLENUM - air conditioner and heater

1шт.

2

60-4698T1

FLAP

DOOR - heat/defrost director

1шт.

3

19-6129

NYLON BEARING

BEARING - snap in, door pivot

2шт.

4

60-4680T1

PIVOT

- plenum door

1шт.

5

19-5758

PUSH-ON NUT

- push on

2шт.

6

19-157

RIVET

- pop, 1/8 x 3/8 inch

5шт.

7

19-6100

WASHER

- flat, No. 4

9шт.

8

60-4976T1

FIXING BRACKET

MOUNT - cable clamp

1шт.

9

31-2511

CLAMP

- cable retaining

2шт.

10

9423772

SCREW,Hex Washer, #10 - 24 x 5/8"

- machine, flanged head, No. 10 NC x 5/8 inch

2шт.

11

163-46

SCREW,Hex, #10 - 24 x 1", Gr 5

- machine, hex head, No. 10 NC x 1 inch

8шт.

12

19-195

WASHER,#10

- flat, No. 10

16шт.

13

19-5563

LOCK NUT

- lock, No. 10 NC

10шт.

14

60-4681T1

SEAL

- plenum door

1шт.

17

60-4365T2

SUPPORT

BRACKET - lever mounting

3шт.

18

60-4208T1

SPACER

- lever

3шт.

19

60-4529T1

LEVER

- cable actuating

3шт.

20

19-5924

SPRING WASHER

- spring, 1/4 inch

3шт.

21

280129

NUT,1/4"-20

NUT - lock, 1/4 inch NC

3шт.

22

60-4221T1

PANEL

- climate control

1шт.

23

60-5932T1

DECAL

- control panel, Gray

1шт.

23

60-4138T1

DECAL

- control pariel, Tan

1шт.

24

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

SCREW - tapping, flanged head, No. 8 x 5/8 inch

4шт.

25

19-481

SERRATED NUT

- lock, keps, No. 10 inch NF

6шт.

26

19-1035

SCREW,Rnd Hd, #4 - 40 x 1"

- machine, round head, No. 4 NC x 1 inch

4шт.

27

20-1976T1

IGNITION SWITCH

SWITCH - micro, fan or compressor clutch

2шт.

28

225-14104

NUT,#4-40

- hex, No. 4 NC

4шт.

29

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

3шт.

30

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

31

60-4781T1

CABLE

- recirculation door

1шт.

32

60-4543T1

CABLE

- heater/defroster/air conditioning

1шт.

33

60-4372T1

CABLE

- water valve actuating

1шт.

Выбрано товаров: 32
