Запчасти Case IH STEIGER (9-084) - CONTROL CONSOLE, CAB (09) - CHASSIS/ATTACHMENTS

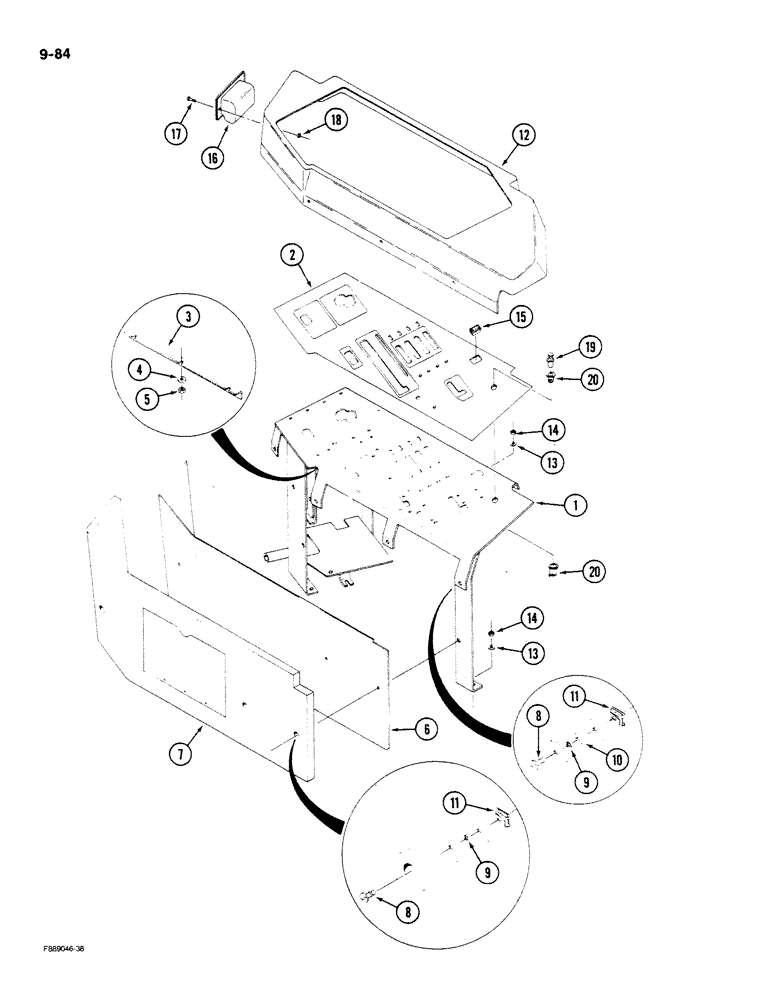

Схема запчастей Case IH STEIGER - (9-084) - CONTROL CONSOLE, CAB (09) - CHASSIS/ATTACHMENTS
2
10
20
9
6
4
5
20
13
9
3
13
8
15
17
14
12
16
11
19
11
14
8
1
18
7

Артикул

Название

Примечание

Количество

1

60-5782T1

PANEL

- control console

1шт.

2

60-5937T1

DECAL

- control console

1шт.

3

60-4276T1

SUPPORT

BRACKET - stiffener, console

1шт.

4

19-195

WASHER,#10

- flat, No. 10 x 9/16 x 3/64 inch

3шт.

5

19-5563

LOCK NUT

- lock, No. 10 NC

3шт.

6

60-4133T1

SHIELD

PANEL - console wraparound

1шт.

7

60-5936T1

ISOLATOR

COVER - console panel, Gray

1шт.

7

60-4130T1

INSULATOR

COVER - console panel, Tan

1шт.

8

19-6136

STUD

- quarterturn

11шт.

9

19-5703

RETAINER

- quarterturn stud

11шт.

10

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

5шт.

11

19-6137

CONTAINER

RECEPTACLE - quarter turn stud

11шт.

12

60-5938T1

COVER

- console, Gray

1шт.

12

60-3935T1

COVER

- console, Tan

1шт.

13

19-106

WASHER,5/16", SAE

- flat, 5/16 inch

5шт.

14

231-1445

NUT,5/16"-18, GB

NUT - lock,5/16 inch NC

5шт.

15

60-3210T1

PLUG

- switch hole

1шт.

16

2-6138T91

ASH TRAY

ASHTRAY

1шт.

17

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

- machine, flat head, No. 8 NC x 5/8 inch

2шт.

18

19-5621

LOCK NUT,#8-32, GB

NUT - lock, No. 8 inch NC

2шт.

19

22-727

KNOB

LIGHTER - cigar, knob and plug

1шт.

20

20-2237T1

CONTAINER

RECEPTACLE - cigar lighter

1шт.

Выбрано товаров: 22
