(9-082) - INSTRUMENT PANEL, ROPS

Запчасти Case IH STEIGER (9-082) - INSTRUMENT PANEL, ROPS (09) - CHASSIS/ATTACHMENTS

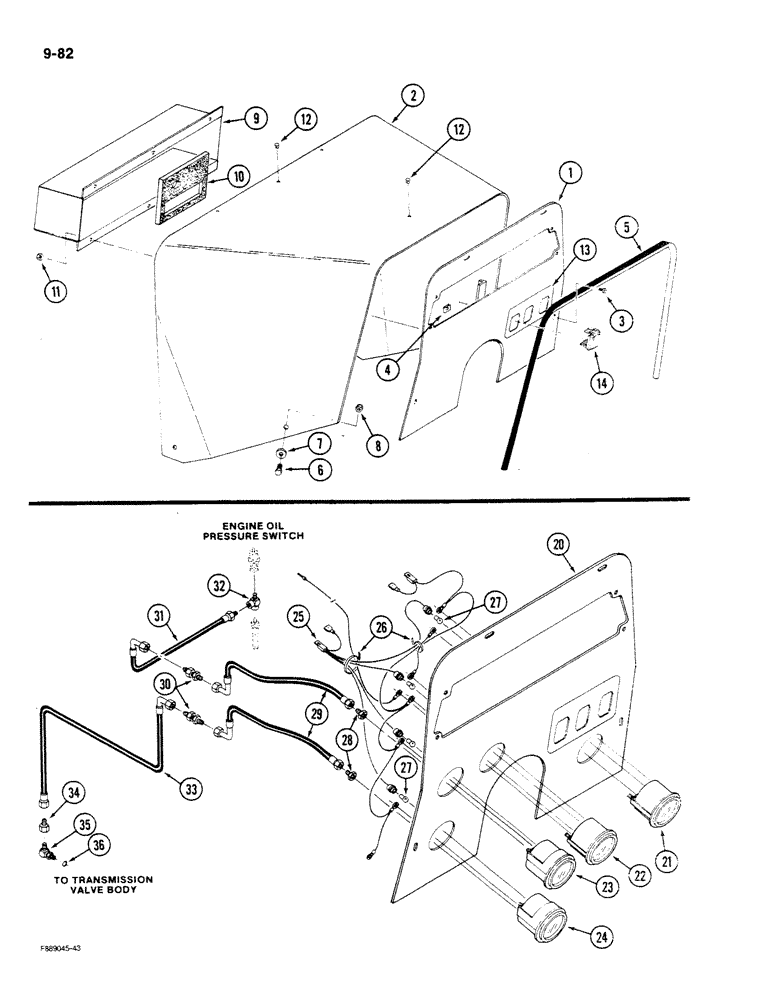

Схема запчастей Case IH STEIGER - (9-082) - INSTRUMENT PANEL, ROPS (09) - CHASSIS/ATTACHMENTS
12
25
13
27
9
7
34
1
32
27
2
29
3
26
33
30
14
4
20
35
6
36
5
22
11
24
23
8
10
12
31
28
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-5832T1

PANEL

PLATE - dash mounting

1шт.

2

60-5834T1

PANEL

COVER - dash wraparound

1шт.

3

159950

NUT

- machine, pan head, No. 10 NC x 3/4 inch

6шт.

4

19-6119

STEEL SHEET NUT

NUT - clip, U-type, No. 10 NC

6шт.

5

60-5859T1

GASKET

MOLDING - edge cover

1шт.

6

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex,5/16 NC x 1 inch

4шт.

7

19-106

WASHER,5/16", SAE

- flat, 5/16 inch

4шт.

8

19-508

LOCK NUT

- lock, 5/16 inch NC

4шт.

9

60-5836T1

COVER

- rear instrument panel

1шт.

10

60-5828T1

SEAL

SEAL - foam

1шт.

11

19-1081

LOCK NUT

- lock, 1/4 inch NC

6шт.

12

60-4582T1

PLUG

- hole, nylon

2шт.

13

60-.5980T1

DECAL - switch, ROPS

1шт.

14

60-3210T1

PLUG

- switch hole

2шт.

20

60-6137T1

PANEL ASSY.

PLATE - dash mounting, gauge package ( if equipped) Rops

1шт.

21

60-2466T1

GAUGE - voltmeter, package ( if equipped) Rops

1шт.

22

60-2465T1

GAUGE - engine temperature, package ( if equipped) Rops

1шт.

23

60-2468T1

GAUGE - engine oil pressure, package ( if equipped) Rops

1шт.

24

60-2467T1

GAUGE - transmission oil pressure, package ( if equipped) Rops

1шт.

25

60-6055T1

HARNESS

- gauge adapter, package ( if equipped) Rops

1шт.

26

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon, gauge package ( if equipped) Rops

1шт.

27

22-717

LAMP

BULB - lamp (No. 1893), gauge package ( if equipped) Rops

4шт.

28

31-1593

ADAPTER

- 1/8 NPT female x 7/16-20, 37 degree male, gauge package ( if equipped) Rops

1шт.

29

31-2809

HOSE

- gauges to firewall, 24 inch, package ( if equipped) Rops

2шт.

30

31-1391

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - bulkhead, 7/16-20 male x 7/16-20, 37 degree, gauge package ( if equipped) Rops

2шт.

31

31-2807

HOSE ASSY.

HOSE - firewall to pressure switch, 23 inch, gauge package ( if equipped) Rops

1шт.

32

31-1353

TEE,1/8"-27 Female x 1/8"-27 Male Run

- 1/8 NPT male x 1/8 NPT female x 1/8 inch NPT female, gauge package ( if equipped) Rops

1шт.

33

31-2808

HOSE ASSY.

HOSE - firewall to transmission, 46 inch, gauge package ( if equipped) Rops

1шт.

34

31-2543

ADAPTER

- orificed, gauge package ( if equipped) Rops

1шт.

35

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

- 7/16-20 o-ring boss x 7/16-20, 37 degree male, gauge package ( if equipped) Rops, Includes Ref: 36

1шт.

36

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

- 23/64 ID x 5/32 inch width, gauge package ( if equipped) Rops

1шт.
