Запчасти Case IH STEIGER (9-070) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS

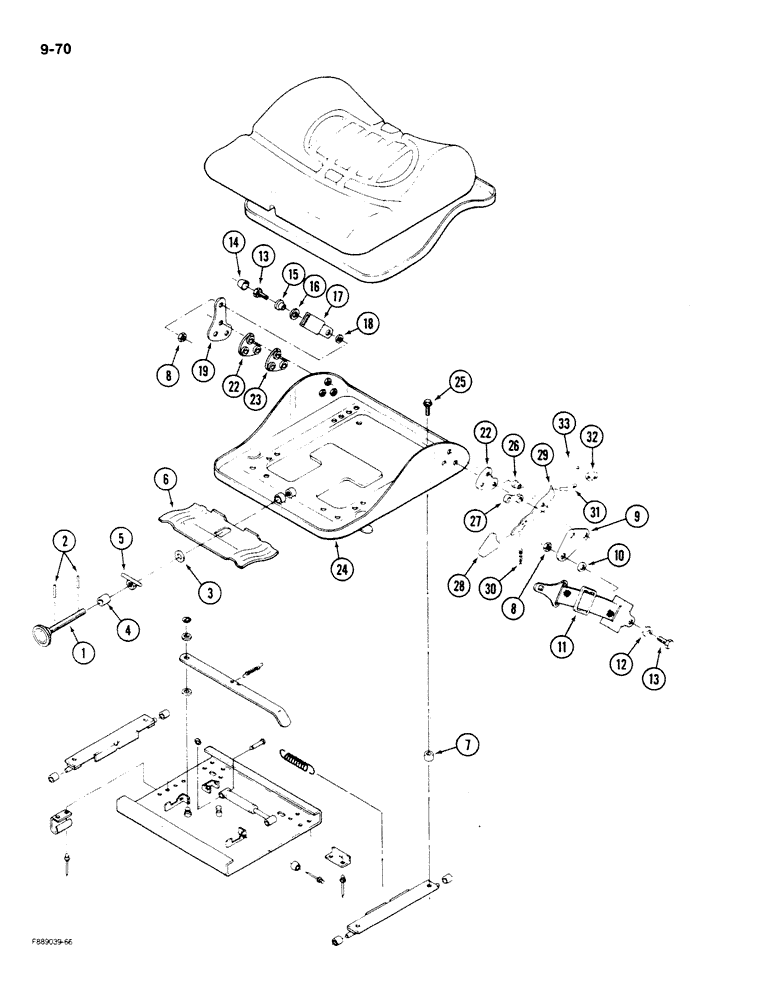

Схема запчастей Case IH STEIGER - (9-070) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS
13
5
25
2
33
6
22
15
9
16
27
8
24
7
19
17
28
29
10
22
13
30
3
18
11
1
8
23
4
14
32
12
31
26

Артикул

Название

Примечание

Количество

60-5949T91

SEAT

ASSEMBLY - air suspension, Gray cloth upholstery (Continued from Figure: 9-68)

1шт.

60-4793T91

SEAT ASSY.

SEAT ASSEMBLY - air suspension, Tan cloth upholstery (Continued from Figure: 9-68)

1шт.

1

60-4848T1

KNOB

SPINDLE - seat inciination

1шт.

2

40-1175

PIN

- spring, M3 x 18 mm

2шт.

3

40-1153

WASHER

- flat, M13

1шт.

4

60-3203T1

BUSHING

- spacer

1шт.

5

60-1687T1

NUT

- retaining

1шт.

6

60-1694T1

PLATE

- support

1шт.

7

60-3237T1

BUSHING

SPACER - seat pan mounting

4шт.

60-4869T91

SAFETY BELT

BELT ASSEMBLY - seat, safety, Includes Ref: 8-19

1шт.

8

60-4870T1

NUT

- hex, 7/16 inch NF

2шт.

9

60-4871T1

ANCHOR

MOUNT - safety belt

1шт.

10

40-1159

WASHER

- flat, M13

1шт.

11

60-4872T1

STRAP

- safety belt

1шт.

12

60-3197T1

BUSHING

- strap swivel

1шт.

13

60-1665T1

CAPSCREW,Pan, #10 - 32 x .375"

BOLT - hex, 7/16 NF x 1 inch

2шт.

14

60-1656T1

COVER

- protective

1шт.

15

60-1666T1

BUSHING

- buckle swivel

1шт.

16

60-1662T1

WASHER

- spring, M15

1шт.

17

60-1658T1

BUCKLE

- safety belt

1шт.

18

60-1667T1

WASHER

- flat, M11

1шт.

19

60-1668T1

BRACKET

- safety belt

1шт.

22

60-1638T1

LARGE PLATE

SPACER - safety belt mount

2шт.

23

60-4844T1

PLATE

SPACER - safety belt bracket

1шт.

24

60-3236T1

PAN

- seat bottom

1шт.

25

60-1628T1

BOLT

- hex, M8 x 20 mm

4шт.

26

60-4855T1

BUSHING

- lever pivot

1шт.

27

60-4854T1

SPACER

- safety belt mount

1шт.

28

60-4861T1

HANDLE

- back reclining lever

1шт.

29

60-4856T1

LEVER

- back reclining

1шт.

30

60-4853T1

SPRING

- lever return

1шт.

31

60-4857T1

ROD

- lever stop

1шт.

32

60-4841T1

STOP

- reclining lever

1шт.

33

40-1232

PIN

- spring, M4 x 14 mm

1шт.

Выбрано товаров: 34
