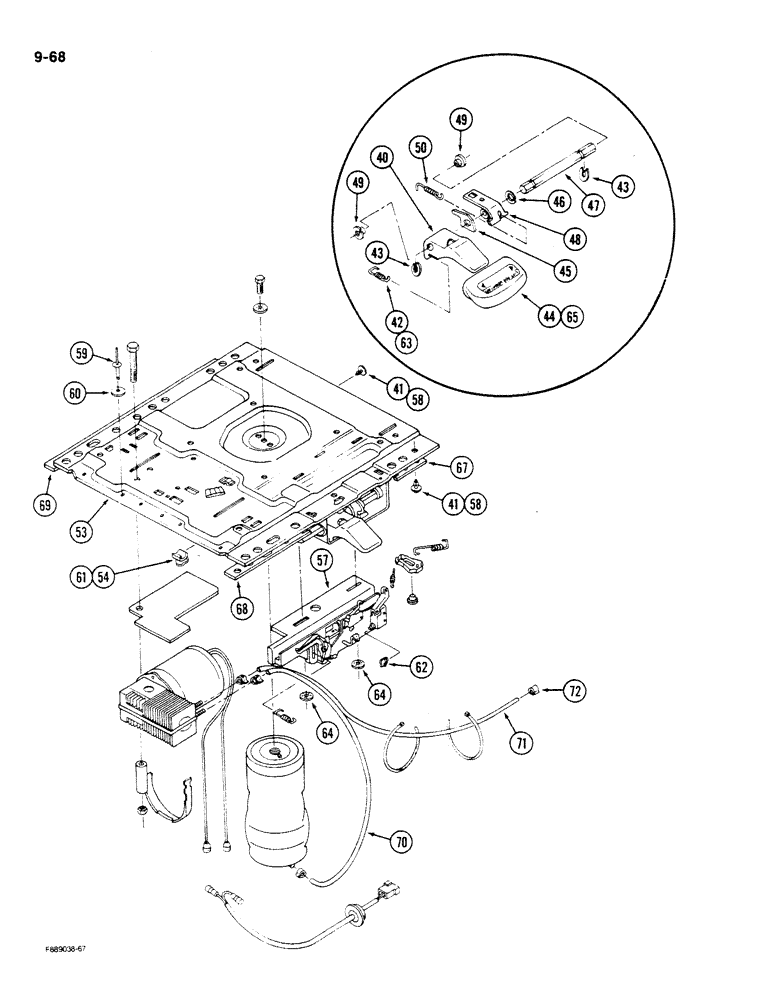

Запчасти Case IH STEIGER (9-068) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS

60-4890T91

SLIDE

CARRIER ASSEMBLY - seat adjustment (Continued from Figure: 9-66), Includes Ref: 40-50

1шт.

40

NSS

NOT SOLD SEPARAT

LEVER - seat adjustment

1шт.

41

60-1613T1

FASTENER

- snap, boot

12шт.

42

60-4883T1

SPRING

- carrier return

1шт.

43

40-1157

RING

- retaining, M7

2шт.

44

60-4884T1

HANDLE

- raise and lower

1шт.

45

NSS

NOT SOLD SEPARAT

RACHET

1шт.

46

60-4892T1

WASHER

1шт.

47

NSS

NOT SOLD SEPARAT

SHAFT- pivot

1шт.

48

NSS

NOT SOLD SEPARAT

ANGLE

1шт.

49

60-4887T1

FLANGED BEARING

BEARING, Flanged

2шт.

50

60-4891T1

SPRING

- return

1шт.

53

60-4877T91

SEAT

MOUNT - upper seat, Includes Ref: 54

1шт.

54

60-4881T1

CLIP,ELECTRICAL

CLIP - cable retaining

2шт.

60-4894T91

SLIDE

MOUNT ASSEMBLY - slide bar, Includes Ref: 57-65

1шт.

57

NSS

NOT SOLD SEPARAT

MOUNT-slide bar

1шт.

58

60-1613T1

FASTENER

- snap, boot

12шт.

59

1-2503

RIVET,Pop, .146" x .425"

- pop, 5/32 x 1/4 inch

1шт.

60

19-699

WASHER,3/16"

- flat, 1/4 inch

1шт.

61

60-4881T1

CLIP,ELECTRICAL

CLIP - cable retaining

2шт.

62

60-4895T1

CLAMP

- hose

1шт.

63

60-4883T1

SPRING

- carrier return

1шт.

64

60-4882T1

RING, SNAP

RETAINER - push-on

2шт.

65

60-4884T1

HANDLE

- raise and lower

1шт.

67

60-4913T1

PLATE

STRIP - backup, boot

1шт.

68

60-4912T1

PLATE

STRIP - backup, boot

1шт.

69

60-1632T1

PLATE

STRIP - backup, boot

1шт.

70

60-4898T1

HOSE,450.00 mm

1шт.

71

60-4899T1

HOSE

- 650 mm

1шт.

72

60-4895T1

CLAMP

- hose

1шт.
