Артикул
Название
Примечание
Количество
60-5802T91
SEAT ASSY.

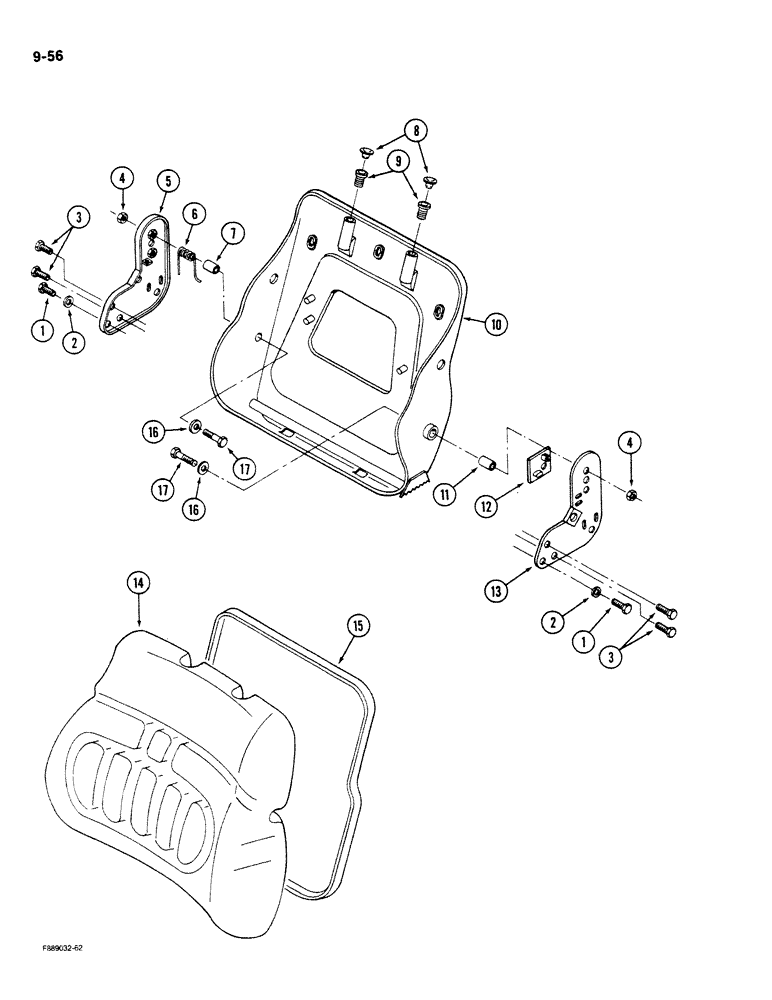

SEAT ASSEMBLY - mechanical suspension, vinyl upholstery (Continued from Figure: 9-54)
1шт.
1
19-214
BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5
- hex, 7/16 NF x 1-3/4 inch
2шт.
2
19-193
LOCK WASHER,Ext Tooth, 7/16"
WASHER - lock, 7/16 inch
2шт.
3
60-4847T1
SCREW
BOLT - hex, M8 x 35 mm
4шт.
4
60-4854T1
SPACER
NUT - hex, M8
2шт.
5
60-4851T1
MOUNTING PARTS
MOUNT - seat back to seat pan, right
1шт.
6
60-4849T1
SPRING
- seat back return
1шт.
7
60-4850T1
SPACER
- right mount
1шт.
8
60-5619T1
PLUG
- headrest mounting hole
2шт.
9
60-1669T1
BUSHING
- headrest mounting hole
2шт.
10
60-5620T1
BACKREST
PAN - backrest
1шт.
11
60-4852T1
SPACER
- left mount
1шт.
12
60-4859T1
SPACER
1шт.
13
60-4858T1
MOUNTING PARTS
MOUNT - seat back to seat pan, left
1шт.
14
33-1393T1
CUSHION
- backrest, vinyl upholstery
1шт.
15
60-1641T1
SUPPORT
EXTRUSION - plastic
1шт.
16
40-1007
WASHER
- flat, M8
2шт.
17
40-1150
CAPSCREW,Hex, M8 x 1.25 x 30mm, Gr 8.8
BOLT - hex, M8 x 30 mm
2шт.
Выбрано товаров: 18
