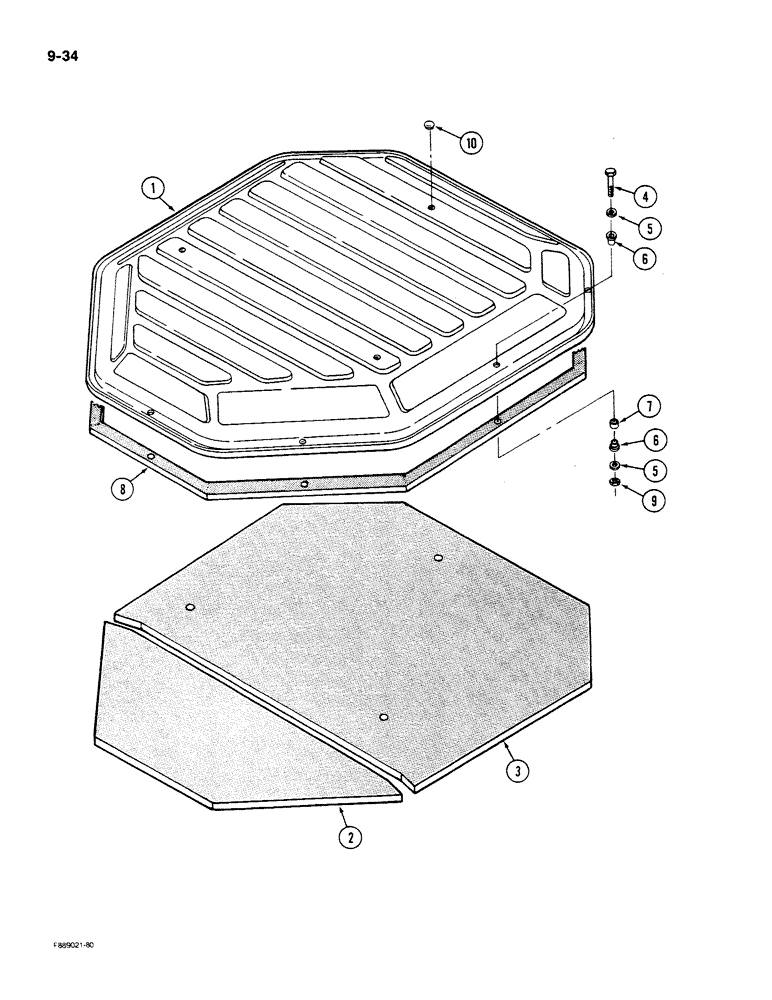

Запчасти Case IH STEIGER (9-034) - ROOF CAP, CAB AND ROPS (09) - CHASSIS/ATTACHMENTS

1

60-4801T2

TOP

CAP - roof top

1шт.

2

60-4657T1

FOAM

INSULATION - roof (Cab only)

1шт.

3

60-4450T2

FOAM

INSULATION - roof (Cab only)

1шт.

4

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

- hex, 1/4 NC x 1-1/2 inch

8шт.

5

9421394

WASHER

- flat, 1/4 x 1 x 1/16 inch

16шт.

6

60-1826T1

BUSHING,6.35mm ID x 14.43mm OD x 14.22mm L

- roof snubber

16шт.

7

60-4584T1

WASHER

SPACER - snubber bushing

8шт.

8

60-4583T1

FOAM

SEAL - roof cap

1шт.

9

19-1081

LOCK NUT

- lock, 1/4 inch NC

8шт.

10

31-2595

PLUG

- lift holes

3шт.
