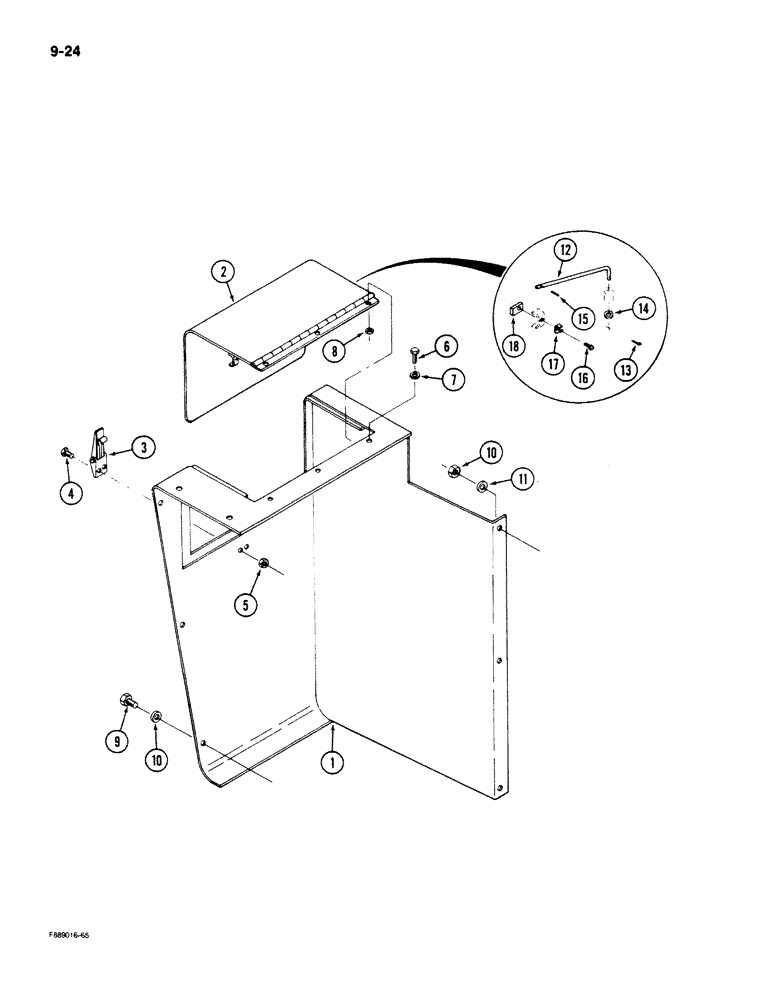

Запчасти Case IH STEIGER (9-024) - HYDRAULIC OIL TANK COVER (09) - CHASSIS/ATTACHMENTS

1

70-4144T2

COVER

- hydraulic oil tank

1шт.

2

70-4151T2

DOOR

- oil tank access

1шт.

3

70-4156T1

LATCH

- access door

1шт.

4

340-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

- machine, pan, No. 6 NC x 1/2 inch

2шт.

5

19-5564

LOCK NUT,#6-32, GB

NUT - lock, No. 6 NC

2шт.

6

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

7

19-700

WASHER,5/16"

- flat, 5/16 inch

3шт.

8

19-508

LOCK NUT

- lock, 5/16 inch NC

3шт.

9

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

5шт.

10

19-107

WASHER

- flat, 3/8 inch

8шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

12

70-4435T1

ROD

- access door

1шт.

13

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

14

19-306

WASHER

- flat, 3/8 inch

1шт.

15

19-5361

LOCK PIN,1/8" x 1 1/4", Slotted

Pin, 1/8" x 1 1/4", Slotted

1шт.

16

421169

GUARD

- machine, round head, No. 2 NC x 3/4 inch

1шт.

17

19-5988

CLIP

- rod retaining

1шт.

18

70-4485T1

NUT

- retainer, plastic

1шт.
