(8-048) - QUICK DISCONNECT COUPLER ASSEMBLY, SINGLE REMOTE

Запчасти Case IH STEIGER (8-048) - QUICK DISCONNECT COUPLER ASSEMBLY, SINGLE REMOTE (08) - HYDRAULICS

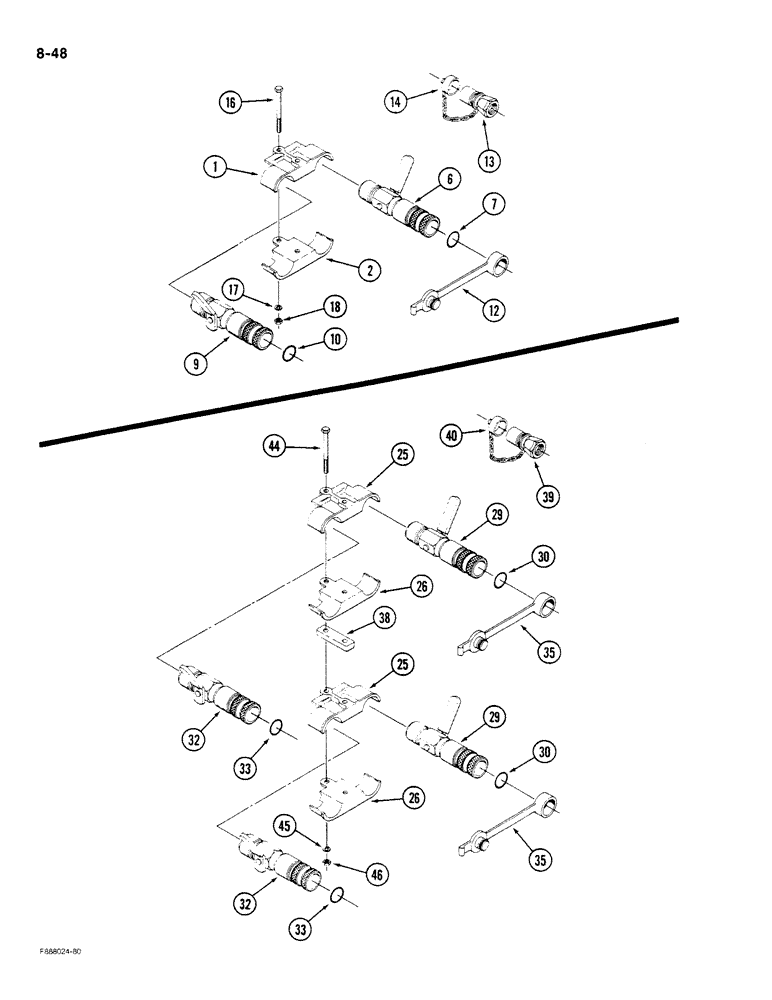

Схема запчастей Case IH STEIGER - (8-048) - QUICK DISCONNECT COUPLER ASSEMBLY, SINGLE REMOTE (08) - HYDRAULICS
39
10
40
1
25
35
32
18
33
25
35
46
30
30
7
12
13
2
26
38
44
32
14
26
33
9
29
16
17
6
45
29
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-1328T92

ASSEMBLY

COUPLER ASSEMBLY - quick, hydraulic, Includes Ref: 1-18

1шт.

1

50-1455T1

CLAMP BRACKET

CLAMP - coupler, top

1шт.

2

50-1454T1

CLAMP BRACKET

CLAMP - coupler, bottom

1шт.

6

50-1459T91

PUSH-PULL COUPLING

COUPLER - quick, red handle, Includes Ref: 7

1шт.

7

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler

1шт.

9

50-1460T91

PUSH-PULL COUPLING

COUPLER - quick, yellow handle, Includes Ref: 10

1шт.

10

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler

1шт.

12

1-7142

CAP

- coupler dust, rubber

2шт.

13

1-7141

FITTING

CARTRIDGE - coupler, remote

2шт.

14

50-2267T1

PLUG

CAP - cartridge dust

2шт.

16

19-279

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8 NC x 3 inch

2шт.

17

19-117

LOCK WASHER,3/8"

3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

50-1399T92

COUPLING

COUPLER ASSEMBLY - quick, hydraulic, Includes Ref: 25-46

1шт.

25

50-1455T1

CLAMP BRACKET

CLAMP - coupler, top, quick disconnect assembly, double remote

2шт.

26

50-1454T1

CLAMP BRACKET

CLAMP - coupler, bottom, quick disconnect assembly, double remote

2шт.

29

50-1459T91

PUSH-PULL COUPLING

COUPLER - quick, red handle, disconnect assembly, double remote, Includes Ref: 30

2шт.

30

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler, quick disconnect assembly, double remote

2шт.

32

50-1460T91

PUSH-PULL COUPLING

COUPLER - quick, yellow handle, disconnect assembly, double remote, Includes Ref: 33

2шт.

33

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler, quick disconnect assembly, double remote

2шт.

35

1-7142

CAP

- coupler dust, rubber, quick disconnect assembly, double remote

4шт.

38

50-1604T1

SPACER

- coupler, quick disconnect assembly, double remote

1шт.

39

1-7141

FITTING

CARTRIDGE - coupler, remote, quick disconnect assembly, double remote

4шт.

40

50-2267T1

PLUG

CAP - cartridge dust, quick disconnect coupler assembly, double remote

4шт.

44

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch, quick disconnect coupler assembly, double remote

2шт.

45

19-117

LOCK WASHER,3/8"

quick disconnect coupler assembly, double remote 3/8"

2шт.

46

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Quick disconnect coupler assembly, double remote 3/8"-16, G5

2шт.
