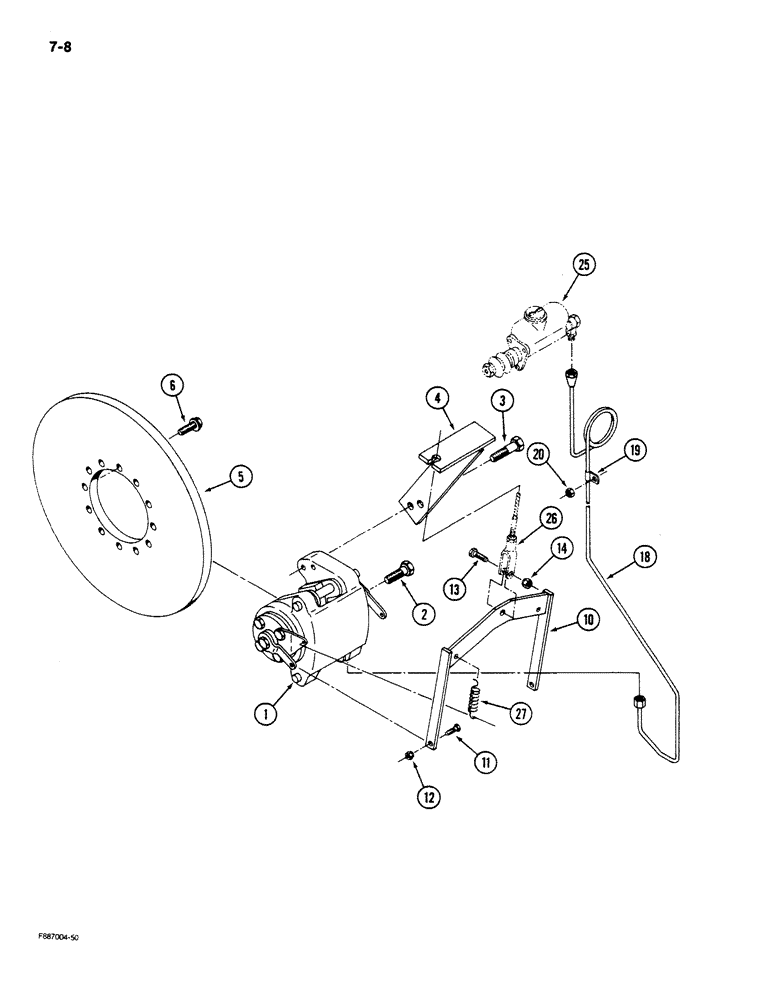

Запчасти Case IH STEIGER (7-008) - BRAKE SYSTEM, K592 AXLE (07) - BRAKES

1

REF

INSTRUCTION

CALIPER ASSEMBLY - brake (See Figure: 7-10)

1шт.

2

9424760

SCREW,5/8" - 11 x 2", Gr 8

BOLT - hex, 5/8 NC x 2 inch, Grade 8

2шт.

3

9430876

BOLT,5/8" - 11 x 2 1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, Grade 8

2шт.

4

90-6347T1

BRACKET

BRAKE - cable, park brake

1шт.

5

90-4574T1

BRAKE DISC

DISC - brake

1шт.

6

19-6089

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 8

- flanged, 1/2 NF x 1-1/2 inch, Grade 8

12шт.

10

90-4030T1

SUPPORT

BRACKET - actuator, park brake

1шт.

11

19-654

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, Grade 8

2шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, 5/16 inch NC

2шт.

13

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8

1шт.

14

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, 3/8 inch NC

1шт.

18

90-6728T1

TUBE,.25" OD

ASSEMBLY - brake line

1шт.

19

31-1862

CLAMP

- tube

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY - master (See Figure: 7-2)

1шт.

26

REF

INSTRUCTION

CABLE - park brake (See Figure: 7-4)

1шт.

27

REF

INSTRUCTION

SPRING - return, park brake (See Figure: 7-10)

2шт.
