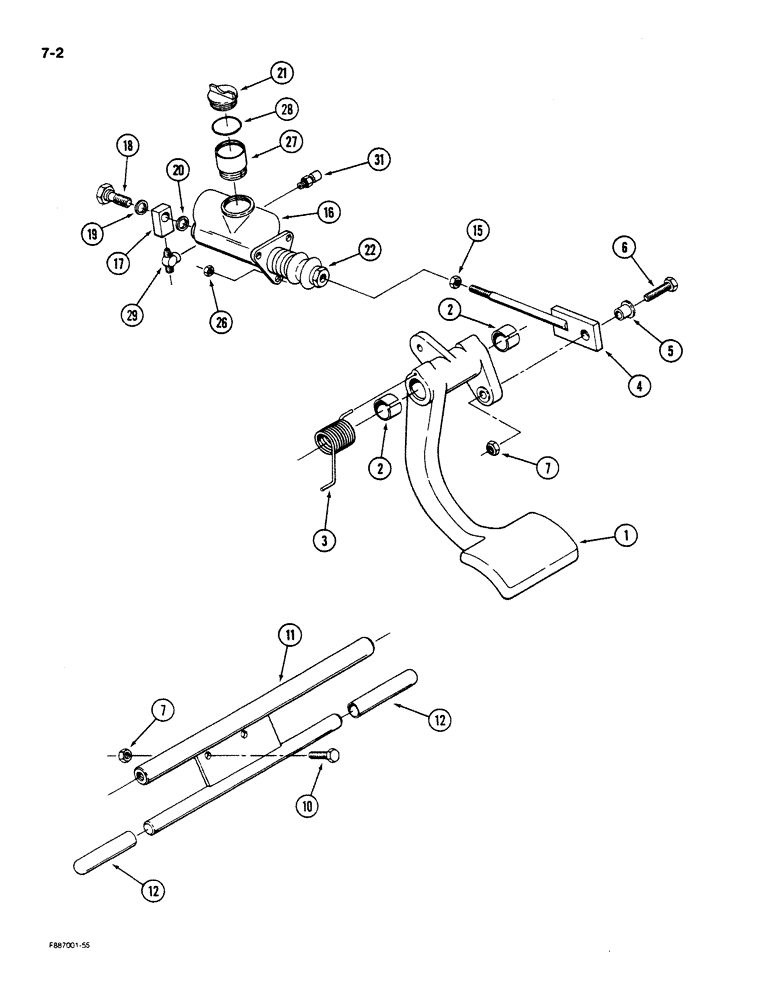

Запчасти Case IH STEIGER (7-002) - BRAKE CONTROLS (07) - BRAKES

1

60-4251T2

PEDAL

- brake

1шт.

2

24-208

BEARING ASSY,1" ID x 1.125" OD x 0.75"

BEARING - pivot, split

2шт.

3

11-19

SPRING

- torsion, pedal return

1шт.

4

60-4306T1

THREADED ROD

ROD - push, master cylinder

1шт.

5

60-4337T1

FLANGED BEARING

BEARING - flanged

1шт.

6

19-46

BOLT,1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

1шт.

7

19-653

LOCK NUT

- hex, lock, 1/2 inch NC

3шт.

10

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

11

60-5074T1

PEDAL

MOUNT - pedal, brake and clutch

1шт.

12

1-3520

BUMPER

- pedal stop, brake and clutch

2шт.

15

19-92

NUT,7/16"-20, G2

- hex, 7/16 inch NF

1шт.

16

1-2961T91

KIT

CYLINDER - master, brake, Includes Ref: 16-22

1шт.

16

35-1079

SEAL KIT

- rebuild, master cylinder

1шт.

This is a seal kit for P/N 1-2961T91 Cylinder which has a 1.000" bore. P/N 35-1894T91 is seal kit for P/N 90-7554T91 which has a .88" bore.

1шт.

17

31-664

FITTING

- swivel

1шт.

18

31-663

BANJO BOLT

BOLT - hex, outlet port

1шт.

19

1-1799

GASKET

- fitting

1шт.

20

1-1800

GASKET

- fitting

1шт.

21

1-9956

PLUG

CAP - master cylinder

1шт.

22

1-2960

STEM

ROD - push, master cylinder with boot

1шт.

26

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

3шт.

27

60-4546T1

INSERT

EXTENSION - stand off, master cylinder

1шт.

28

60-4581T1

GASKET

- master cylinder cap

1шт.

29

1-3100

TEE

- fitting, 1/8 NPT x 1/8 NPT x 7/16 inch thread

1шт.

31

22-729

SWITCH

- brake light

1шт.
