Запчасти Case IH STEIGER (6-094) - WHEEL HUBS, K592 BAR AXLES (06) - POWER TRAIN

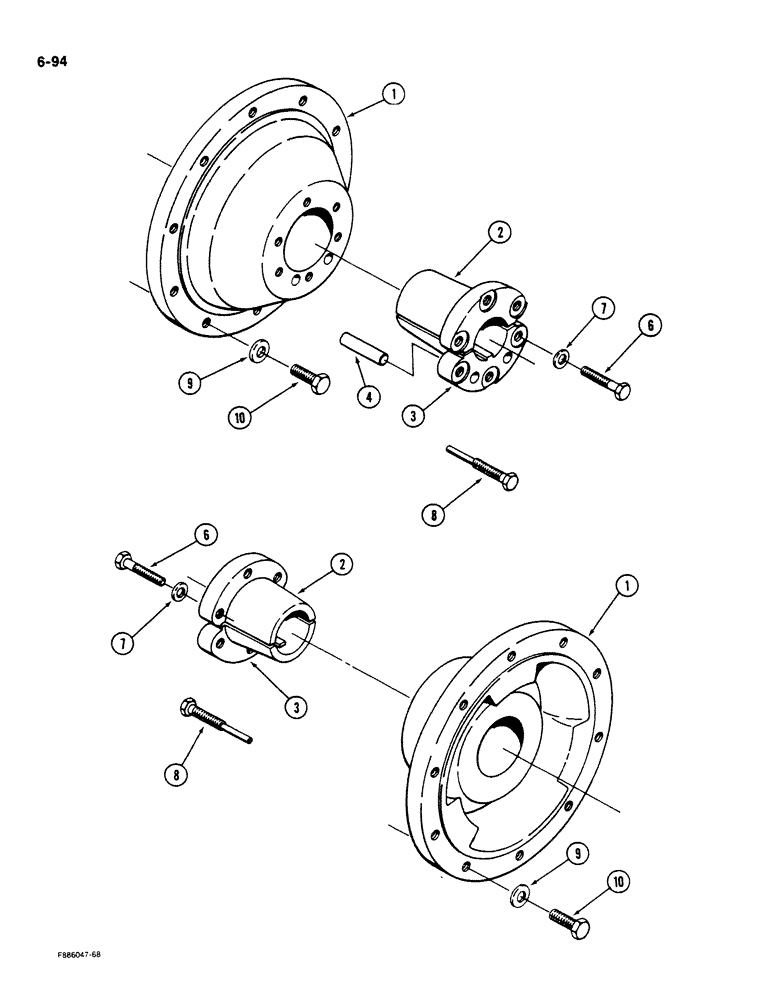

Схема запчастей Case IH STEIGER - (6-094) - WHEEL HUBS, K592 BAR AXLES (06) - POWER TRAIN
6
9
1
1
7
10
8
7
9
3
4
10
2
6
8
2
3

Артикул

Название

Примечание

Количество

1

30-1326T1

HUB

- wheel

4шт.

2

30-1327T1

HALF-BUSHING

BUSHING - half, axle

4шт.

3

30-1328T91

BUSHING

- half, axle, Includes Ref: 4

4шт.

4

19-6254

PIN

- dowel, 15/16 x 2 inch

8шт.

6

19-6172

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 8

- hex, 3/4 NC x 3-3/4, inch Grade 8

24шт.

7

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 inch

24шт.

8

30-1331T1

BOLT,7/8" - 12 x 6 1/2", Gr 8

- shouldered

8шт.

9

19-2975

WASHER

- flat, hardened

40шт.

10

26053R1

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

40шт.

Выбрано товаров: 9
