Запчасти Case IH STEIGER (6-050) - TRANSMISSION LUBRICATION, WITH PTO SYSTEM, P.I.N. 17900169 AND AFTER (06) - POWER TRAIN

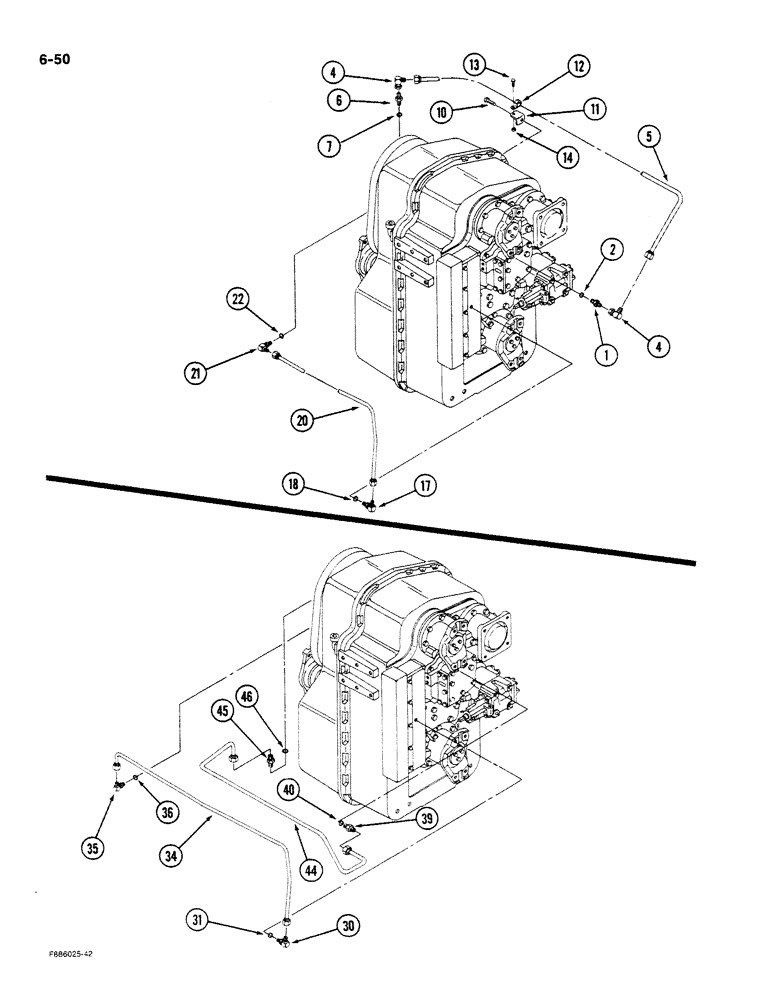

Схема запчастей Case IH STEIGER - (6-050) - TRANSMISSION LUBRICATION, WITH PTO SYSTEM, P.I.N. 17900169 AND AFTER (06) - POWER TRAIN
4
6
22
35
10
21
11
20
14
39
7
18
36
34
31
44
12
5
4
30
1
2
13
46
45
17
40

Артикул

Название

Примечание

Количество

1

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 x 3/4 inch thread

1шт.

2

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

4

31-619

ELBOW

- 90 degree, 3/4 x 3/4 inch thread

2шт.

5

90-6889T1

TUBE,.5" OD

- lubrication

1шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

10

SM8121240

BOLT

BOLT - hex, M12 x 1.75 x 40 mm

1шт.

11

90-6894T1

SUPPORT

BRACKET - tube support

1шт.

12

31-1775

CLAMP

- tube

1шт.

13

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

31-2200

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16 x 3/4 inch thread

1шт.

18

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

90-6691T1

TUBE,.5" OD

- lubrication

1шт.

21

31-367

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degree, 7/8 x 3/4 inch thread

1шт.

22

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

30

31-2200

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16 x 3/4 inch thread, transmission lubrication, with PTO system to 17900169

1шт.

31

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

transmission lubrication, with PTO system 6-1, 90 Duro, .468" ID x .078" Thk to 17900169

1шт.

34

90-6526T1

TUBE,5 mm OD x 31.23, 13.68 mm L

- lubrication, transmission, with PTO system to 17900169

1шт.

35

31-367

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degree, 7/8 x 3/4 inch thread, transmission lubrication, with PTO system to 17900169

1шт.

36

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch, transmission lubrication, with PTO system to 17900169

1шт.

39

31-462

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 x 7/8 inch thread, transmission lubrication, with PTO system to 17900169

1шт.

40

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch, transmission lubrication, with PTO system to 17900169

1шт.

44

90-6525T1

TUBE,.625" OD

- lubrication, transmission, with PTO system to 17900169

1шт.

45

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, 7/8 x 7/8 inch thread, transmission lubrication, with PTO system to 17900169

1шт.

46

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch, transmission lubrication, with PTO system to 17900169

1шт.

Выбрано товаров: 26
