Запчасти Case IH STEIGER (6-026) - TRANSMISSION, REGULATOR VALVE (06) - POWER TRAIN

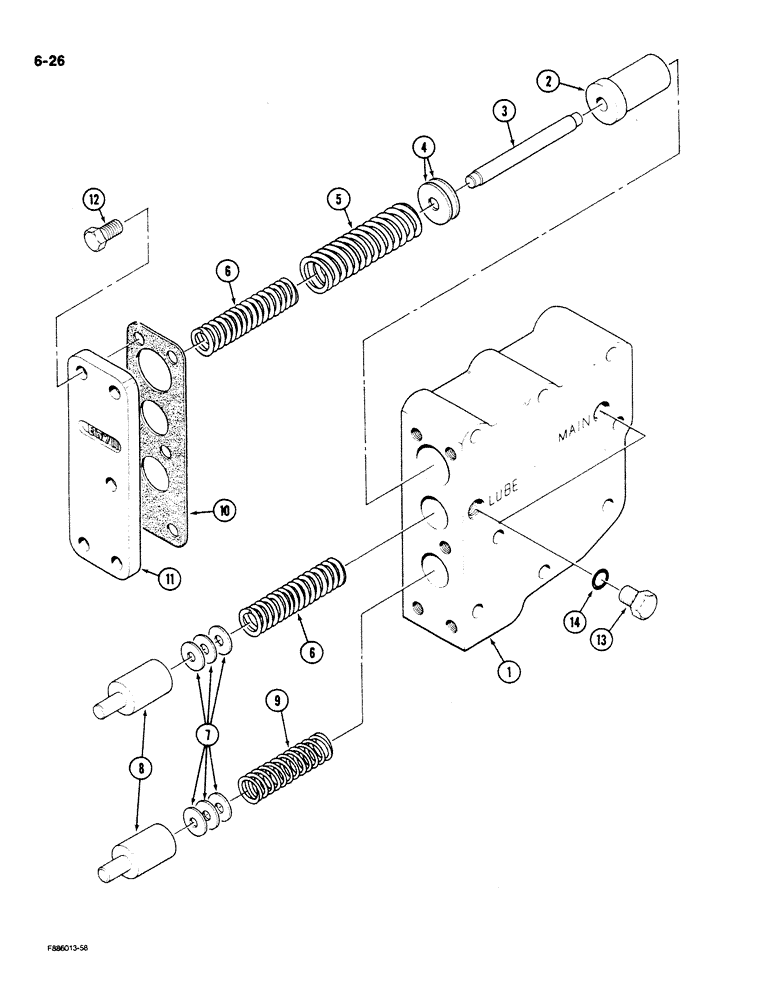

Схема запчастей Case IH STEIGER - (6-026) - TRANSMISSION, REGULATOR VALVE (06) - POWER TRAIN
13
2
6
6
12
7
9
5
4
3
10
1
8
14
11

Артикул

Название

Примечание

Количество

90-6256T91

TRANSMISSION

ASSEMBLY (Continued from Page 6-24), Includes Ref: 1-14

1шт.

S7000S00F

VALVE

ASSEMBLY - regulator, Includes Ref: 1-14

1шт.

1

S7040S00F

VALVE BODY

BODY - regulator valve

1шт.

2

S7030S00F

VALVE

- regulator

1шт.

3

S7020S00F

STEM

ROD - pressure

1шт.

4

S7010S00F

SHIM,.039" Thk

1шт.

5

S7120S00F

SPRING

- compression

1шт.

6

S7050S00F

SPRING

- compression

2шт.

7

S7080S00F

SHIM,.031" Thk

1шт.

8

S7080S00F

SHIM,.031" Thk

VALVE - lube

1шт.

9

S7070S00F

SPRING

- compression

1шт.

10

S7090S00F

GASKET

valve cover

1шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

11

S7110S00F

COVER

- valve body

1шт.

12

SM8120820

BOLT

BOLT - hex, M8 x 1.25 x 20 mm

5шт.

13

S1030S00F

PLUG

- o-ring boss, Includes Ref: 14

2шт.

14

S1040S00F

O-RING

- plug

2шт.

S1670S00F

GASKET

KIT Transmission, Includes: Ref. 10

1шт.

Выбрано товаров: 18
