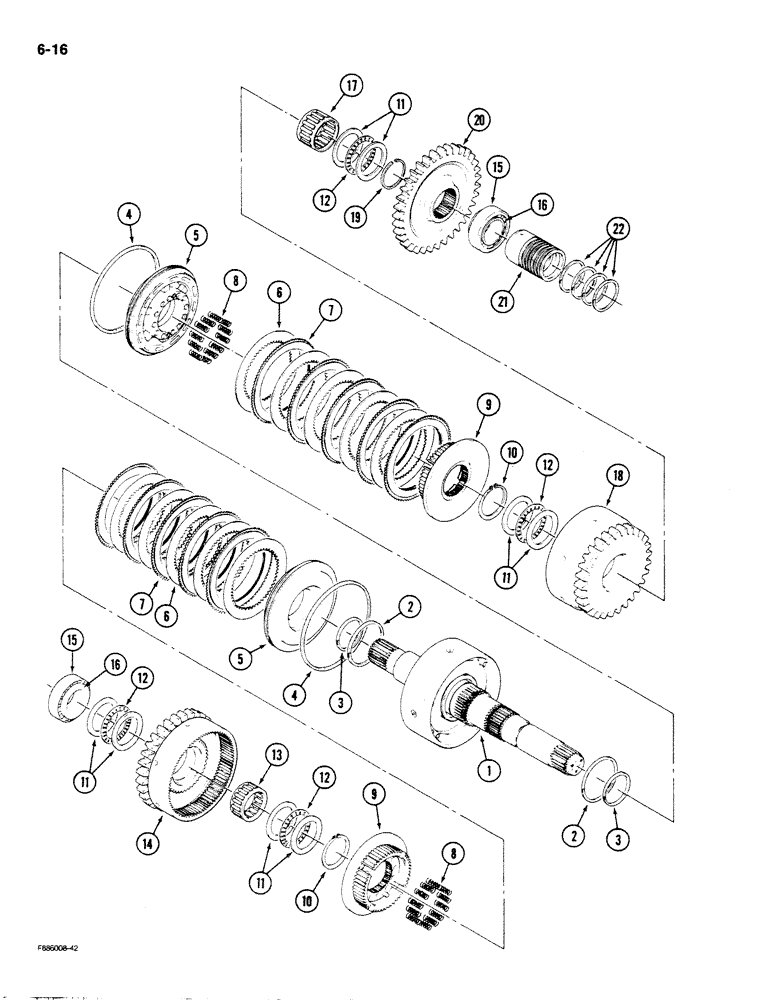

Запчасти Case IH STEIGER (6-016) - TRANSMISSION, 7 INCH CLUTCH PACK, INPUT (06) - POWER TRAIN

90-6256T91

TRANSMISSION

ASSEMBLY (Continued from Figure: 6-14), Includes Ref: 1-22

1шт.

S2000S00F

ASSEMBLY

CLUTCH PACK ASSEMBLY - 7 inch input, Includes Ref: 1-22

1шт.

1

S2900S00F

SHAFT ASSY.

SHAFT ASSEMBLY - drum

1шт.

2

S2620S00F

RING

piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

3

S2610S00F

RING

piston

2шт.

4

S2630S00F

RING

sealing

2шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

5

S2180S00F

PISTON

clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

PLATE steel, flat, 2.4 mm thick

1шт.

Steel plates, Ref. 6; a total of 10 pieces must be used.

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

PLATE steel, flat, 2.1 mm thick

1шт.

Steel plates, Ref. 6; a total of 10 pieces must be used.

1шт.

7

S2050S00F

LARGE PLATE

PLATE - faced

10шт.

8

S2640S00F

SPRING

- return, piston (Replaces S2540S00F)

24шт.

9

S2850S00F

HUB

- clutch

2шт.

10

S2100S00F

RING, SNAP

RING - snap

2шт.

11

S2200S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

12

S2230S00F

BEARING

- thrust

4шт.

13

S2030S00F

BEARING, ROLLER

BEARING - roller

1шт.

14

S2040S00F

PINION

GEAR - drive (32 Teeth)

1шт.

15

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.

16

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE ASSEMBLY - bearing

2шт.

17

S2210S00F

BEARING, ROLLER

BEARING - roller

1шт.

18

S2280S00F

PINION

GEAR - drive (29 Teeth)

1шт.

19

S2240S00F

RING, SNAP

RING - retaining

1шт.

20

S2270S00F

PINION

GEAR - input (35 Teeth)

1шт.

21

S2410S00F

CARRIER FLANGE SEAL

CARRIER - piston ring

1шт.

22

S2250S00F

SEALING RING

RING sealing

4шт.

Part of Transmission Gasket Kit P/N S1670S00F.

1шт.

S1670S00F

GASKET

KIT Transmission, Includes: Refs. 2, 4 and 22

1шт.
