Запчасти Case IH STEIGER (6-002) - TRANSMISSION MOUNTING (06) - POWER TRAIN

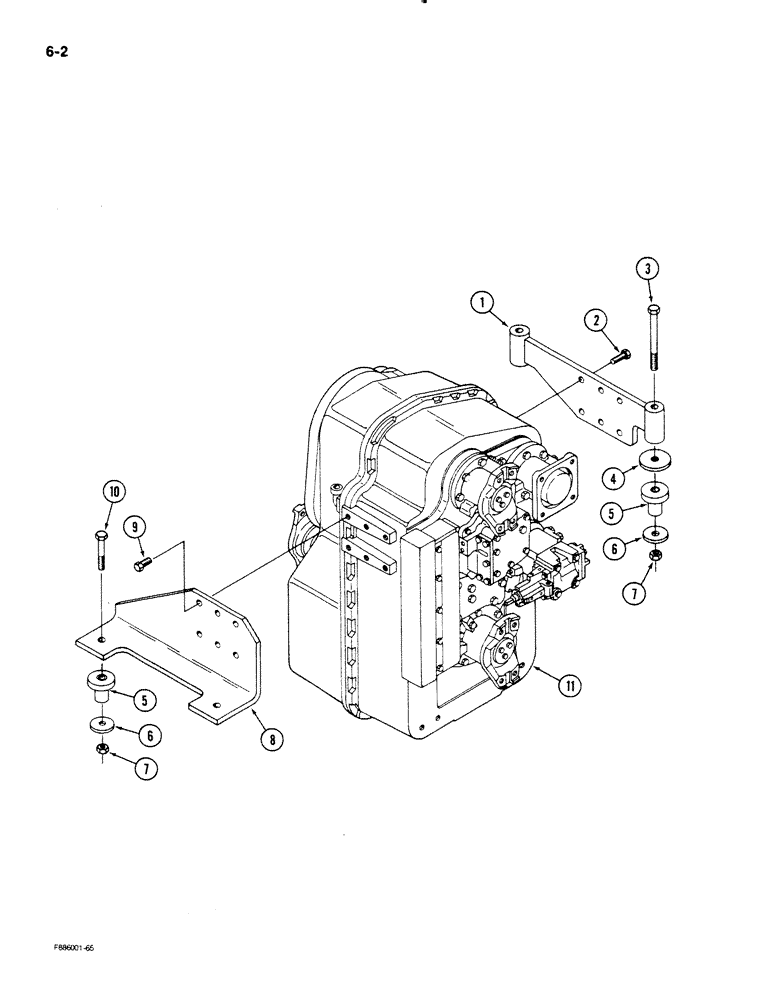

Схема запчастей Case IH STEIGER - (6-002) - TRANSMISSION MOUNTING (06) - POWER TRAIN
7
11
1
3
2
10
5
9
7
5
8
4
6
6

Артикул

Название

Примечание

Количество

1

90-6252T1

BRACKET

MOUNT - transmission, left hand

1шт.

2

19-57

BOLT,5/8" - 11 x 1 3/4", Gr 5

- hex, 5/8 NC x 1-1/4 inch

6шт.

3

113-759

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

4

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

- flat, 3/4 x 3-3/4 x 3/16 inch

2шт.

5

47-4172

SHOCK ABSORBER

MOUNT - rubber, isolator

4шт.

6

19-5781

WASHER

- flat, 3/4 x 2-3/4 x 5/16 inch

4шт.

7

19-85

LOCK NUT

- lock, 3/4 NC

4шт.

8

90-6255T1

SUPPORT

MOUNT - transmission, right hand

1шт.

9

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

6шт.

10

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

11

90-6256T91

TRANSMISSION

ASSEMBLY

1шт.

Выбрано товаров: 11
