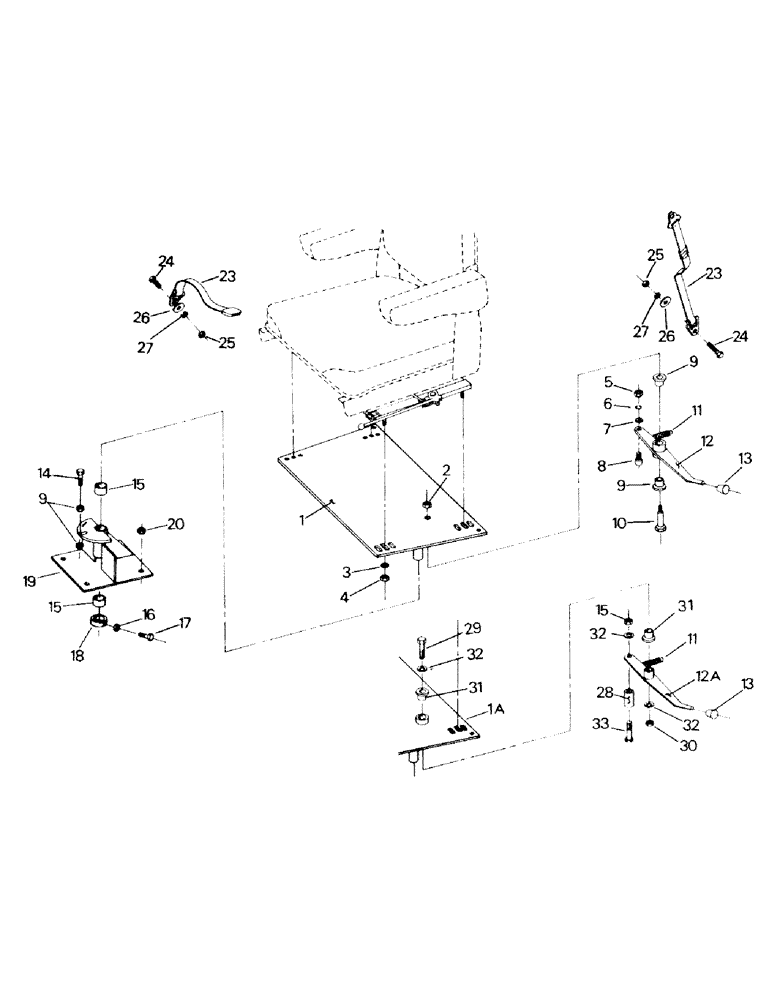

Запчасти Case IH ST470 (01-13) - SEAT MOUNTING, BOSTROM, BSN 129-00010 AND 130-00198 (10) - CAB

1

24-201

LARGE PLATE

Seat Plate (D)

1шт.

The later improved version of item 1 can be identified by the bushing welded into the lever mt. hole. If replacement is needed, the later style parts should be ordered due to the improved performance & durability.

1шт.

1a

1-7608

LARGE PLATE

Seat Plate (D)

1шт.

2

19-295

NUT,Jam, 3/8" - 16, Gr 5

1шт.

3

19-700

WASHER,5/16"

4шт.

4

19-77

NUT,5/16"-18, G5

4шт.

5

19-91

NUT,3/8"-24, G5

1шт.

6

19-117

LOCK WASHER,3/8"

3/8"

1шт.

7

19-224

WASHER,3/8", SAE

1шт.

8

24-202

BEARING

Cam Follower

1шт.

9

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

Bearing

2шт.

10

19-935

CAPSCREW,Shoulder, .375 - 16 x 2 1/8", Gr 8

1шт.

11

11-16

SPRING

1шт.

12

24-207

Handle (D) (Early Style)

1шт.

12a

1-7607

Handle (D) (Later Style)

1шт.

13

18-646

KNOB

1шт.

14

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

Capscrew

1шт.

15

19-78

SPECIAL NUT,3/8"-16, G5

2шт.

16

54-406

BUSHING,1.9385" ID x 1"

Journal

2шт.

17

19-76

NUT,1/4"-20, G5

1шт.

18

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Capscrew

1шт.

19

24-198

COLLAR

1шт.

20

1-4573

Seat Stand

1шт.

21

19-51

BOLT,1/2" - 20 x 1 1/2", Gr 5

Capscrew

4шт.

22

19-94

NUT

Lock Nut

4шт.

24-60

SAFETY BELT ,2.00" W

SAFETY BELT, , Consists of Ref. 23-27 2.00" W

1шт.

23

1-2190

SAFETY BELT

Seat Belt

1шт.

24

1-2189

BOLT

Shoulder Bolt

2шт.

25

19-92

NUT,7/16"-20, G2

2шт.

26

24-166

SAFETY BELT

Reinforcing Plate

2шт.

27

19-118

LOCK WASHER,7/16"

7/16"

2шт.

28

1-7618

BUSHING

1шт.

29

19-279

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Capscrew

1шт.

30

19-341

LOCK NUT,3/8" - 16, GB

1шт.

31

1-7610

Bearing

2шт.

32

19-107

WASHER

3шт.

33

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Capscrew

1шт.
