Запчасти Case IH ST470 (02-24) - UPPER CAB AND CONSOLE ELECTRICAL (06) - ELECTRICAL

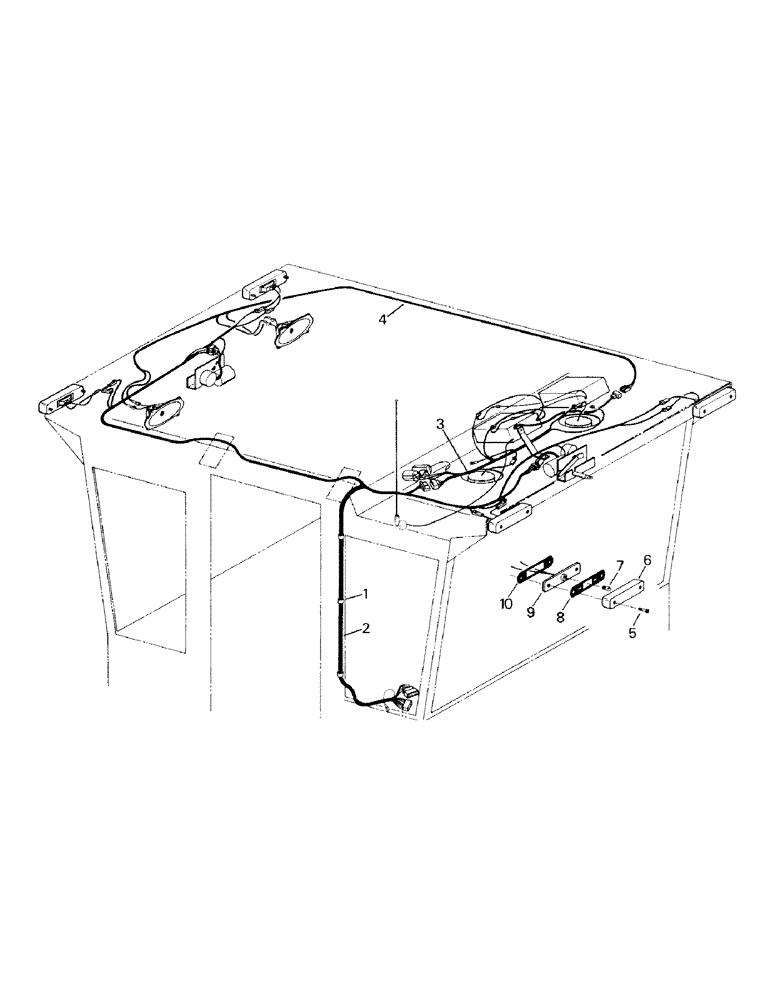

Схема запчастей Case IH ST470 - (02-24) - UPPER CAB AND CONSOLE ELECTRICAL (06) - ELECTRICAL
2
1
3
5
6
7
10
4
8
9

Артикул

Название

Примечание

Количество

1

22-821

CLIP

Clamp

3шт.

2

1-5970

HARNESS

Wire Harness, Upper Cab Console

1шт.

3

1-4599

Wire Harness, Front Console (Early Style)

1шт.

20-1377T1

HARNESS

Wire Harness, Front Console (Later Style)

1шт.

4

1-4826

HARNESS

Wire Harness, Speaker (Early Style Front Console)

1шт.

20-1298T2

HARNESS

Wire Harness, Speaker (Later Style Front Console)

1шт.

22-665

LIGHT, WARNING

Warning Light Assembly, consists of Ref. 5-10

4шт.

5

19-1104

SCREW,Cross Pan Hd, #8 - 32 x 1 3/4", Shldrd

#8 x 1-3/4 UNC

8шт.

6

NSS

NOT SOLD SEPARAT

Lens

4шт.

7

22-667

BULB

4шт.

8

22-663

GASKET

4шт.

9

NSS

NOT SOLD SEPARAT

Housing

4шт.

10

22-664

GASKET

4шт.

Выбрано товаров: 13
