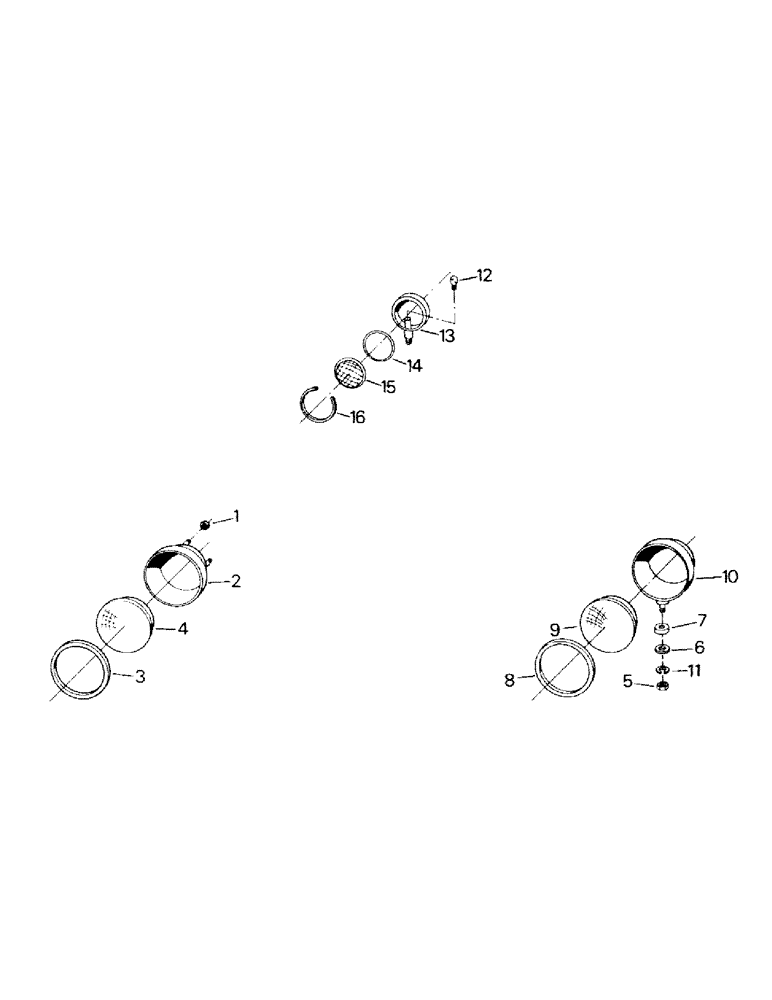

Запчасти Case IH ST470 (02-23) - LAMP ASSEMBLIES (06) - ELECTRICAL

22-657

LIGHT ASSY.

Lamp Assembly (Hi-Lo), consists of Ref. 1-4

2шт.

22-661

LAMP

Assembly (Lo)

2шт.

1

19-567

NUT,#10-24

#10 UNC

12шт.

2

22-659

FRAME ASSY

Frame Assembly

4шт.

3

22-660

RETAINER

4шт.

4

22-658

LAMP

(Hi-Lo)

2шт.

22-662

BULB

Lamp (Lo)

2шт.

22-655

LIGHT

Field Light (Rear), consists of Ref. 5-11

6шт.

47-4280

Field Light (Front)

4шт.

5

19-237

NUT,Jam, 1/2" - 20, Gr 5

Jam Nut, 1/2 UNF

10шт.

6

22-367

SPRING WASHER

10шт.

7

22-366

BUSHING

10шт.

8

22-660

RETAINER

10шт.

9

22-656

LAMP

(Rear)

6шт.

1-8079

Lamp (Front)

4шт.

10

NSS

NOT SOLD SEPARAT

Housing

10шт.

11

19-119

LOCK WASHER,1/2"

1/2"

10шт.

22-668

LIGHT

Tail Light, consists of Ref. 12-16

2шт.

12

22-286

BULB

2шт.

13

NSS

NOT SOLD SEPARAT

Housing

2шт.

14

22-285

GASKET

2шт.

15

22-284

LENS

2шт.

16

22-283

OIL SEAL

Retainer

2шт.
