Запчасти Case IH ST470 (02-21) - FRAME ELECTRICAL (06) - ELECTRICAL

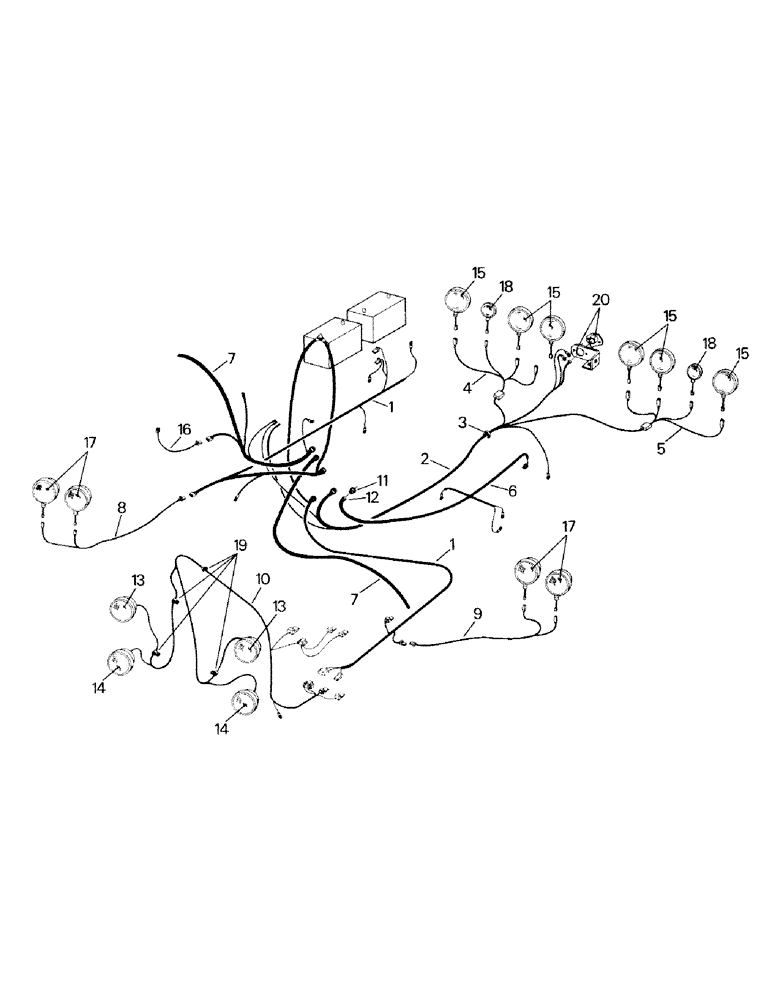

Схема запчастей Case IH ST470 - (02-21) - FRAME ELECTRICAL (06) - ELECTRICAL
14
1
12
15
4
18
6
15
5
15
20
2
13
8
15
11
7
7
17
16
18
17
1
9
10
14
13
3
19

Артикул

Название

Примечание

Количество

1

TX-4663

Wire Harness, Front Frame (Left) (6-Plug connectors)

1шт.

TX-4690

Wire Harness, Front Frame (Right) (6-Plug Connectors)

1шт.

On later models with the single plug packard style connector, these two wire harnesses (TX-4663 & TX-4690) have been incorporated into a single front frame harness.

1шт.

1-8628T1

HARNESS

Wire Harness, Front Frame (Single Plug connectors) (01-8628)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Serial Number Breaks on P/N 01-8628T1 & 20-1496T1 ST 450, 129-01502 ST 470, 130-01529 (March 15, 1982) P/N 20-1496T1 can be used only after serial number break or whenever 01-8628T1 is used as a replacement for 01-8628.

1шт.

2

TX-4537

Wire Harness, Rear Frame (6-Plug connectors)

1шт.

1-8629

Wire Harness, Rear Frame (Single Plug connector)

1шт.

3

31-1244

CLAMP

1шт.

4

47-4536

HARNESS

Wire Harness, Rear Lights (LH)

1шт.

5

47-4535

HARNESS

Wire Harness, Rear Lights (RH)

1шт.

6

TX-4689

Wire Harness, Trans (is part of item 1 on later single plug connectors)

1шт.

7

Wire Harness, Engine (see figure, Serial Range: 2-1-2-4)

1шт.

8

47-4694

ELECTRICAL WIRE

Wire Harness, Field Lights (RH)

1шт.

9

47-4695

HARNESS

Wire Harness, Field Lights (LH)

1шт.

10

TX-4709

Wire Harness, Head Lights (6-Plug connectors)

1шт.

1-8648

HARNESS

Wire Harness, Head Lights (Single Plug connector)

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. Order new P/N when old stock is depleted as it will work for all

1шт.

20-1496T1

Wire Harness

1шт.

Serial Number Breaks on P/N 01-8628T1 & 20-1496T1 ST 450, 129-01502 ST 470, 130-01529 (March 15, 1982) P/N 20-1496T1 can be used only after serial number break or whenever 01-8628T1 is used as a replacement for 01-8628.

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. Order new P/N when old stock is depleted as it will work for all

1шт.

11

22-779

PLUG

6шт.

Opposite plug P/N 22-780

1шт.

1-1633

POWER SOCKET,Female, 14 - 16

Female Terminal

1шт.

1-4149

TERMINAL CONNECTOR,8 - 10

Female Terminal

1шт.

12

22-781

CLAMP

Plug Connector

6шт.

13

22-657

LIGHT ASSY.

Lamp Assy (Hi-Lo) (see Fig. 2-23)

2шт.

14

22-661

LAMP

Assy (Lo) (see Fig. 2-23)

2шт.

15

22-655

LIGHT

Field Light (see Fig. 2-23)

6шт.

16

47-4712

ELECTRICAL WIRE

Wire Harness, Neutral Switch

1шт.

17

47-4280

Field Light (see Fig. 2-23)

4шт.

18

22-668

LIGHT

Tail Light (see Fig. 2-23)

2шт.

19

32-69

CLAMP

4шт.

20

22-789

SOCKET

Implement Socket (mounting items listed below)

1шт.

1-4819

BRACKET

1шт.

22-790

COVER

Boot

1шт.

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew, 5/16 UNC x 1

2шт.

19-106

WASHER,5/16", SAE

5/16

2шт.

19-116

LOCK WASHER,5/16"

5/16"

2шт.

19-77

NUT,5/16"-18, G5

5/16 UNC

2шт.

19-675

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

Capscrew, 5/8 UNC x 1-1/4

1шт.

19-120

LOCK WASHER,5/8"

5/8"

1шт.

19-83

NUT,5/8"-11, G5

5/8 UNC

1шт.

19-605

LOCK WASHER,Ext Tooth, 5/16"

5/16

1шт.

22-1143

PLUG

Optional Mating Plug for Implement Socket

1шт.

Выбрано товаров: 45
