Запчасти Case IH ST470 (02-17) - DASH ELECTRICAL, SINGLE PLUG PACKARD STYLE CONNECTOR (06) - ELECTRICAL

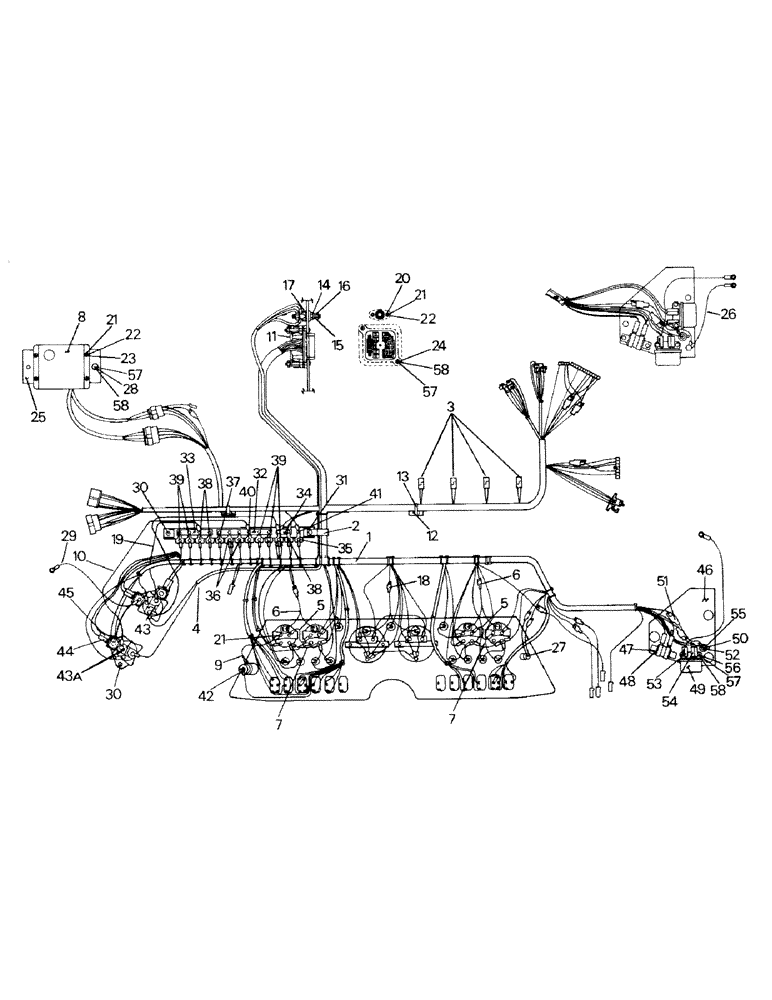

Схема запчастей Case IH ST470 - (02-17) - DASH ELECTRICAL, SINGLE PLUG PACKARD STYLE CONNECTOR (06) - ELECTRICAL
22
14
40
10
17
52
20
21
22
51
23
58
30
43
31
49
39
15
48
6
37
11
28
9
56
12
36
41
6
57
25
33
21
57
44
38
34
16
45
42
29
5
50
7
24
3
38
19
58
5
13
35
32
54
39
2
4
8
53
1
21
18
57
5
27
58
30
43a
46
7
47
26

Артикул

Название

Примечание

Количество

1

1-8742

HARNESS

Wire Harness, Cab & Instrument

1шт.

Wire harness P/N 01-8742T3 is identical to early style wire harness P/N 01-8742T1 and will replace 01-8742 as the only change was the addition of Ref. 10 and 19 as a part of the harness. Wire harness P/N 20-1227T1 is used ASN 129-00007 and 130-00179 with the new audio alarm, 20-1216T91, which will sound, but the actual shutdown of the engine will not occur.

1шт.

1-8742T3

HARNESS

Wire Harness, Cab & Instrument (incl 10 & 19)

1шт.

Wire harness P/N 01-8742T3 is identical to early style wire harness P/N 01-8742T1 and will replace 01-8742 as the only change was the addition of Ref. 10 and 19 as a part of the harness. Wire harness P/N 20-1227T1 is used ASN 129-00007 and 130-00179 with the new audio alarm, 20-1216T91, which will sound, but the actual shutdown of the engine will not occur.

1шт.

20-1227T1

HARNESS

Wire Harness Cab & Instrument (incl 10 & 19)

1шт.

Wire harness P/N 01-8742T3 is identical to early style wire harness P/N 01-8742T1 and will replace 01-8742 as the only change was the addition of Ref. 10 and 19 as a part of the harness. Wire harness P/N 20-1227T1 is used ASN 129-00007 and 130-00179 with the new audio alarm, 20-1216T91, which will sound, but the actual shutdown of the engine will not occur.

1шт.

2

31-2160

CLAMP

1шт.

3

22-738

DIODE

4шт.

4

1-7093

HARNESS

Wire Harness, Dash to Junction Block

1шт.

5

1-3934

HARNESS

Wire Assy, Gauge End to Gauge End

2шт.

6

1-3925

SOCKET

Wire & Socket Assy

6шт.

7

1-3933

HARNESS

Wire Assy, Gauge End to Gauge End

1шт.

8

1-7094

MOLDING

Module, Engine Protection (shown above)

1шт.

Wire harness P/N 01-8742T3 is identical to early style wire harness P/N 01-8742T1 and will replace 01-8742 as the only change was the addition of Ref. 10 and 19 as a part of the harness. Wire harness P/N 20-1227T1 is used ASN 129-00007 and 130-00179 with the new audio alarm, 20-1216T91, which will sound, but the actual shutdown of the engine will not occur.

1шт.

20-1216T91

ALARM

Module, Audio Alarm (see Fig. 2-20)

1шт.

Wire harness P/N 01-8742T3 is identical to early style wire harness P/N 01-8742T1 and will replace 01-8742 as the only change was the addition of Ref. 10 and 19 as a part of the harness. Wire harness P/N 20-1227T1 is used ASN 129-00007 and 130-00179 with the new audio alarm, 20-1216T91, which will sound, but the actual shutdown of the engine will not occur.

1шт.

9

22-802

CABLE

Wire Assy, Gnd

1шт.

10

22-820

ELECTRICAL WIRE

Wire Assy, Circuit Breaker to Solenoid (incorporated into 01-8742T3 & 20-1227T1)

1шт.

11

1-8578

COVER

Harness Connector

1шт.

12

22-823

MOUNT

Mount, Cable Tie

3шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

3шт.

14

20-1150T1

BLOCK

Junction Feed Thru (repl 01-6884)

1шт.

Superseded, Old P/N is not used any longer; the new P/N is to be used in All cases. Old P/N should be removed from existing inventory. It is recomended that the old part not be used under any circumstances.

1шт.

15

19-5577

LOCK WASHER

Lock Washer, 3/8 (Brass)

2шт.

16

115722

Nut (Brass)

3шт.

17

1-7096

GASKET

Junction Block

1шт.

18

1-7574

SOCKET

Wire & Socket Assy

1шт.

19

22-797

HARNESS

Wire Assy, Circuit Breaker to Sol (incorporated into 01-8742T3 & 20-1227T1)

1шт.

20

436751

SCREW,Slotted Pan Hd, #10-32 x 5/8"

Machine Screw

2шт.

21

19-308

NUT,#10 - 32

14шт.

22

19-297

LOCK WASHER,#10

#10

6шт.

23

19-307

SCREW,Hex, #10 - 32 x 1/2", Gr 2

Machine Screw

4шт.

24

19-720

BOLT,1/4" - 20 x 3/4"

Capscrew

2шт.

25

1-7095

Bracket, Protection Module

1шт.

26

20-1250T1

ELECTRICAL WIRE

Wire Assy, Component Assy to Cag End

1шт.

27

1-7128

IGNITION SWITCH

Switch Assy (3408 Engine)

1шт.

28

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew

2шт.

29

1-3927

HARNESS

Wire Assy, Sol End

1шт.

30

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

Capscrew

9шт.

47-4177

BREAKER

Assy, consists of Ref. 31-41

1шт.

31

22-674

BRACKET

13 Hole

1шт.

32

22-675

BAR

Buss Bar, 6 Hole

1шт.

33

47-4176

BAR

Buss Bar, 4 Hole

1шт.

34

22-677

BAR

Buss Bar, 2 Hole

1шт.

35

22-809

BREAKER

5 AMP

1шт.

36

22-669

BREAKER

6 AMP

2шт.

37

22-670

BREAKER

10 AMP

1шт.

38

22-671

BREAKER

15 AMP

3шт.

39

22-672

BREAKER

20 AMP

5шт.

40

22-673

BREAKER

30 AMP

1шт.

41

19-481

SERRATED NUT

1шт.

42

19-282

LOCK NUT

1шт.

43

22-792

SWITCH

Solenoid

2шт.

43a

20-1411T1

CONNECTION,ELECTRIC

Solenoid

1шт.

Can be used as a replacement for Ref. 43 if desired

1шт.

19-98

NUT,1"-14, G5

2шт.

19-116

LOCK WASHER,5/16"

5/16"

2шт.

19-481

SERRATED NUT

Kep Nut (Hardware used w/43 & 43A, not shown)

2шт.

44

22-108

FLASHER UNIT

Flasher

3шт.

45

22-112

BRACKET

Flasher

3шт.

1-7132

CONTROL PANEL

Component Assy, (Early), consists of Ref. 46-58

1шт.

2-3721T91

PLATE

Component Assy, (Later)

1шт.

The difference between these two component assemblies is that P/N 01-7132 contains only 1 relay (Ref. 49) while P/N 02-3721T91 has 2 relays (Ref. 49) on it. A/C Module Harness Kit P/N 35-1287T92 will convert the early style (P/N 01-7132) to the later style (P/N 02-3721T91) as well as provide the latest style wire harness for upgrading the A/C module.

1шт.

46

1-3864T1

LARGE PLATE

Bracket, Component Mtg

1шт.

47

19-3041

SCREW,Hex Flg, #8 - 32 x 1 1/2", Gr 2

Machine Screw

2шт.

48

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.

49

1-3861

RELAY

(see Ref. 48 on Fig. 2-16)

1/2шт.

50

1-3859

INSULATOR

Rectifier

1шт.

51

1-3860

ELECTRICAL WIRE

Wire Assy, Rectifier

1шт.

52

19-5379

NUT

1шт.

53

1-3858

RESISTOR

5 OHM

1шт.

54

1-3857

RESISTOR

2 OHM

1шт.

55

1-3862

RECTIFIER

1шт.

56

19-5391

SCREW,Hex Flg, 1/4" - 20 x 1/2"

Machine Screw

1шт.

57

19-76

NUT,1/4"-20, G5

1шт.

58

19-115

LOCK WASHER,1/4"

1/4"

1шт.

Выбрано товаров: 76
