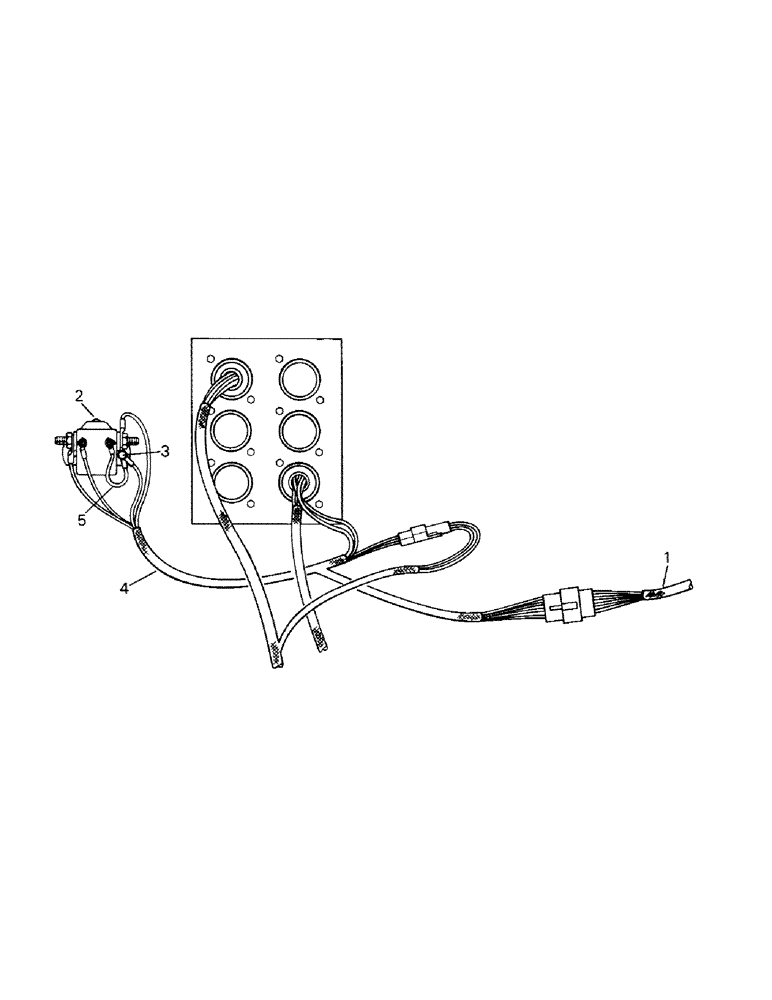

Запчасти Case IH ST470 (02-13) - CAB FRONT ELECTRICAL (06) - ELECTRICAL

1

2-1031

HARNESS

Wire Harness, Shift Control

1шт.

2

20-1608T1

SOLENOID

(06-1496)

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

3

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

2шт.

4

2-2082

Wire Harness, Solenoid

1шт.

5

22-555

Wire -, Serial Range: Solenoid-Ground

1шт.

6

2-2081

Wire Harness, Cab Adapter (not shown) (used under the dash to connect Ref. 4 into the existing dash wiring)

1шт.

7

2-2101

Conversion Kit, Manual to Electric Shift (not shown) (provides transmission hook-ups for Ref. 1 on the transmission)

1шт.
