Запчасти Case IH ST470 (02-11) - ALTERNATOR (06) - ELECTRICAL

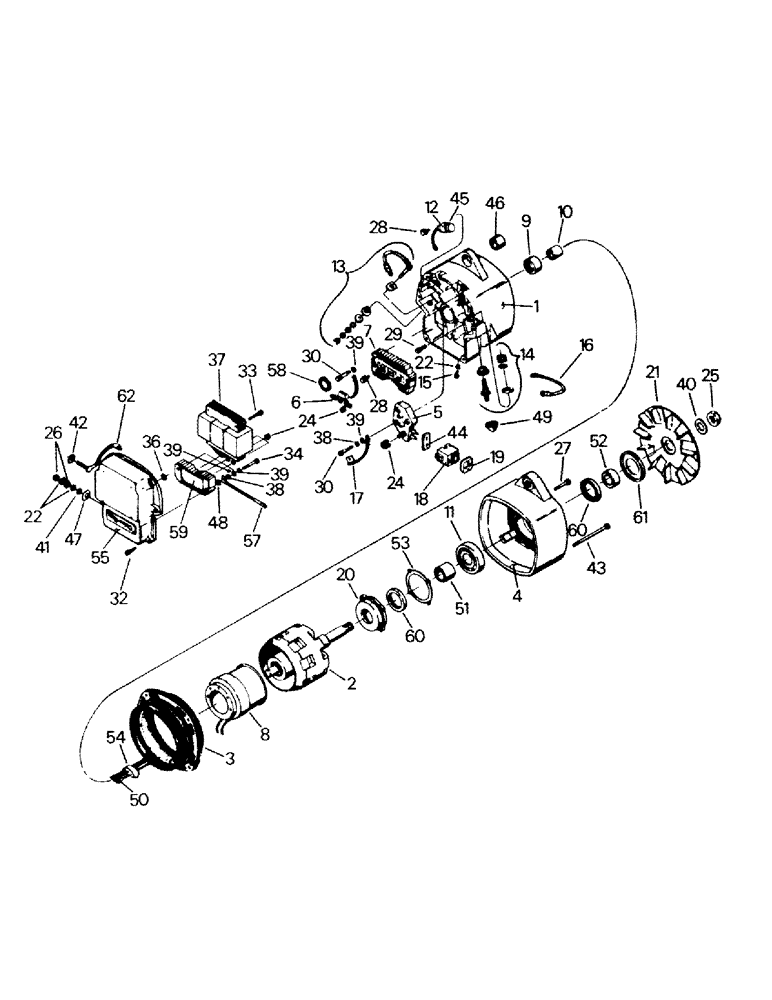

Схема запчастей Case IH ST470 - (02-11) - ALTERNATOR (06) - ELECTRICAL
15
48
25
36
58
13
24
41
20
38
12
44
61
3
34
27
62
38
18
32
22
49
51
29
26
6
4
10
30
43
21
24
42
40
47
28
39
5
28
55
17
39
8
33
39
57
39
54
46
16
19
59
37
2
60
45
11
1
14
52
30
53
60
50
22
9
7

Артикул

Название

Примечание

Количество

47-4089

ALTERNATOR

SPARE PART Alt Assy (Delco #1117481), consists of Ref. 1-62

1шт.

104258A1R

REMAN-ALTERNATOR

24V 40 Amp

1шт.

104258A1C

CORE-ALTERNATOR

Return Number

1шт.

2-1316

HOUSING

Rectifier Housing (incl Ref. 9, 46 & 58)

1шт.

2

22-1053

ROTOR

Rotor Assy

1шт.

3

22-1054

STATOR

SPARE PART Stator Assy (incl Ref. 50 & 54)

1шт.

4

22-1061

FRAME

SPARE PART Frame (incl Ref. 60)

1шт.

5

22-1064

REGULATOR

Regulator

1шт.

6

22-1065

DIODE

Diode

1шт.

7

2-1317

RECTIFIER

Rectifier Bridge

1шт.

8

22-1094

COIL ASSY.

Field Coil

1шт.

9

22-1095

BEARING ASSY,0.875" ID x 1.1875" OD x 0.812"

Bearing, Outer

1шт.

10

22-1096

RACE

Bearing, Inner

1шт.

11

22-1097

BALL

Bearing

1шт.

12

22-1098

CAPACITOR

Capacitor

1шт.

13

22-1099

PACKAGE

Terminal Package, Output

1шт.

14

22-1100

PACKAGE

Terminal Package, Relay

1шт.

15

22-1101

SCREW

Screw, Terminal

1шт.

16

22-1103

ASSEMBLY

Lead, Serial Range: Bridge-Relay

1шт.

17

22-1104

ASSEMBLY

Lead, Serial Range: Bridge-Regulator

1шт.

18

22-1106

ROD, CONNECTING

Connector Body

1шт.

19

22-1105

CAP

Capacitor

1шт.

20

22-1107

RETAINER

Retainer (incl Ref. 60)

1шт.

21

22-1108

FAN

Fan

1шт.

22

22-1007

WASHER

Lock Washer

3шт.

23

2-1318

Nut, Bridge Terminal Stud (not shown)

1шт.

24

22-1022

NUT

Nut & Washer

3шт.

25

22-1024

NUT

Nut, Rotor Shaft

1шт.

26

19-89

NUT,1/4"-28, G5

Nut, Transformer Terminal

2шт.

27

22-1034

SCREW

Screw, Bearing Retainer

1шт.

28

22-1038

SELF-TAP SCREW

Screw

3шт.

29

22-1039

SCREW

Screw, Field Coil

1шт.

30

22-1049

SCREW

Screw, Ground Regulator Attachment

2шт.

31

22-1050

SCREW

Screw, Insulated Regulator Attachment (not shown)

1шт.

32

2-1319

SCREW

Screw, Transformer Housing

4шт.

33

2-1320

SCREW

Screw, Transformer

4шт.

34

2-1321

SCREW

Screw, Transformer Bridge

1шт.

35

22-1101

SCREW

Screw, Transformer Bridge Ground (not shown)

1шт.

36

2-1322

WASHER

Washer

2шт.

37

2-1332

TRANSFORMER

Transformer

1шт.

38

22-1008

WASHER

Washer

4шт.

39

2-1323

WASHER

Washer

6шт.

40

22-1144

WASHER

Washer, Rotor Shaft Nut

1шт.

41

2-1324

WASHER

Washer

1шт.

42

2-1325

WASHER

Washer

1шт.

43

22-1009

BOLT

Bolt

2шт.

44

22-1010

BOOT

Boot

1шт.

45

22-1011

BRACKET

Bracket, Capacitor

1шт.

46

22-1012

BUSHING

Bushing

1шт.

47

2-1326

BUSHING

Bushing

1шт.

48

2-1327

BUSHING

Bushing

1шт.

49

22-1013

CAP

Cap

1шт.

50

22-1014

CLIP

Clip

1шт.

51

22-1015

COLLAR

SPARE PART Collar, Inside

1шт.

52

22-1016

COLLAR

SPARE PART Collar, Outside

1шт.

53

22-1017

GASKET

Gasket

1шт.

54

22-1018

GROMMET

Grommet

1шт.

55

2-1328

HOUSING

SPARE PART Housing, Transformer

1шт.

56

22-1019

INSULATOR

Insulator, Rectifier Bridge (not shown)

1шт.

57

2-1329

ASSEMBLY

Lead Assy

1шт.

58

22-1020

PLUG

Plug

1шт.

59

2-1330

RECTIFIER

Rectifier

1шт.

60

22-1021

OIL SEAL

Seal

2шт.

61

22-1023

SLINGER

Slinger

1шт.

62

2-1331

TERMINAL CONNECTOR

Terminal Stud & Lead

1шт.
