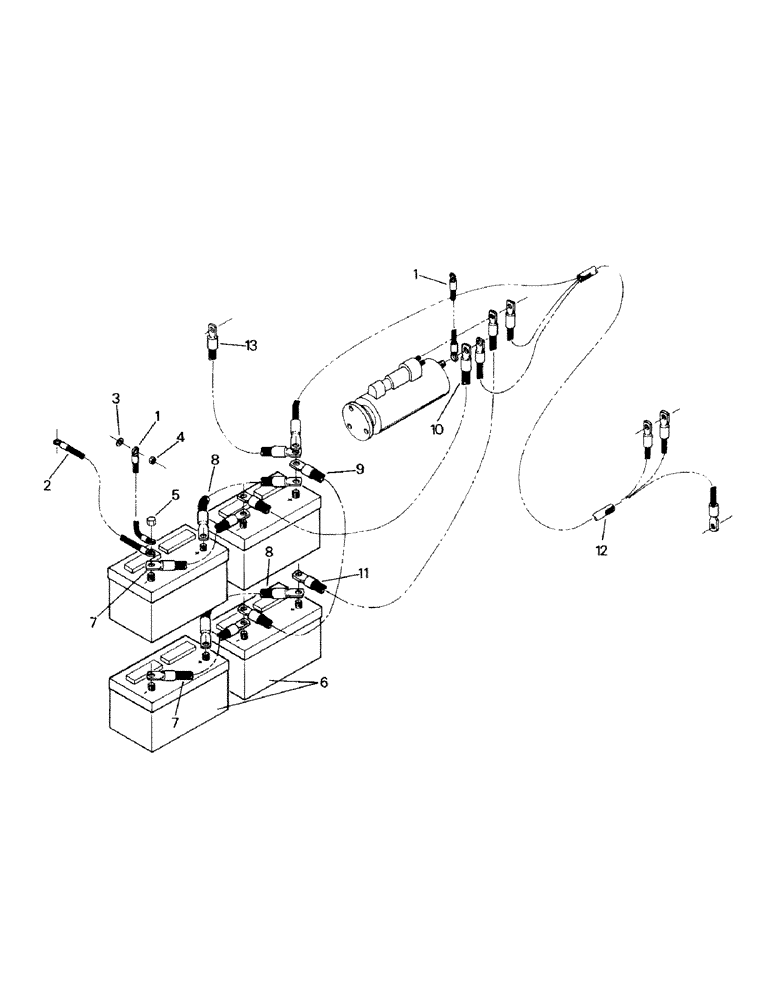

Запчасти Case IH ST470 (02-05) - STARTER AND BATTERY, ELECTRICAL (06) - ELECTRICAL

1

47-4591

HARNESS

Wire Assy - Ground

2шт.

2

47-4592

HARNESS

Wire Assy - Cab Ground

1шт.

3

19-105

WASHER,1/4", SAE

2шт.

4

19-76

NUT,1/4"-20, G5

1шт.

5

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Battery Terminal 3/8"-16, GB

8шт.

6

2-7000

WET BATTERY

(01-6319)

4шт.

Superseded old part number can be used for all models, but order new part number when stock is depleted.

1шт.

7

47-4774

CABLE

Battery Cable

2шт.

8

47-4775

Battery Cable

2шт.

9

47-4596

CABLE

Battery Cable

1шт.

10

47-4598

CABLE

Battery Cable, with Cummins engine

1шт.

1-8188

Battery Cable, with Cat engine B

1шт.

11

47-4597T1

Battery Cable (47-4597) with Cummins engine

1шт.

Superseded old part number can be used for all models, but order new part number when stock is depleted.

1шт.

1-8565

Battery Cable,with Cat engine B

1шт.

12

47-4685

HARNESS

Battery Cable Harness, with Cummins engine

1шт.

1-8566

Battery Cable Harness, with Cat engnie B

1шт.

13

1-8773

CABLE

Battery to Junction Block Cable

1шт.

This cable is only used on models with the single-plug Packard-style connectors. On models with the 6-plug bulkhead-style connectors, this wire is incorporated into the engine wire harness.

1шт.

31-1243

Cable Protection Hose (not shown) (inserted in frame to protect battery cables)

1шт.

32-343

MOUNTING CLIP

Clamp (not shown) (attached to engine bell housing to hold battery cables) (Cat Eng only)

1шт.
